RH1499M
RH1499M
製造中10MHz, 6V/µs, Quad Rail-to-Rail Input and Output Precision C-Load Op Amp
- 製品モデル
- 3
- 1Ku当たりの価格
- 最低価格：$265.78
Viewing:
製品の詳細
- MIL-PRF-38535 Class V Compliant Version - 5962R1325101VDA
- Rail-to-Rail Input and Output
- 800μV Max VOS from V+ to V–
- Gain-Bandwidth Product: 10MHz
- Slew Rate: 4.5V/μs
- Low Supply Current per Amplifier: 1.7mA
- Input Offset Current: 65nA Max
- Input Bias Current: 650nA Max
- Low Input Noise Voltage Density: 12nV/√Hz Typ
- Wide Supply Range: 5V to ±15V
- Large Output Drive Current: 24mA with 5V supply
- Stable for Capacitive Loads Up to 10,000pF
Radiation Performance
- Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- 100kRad (Si), per condition D at 10mRads(Si)/sec
- ELDRS Pass 100kRad(Si)
- Displacement Damage Defect (DDD) up to 1E12 Neutrons/cm2 (please refer to RH1498 DDD Report)
- Characterized for Single Event Effects up to 117.5 MeV.cm2/mg (please refer to RH1498 SEE Report)
The RH1499 is a quad, rail-to-rail input and output precision C-Load™ op amp with a 10MHz gain-bandwidth product and a 6V/μs slew rate.
The RH1499 is designed to maximize input dynamic range by delivering precision performance over the full supply voltage. Using a patented technique, the input stages of the RH1499 are trimmed, one at the negative supply and the other at the positive supply. The resulting guaranteed common mode rejection is much better than other rail-to-rail input op amps. When used as a unity-gain buffer in front of single supply 12-bit A-to-D converters, the RH1499 is guaranteed to add less than 1LSB of error even in single 5V supply systems.
With 110dB of supply rejection, the RH1499 maintains its performance over a supply range of 4.5V to 36V. The inputs can be driven beyond the supplies without damage or phase reversal of the output. These op amps remain stable while driving capacitive loads up to 10,000pF.
The wafer lots are processed to our in-house Class S flow to yield circuits usable in stringent military and space applications.
Applications- Driving A-to-D Converters
- Active Filters
- Rail-to-Rail Buffer Amplifiers
- Low Voltage Signal Processing
ドキュメント
データシート 1
信頼性データ 1
アプリケーション・ノート 1
管理された図面 1
放射線レポート 8
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|

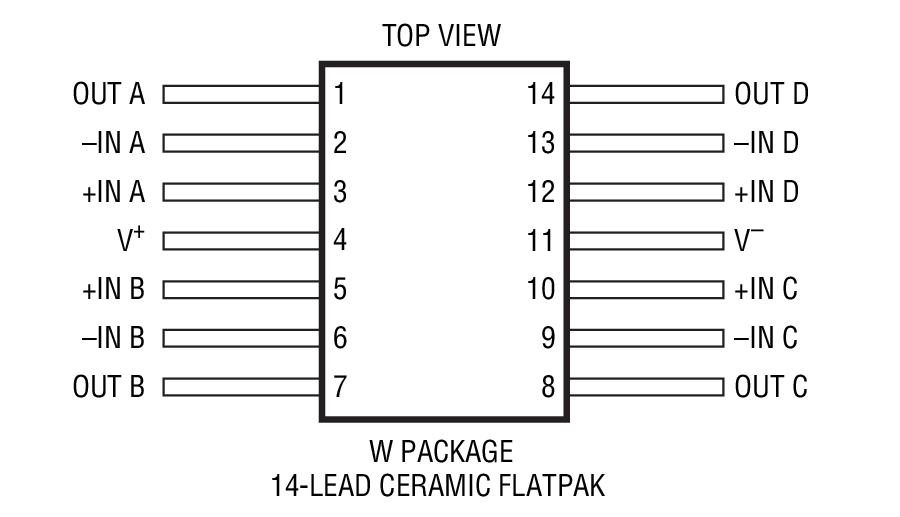

| 5962R1325101VDA | 14-Lead Flatpak (Metal Sealed Bottom Braised Hermetic) | ||
| RH1499MW | 14-Lead Flatpak (Metal Sealed Bottom Braised Hermetic) | ||
| RH1499MW-EMX | CER. FLATPACK WITH LEADS |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
8 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT |
||
| 5962R1325101VDA | 製造中 | |
| RH1499MW | 製造中 | |
|
9 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales. |
||
| 5962R1325101VDA | 製造中 | |
| RH1499MW | 製造中 | |
|
12 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview |
||
| 5962R1325101VDA | 製造中 | |
| RH1499MW | 製造中 | |
|
5 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products) |
||
| RH1499MW | 製造中 | |
これは最新改訂バージョンのデータシートです。
