RH1013M
製造中Dual Precision Operational Amplifier
- 製品モデル
- 6
- 1Ku当たりの価格
- 最低価格：$213.92
製品の詳細
- MIL-PRF-38535 Class V Compliant Version – 5962R88760
- Guaranteed Performance Over –55 to +125°C
- Input Offset Voltage: 550µV
- Low Offset Voltage Drift: 2.5µV/°C
- Low Offset Current: 20nA
- Gain Bandwidth Product: 500kHz
- Minimum Slew Rate: 0.2V/mS
- Low Current Noise: Typically 0.07pA/√Hz
- Maximum Supply Current: 0.7mA per Amplifier
- Supply Voltage ±22V (Absolute Maximum)
- Differential Input Voltage ±30V (Absolute Maximum)
- Single Supply Operation

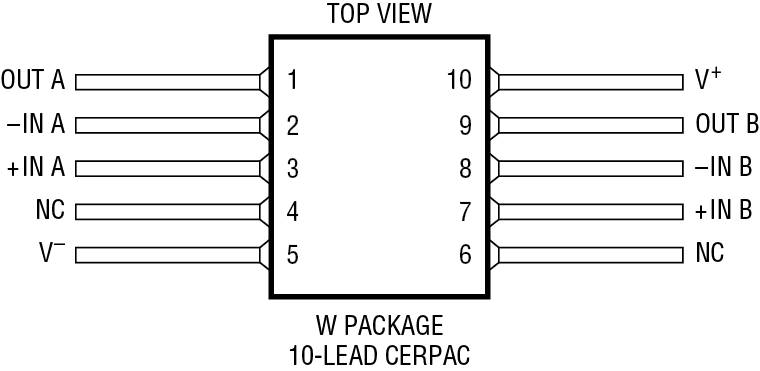

- Available in CERPAC, Ceramic DIP, Metal Can or as Unpackaged Dice
Radiation Performance
- Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- 50kRad (Si), per condition D at 10mRads(Si)/sec
- ELDRS Pass 50kRad(Si)
- Please Also Refer to RH1014 Web Page for Radiation Reports
The RH1013M is the first precision dual operational amplifier which directly upgrades designs in the industry standard 8-pin DIP LM158/MC1558/OP-221 pin configuration. Low offset voltage (300µV max), low drift (≤2.5µV/°C), low offset current (≤1.5nA), and high gain (1.2 million min) combine to make the RH1013M two truly precision amplifiers in one package.
The wafer lots are processed to Analog Devices’ in-house Class S flow to yield circuits usable in stringent military applications.
Applications
- Precision Instrumentation Amplifiers
- Strain Gauge Signal Conditioners
- Thermocouple Amplifiers
- 4mA to 20mA Current Loop Transmitters
- Multiple Limit Threshold Detection
- Active Filters
- Multiple Gain Blocks
ドキュメント
データシート 1
信頼性データ 2
アプリケーション・ノート 1
管理された図面 2
仕様に関するお知らせ 1
放射線レポート 6
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| 5962R8876003V9A | CHIPS OR DIE | ||
| 5962R8876003VHA | CERPAK(HERM CER SRF MOUNT) | ||
| RH1013DICE | CHIPS OR DIE | ||
| RH1013MH | ROUND HEADER/METAL CAN | ||
| RH1013MW | CERPAK(HERM CER SRF MOUNT) | ||
| RH1013MW-EMX | CERPAK(HERM CER SRF MOUNT) |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
8 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT |
||
| 5962R8876003V9A | 製造中 | |
| 5962R8876003VHA | ||
| RH1013MH | 製造中 | |
| RH1013MW | ||
|
10 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales. |
||
| 5962R8876003V9A | 製造中 | |
| RH1013DICE | ||
|
9 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales. |
||
| 5962R8876003V9A | 製造中 | |
| 5962R8876003VHA | ||
| RH1013DICE | ||
| RH1013MW | ||
|
12 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview |
||
| 5962R8876003VHA | ||
| RH1013MW | ||
|
5 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products) |
||
| RH1013MH | 製造中 | |
| RH1013MW | ||
|
10 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales. |
||
| RH1013MH | 製造中 | |
|
7 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview |
||
| RH1013MH | 製造中 | |
これは最新改訂バージョンのデータシートです。
