MAX40070

新規設計に推奨

High Voltage, Low Power Comparator

Micropower Comparator Offers Industry's Smallest Package (0.848mm x 1.588mm) and Lowest Power

製品モデル: 2
1Ku当たりの価格: 最低価格：$0.75

Viewing:

製品情報

Low Operating Current of 16µA (typ)
Input Voltage Range from 0V to 27.5V
2µs Propagation Delay
Internal High-Precision Voltage Reference
Internal Current Source for Customized Thresholds and Hysteresis with External Resistors
Open-Drain Output
Tiny 8-Bump WLP (0.35mm pitch) and TDFN (2mm x 2mm) Packages
-40°C to 125°C Temperature Range

MAX40070/MAX40072 is a family of single micropower comparators ideal for a wide variety of battery operated devices in computing, industrial, medical, and IoT applications that have extremely tight board space and power constraints while requiring high levels of precision. These comparators are offered with an open-drain output in a small 8-bump (0.35µm pitch) wafer level package as well as a TDFN package.

The MAX40070/MAX40072 family features a rail-to-rail input voltage range of 0V to +27.5V on IP pin, independent of the supply voltage. It also features internal filtering to provide high EMI immunity.

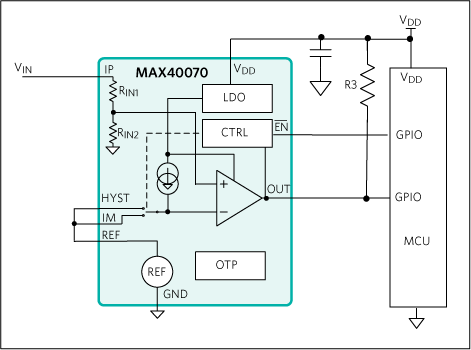

The MAX40070/MAX40072 uses a high-precision integrated reference voltage (1.6V) as well as a precision internal current source that allows customized comparator threshold and hysteresis by using two external resistors.

These comparators consume only 16µA (typ) supply current with a propagation delay of 2µs. They all operate over the extended -40°C to +125°C temperature range.

Applications

Notebook and Tablet Computers
Portable Medical Devices
Industrial Equipment
IoT

製品モデル: 2
1Ku当たりの価格: 最低価格：$0.75

ドキュメント

データシート 1

MAX40070-MAX40072: High Voltage, Low Power Comparator Data Sheet (Rev.0) 04/18/2022

アナログ・デバイセズは、最高レベルの品質と信頼性を満たす製品を供給することを常に最重要視しています。これを実現するため、製品、プロセス設計、更には製造プロセスに対しあらゆる観点から品質と信頼性のチェックを行っています。アナログ・デバイセズでは出荷製品に対する「ゼロ・ディフェクト」を常に目指しています。詳細については、アナログ・デバイセズの品質および信頼性プログラム、認証のページを参照してください。

製品モデル	ピン／パッケージ図	資料	CADシンボル、フットプリント、および3Dモデル
MAX40070ANA16+	WLCSP	Material Declaration Reliablity Data パッケージ関連資料	Ultra Librarian SamacSys
MAX40070ANA16+T	WLCSP	Material Declaration Reliablity Data パッケージ関連資料	Ultra Librarian SamacSys

これは最新改訂バージョンのデータシートです。

ソフトウェア・リソース

必要なソフトウェア／ドライバが見つかりませんか？

ドライバ／ソフトウェアをリクエスト

ツールおよびシミュレーション

SPICEモデル 1

MAX40070 IBIS Model SPICE Macro Model

評価用キット

Evaluation Kit for the MAX40070

今すぐ購入詳細を表示

機能と利点

Low Operating Current of 20µA (typ)
Input Voltage Range = 0V to 24.2V
< 2µs Propagation Delay
Internal High-Precision Voltage Reference
Internal Current Source for Customized Thresholds and Hysteresis with External Resistors
Open-Drain Output
Tiny 8-Bump WLP (0.35mm Pitch) and TDFN (2mm x 2mm) Packages Selectable
-40°C to 125°C Temperature Range
Proven PCB Layout
Fully Assembled and Tested

製品詳細

The MAX40070 evaluation kit (EV kit) is fully assembled and tested PC board that evaluates the MAX40070 single comparator with internal voltage reference. The MAX40070 EV kit has an open-drain output. The EV kit comes with a MAX40070ANA16+ installed that operates of a VDD supply between 3.1V and 36V, an internal reference voltage of 1.6V, and has a wide 0V to +24.2V input voltage (IP) range. The EV kit demonstrates the MAX40070ANA16+ in a tiny, 1.008mm x 1.428mm, 8-bump wafer-level package (WLP) with 0.35mm bump spacing. The EV kit can be used to evaluate the entire family of MAX40070 with 8-bump WLP option.
