MAX22212

新規設計に推奨

36V, 7.6A High Current Single H-Bridge with Integrated Current Sense

製品モデル
4
1Ku当たりの価格
最低価格:$1.78
利用上の注意

アナログ・デバイセズ社は、提供する情報が正確で信頼できるものであることを期していますが、その情報の利用に関して、あるいはその利用によって生じる第三者の特許やその他の権利の侵害に関して一切の責任を負いません。また、アナログ・デバイセズ社の特許または特許の権利の使用を明示的または暗示的に許諾するものでもありません。仕様は予告なしに変更する場合があります。本紙記載の商標および登録商標は、各社の所有に属します。


本データシートの英語以外の言語への翻訳はユーザの便宜のために提供されるものであり、リビジョンが古い場合があります。最新の内容については、必ず最新の英語版をご参照ください。

なお、日本語版のデータシートは基本的に「Rev.0」(リビジョン0)で作成されています。そのため、英語版が後に改訂され、複数製品のデータシートがひとつに統一された場合、同じ「Rev.0」の日本語版のデータシートが異なる製品のデータシートとして表示されることがあります。たとえば、「ADM3307E」の場合、日本語データシートをクリックすると「ADM3311E」が表示されます。これは、英語版のデータシートが複数の製品で共有できるように1本化され、「ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E」(Rev.G)と改訂されたからで、決して誤ってリンクが張られているわけではありません。和文化されたデータシートを少しでも有効に活用していただくためにこのような方法をとっておりますので、ご了解ください。

Viewing:

製品の詳細

  • One H-Bridge with +36V Voltage Rating
    • Total RDS(ON) (High-Side + Low-Side): 125mΩTypical (TA = 25°C)
  • Current Ratings per H-Bridge (Typical at TA = 25°C):
    • IFS_MAX = 7.6A (Max Full-Scale Current Setting forInternal Current Drive Regulation)
    • IRMS = 4ARMS Recommended Maximum RMS Current
  • Integrated Current Control
    • Full-Scale DAC Current Programmable with External Resistor
    • Internal Current Sensing (ICS) Eliminates ExternalBulky Resistors and Improves Efficiency
    • Current Drive Regulation Monitor Output Pin (CDR Pin)
    • Integrated DAC Sets the Output Current from 16Levels
    • Four Decay Modes Supported (Slow, Fast, and Two Mixed Modes)
    • Fixed OFF Time Configurable with External Resistor
  • Current Sense Output (Current Monitor)
  • Fault Indicator Pin (FAULT)
  • Low Power Mode (Sleep Mode)
  • Protections
    • Overcurrent Protection for each Channel (OCP)
    • Undervoltage Lockout (UVLO)
    • Thermal Shutdown TJ = 165°C (TSD)
  • TQFN32 5mm x 5mm Package or in a TSSOP284.4mm x 9.7mm Package
MAX22212
36V, 7.6A High Current Single H-Bridge with Integrated Current Sense

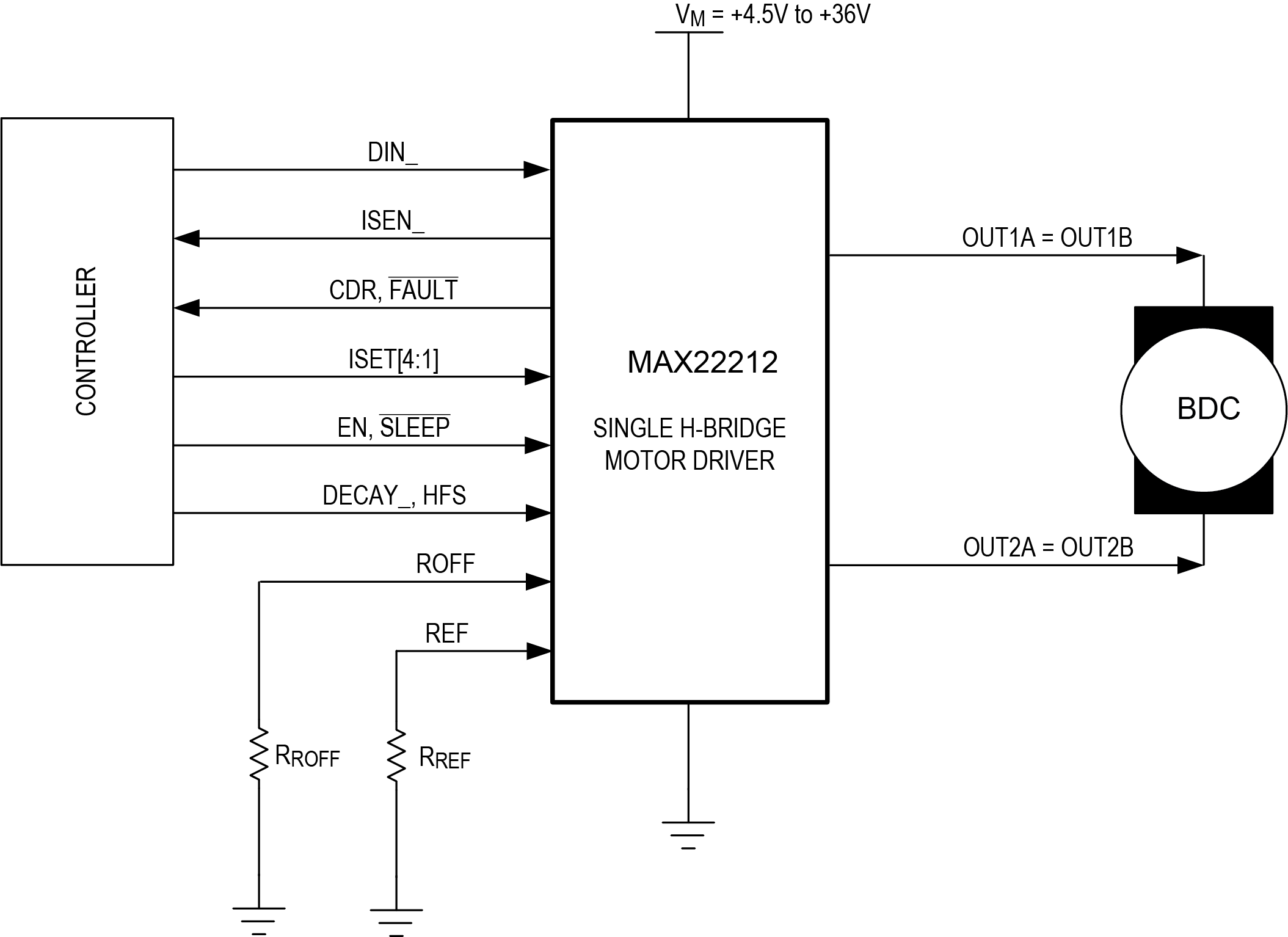

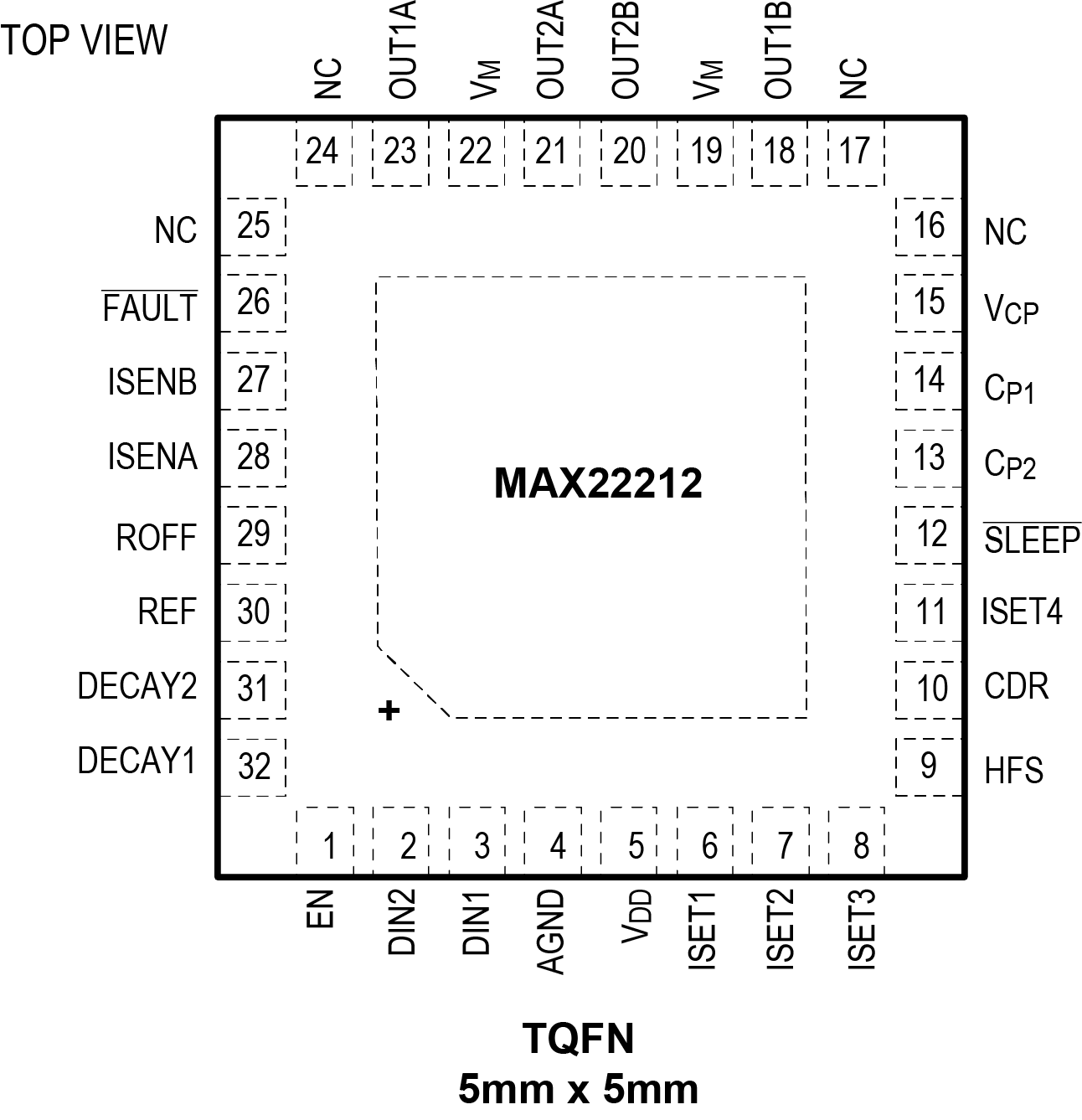

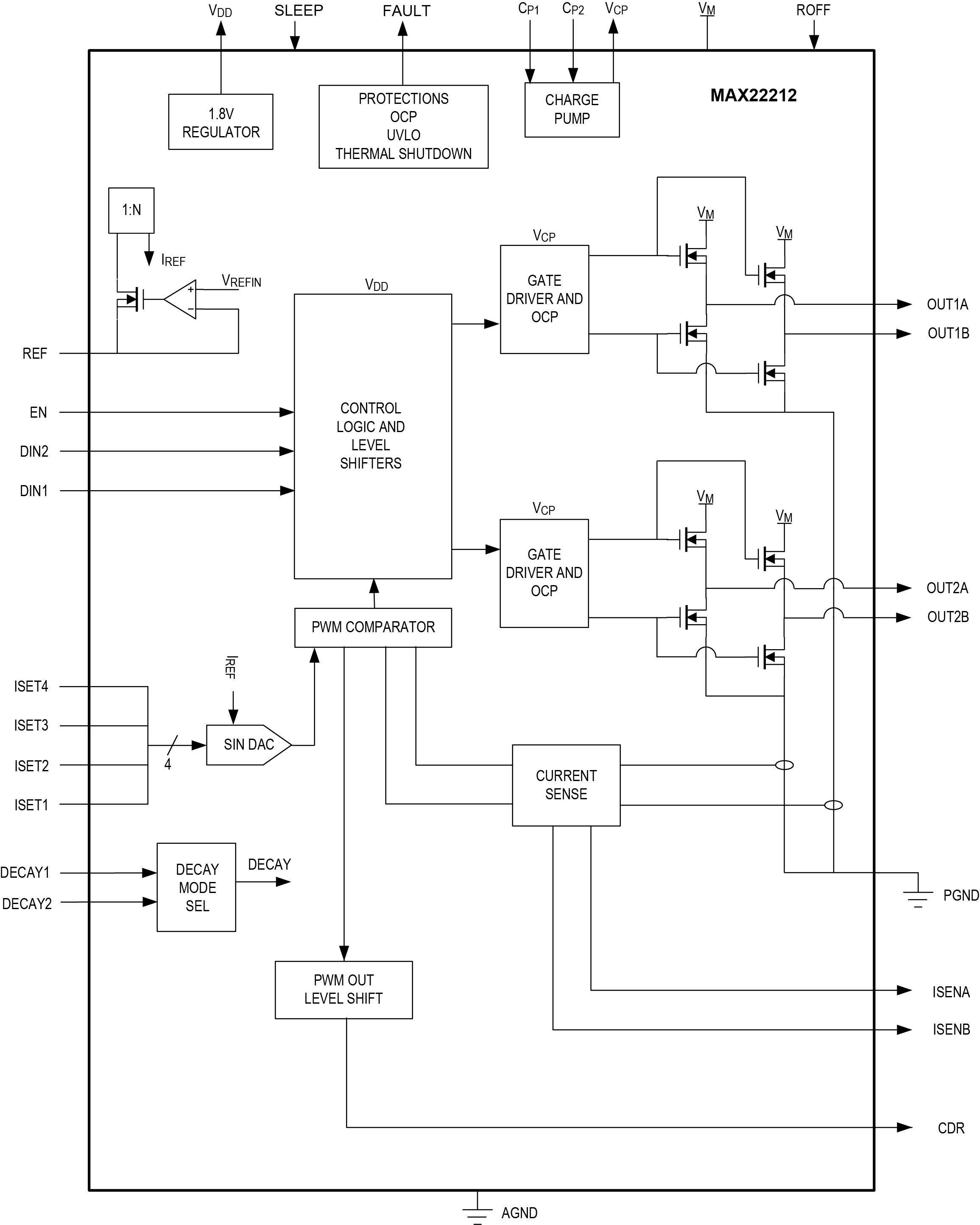

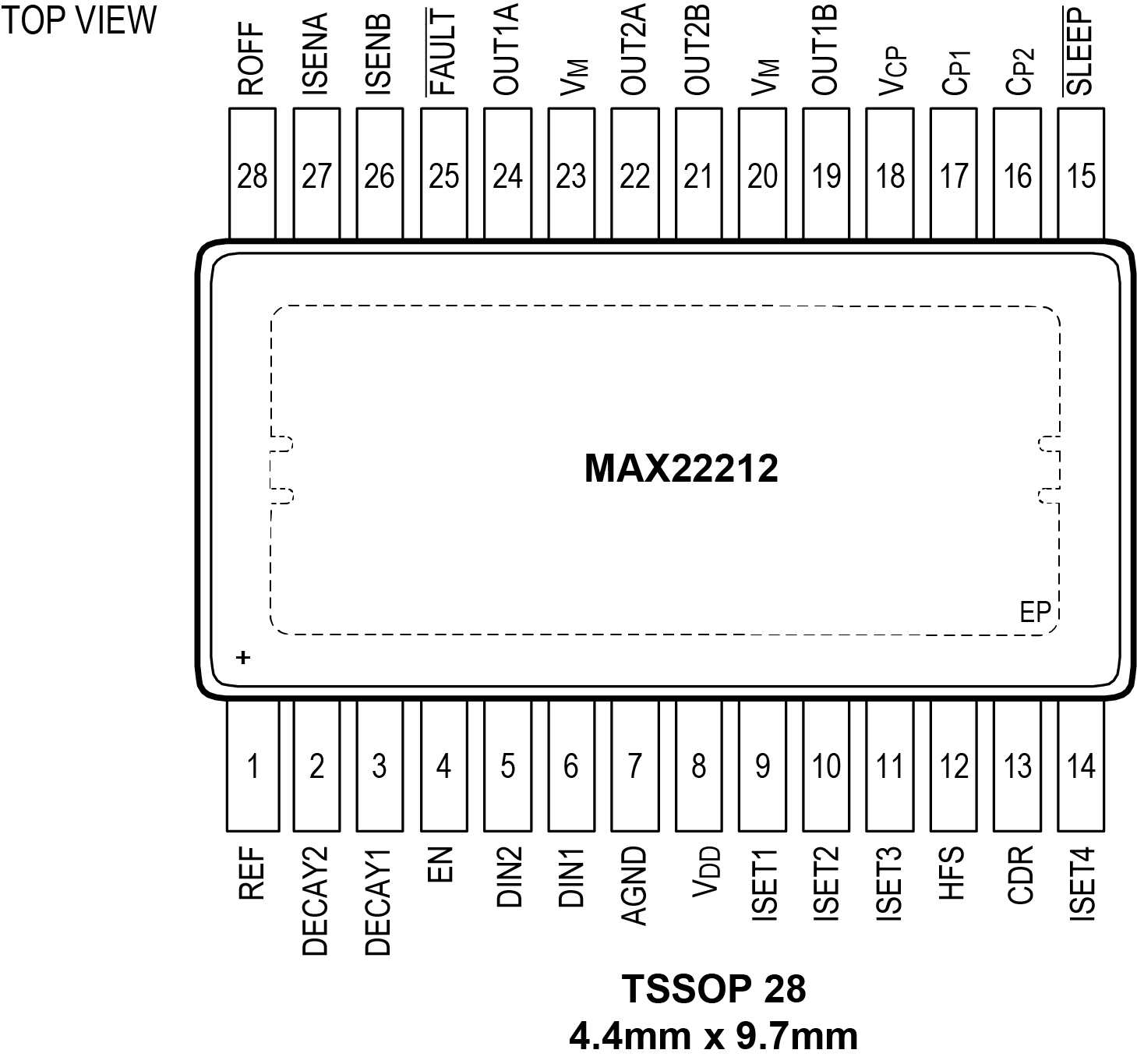

MAX22212 Functional Diagram MAX22212 Simplified Block Diagram MAX22212 TQFN Pin Configuration MAX22212 TSSOP Pin Configuration
myAnalogに追加

myAnalogの製品セクション(通知受け取り)、既存/新規プロジェクトに製品を追加する。

新規プロジェクトを作成
質問する
サポート

アナログ・デバイセズのサポート・ページはアナログ・デバイセズへのあらゆるご質問にお答えするワンストップ・ポータルです。


ドキュメント

さらに詳しく
myAnalogに追加

myAnalogの製品セクション(通知受け取り)、既存/新規プロジェクトに製品を追加する。

新規プロジェクトを作成

評価用キット

eval board
MAX22212EVKIT

Evaluation Kit for MAX22212

機能と利点

  • Easy Evaluation of the MAX22212
  • Adjustable tOFF Time Using On-Board Potentiometer
  • Configurable Current Drive Regulation (CDR)
  • On-Board +3.3V Regulator to Drive the MAX22212 Logic Inputs
  • Test Points and Headers to Interface with the MAX22212 Logic Inputs and Current Sense Outputs
  • Fully Assembled and Tested
  • Proven PCB Layout

製品詳細

The MAX22212 evaluation kit (EV kit) provides a proven design to evaluate the +36V, 7.6A single H-bridge MAX22212 motor driver. The MAX22212 drives a single brushed DC motor. The MAX22212 IC integrates very low impedance FETs in a single H-bridge configuration with a typical RON (high-side + low-side) of 0.125Ω. The EV kit features headers, test points, and terminal blocks to provide an interface to the MAX22212 motor driver. The MAX22212’s integrated current sense output ISENA and ISENB can be monitored using test points or connected to an external ADC using header J4. The MAX22212 features embedded current drive regulation (CDR) with adjustable chopping current (IFS) and adjustable current limit off time (tOFF). The MAX22212 EV kit operates from an input voltage of +4.5V to +36V (VM). An on-board +3.3V regulator U2 (MAX6765TTSD2+) provides a regulated +3.3V to drive the MAX22212 logic inputs. Terminal blocks J1 and J5 are installed to provide an interface for the high voltage, high current VM inputs, and motor driver outputs OUT1_ and OUT2_.

MAX22212EVKIT
Evaluation Kit for MAX22212

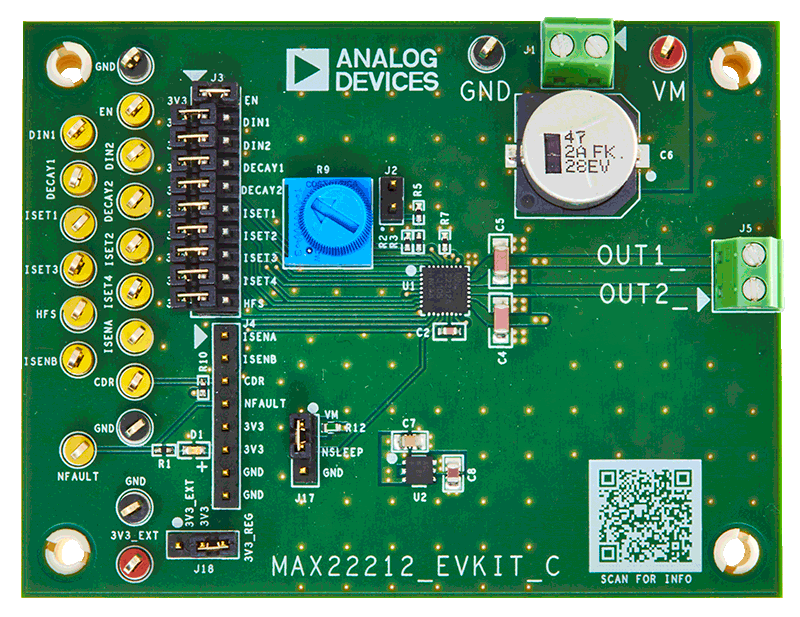

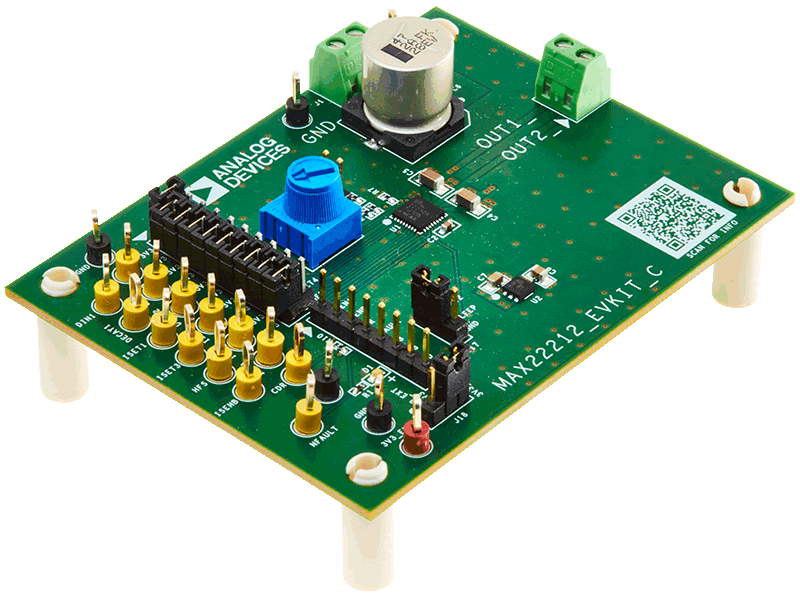

MAX22212EVKIT Board Photo Angle View MAX22212EVKIT Board Photo Top View MAX22212EVKIT Board Photo Bottom View
