LTC1706-63
製造中5-Bit VID Voltage Programmer for Sun CPUs
- 製品モデル
- 2
- 1Ku当たりの価格
- 最低価格:$2.48
製品情報
- Programs Regulator Output Voltage Range from 1.025V to 1.4125V in 12.5mV Steps
- Programs a Wide Range of ADI's DC/DC Converters with a 0.6V Reference
- ±0.35% Accurate Output Voltage
- Built-In 40k Pull-Up Resistors on VID Inputs

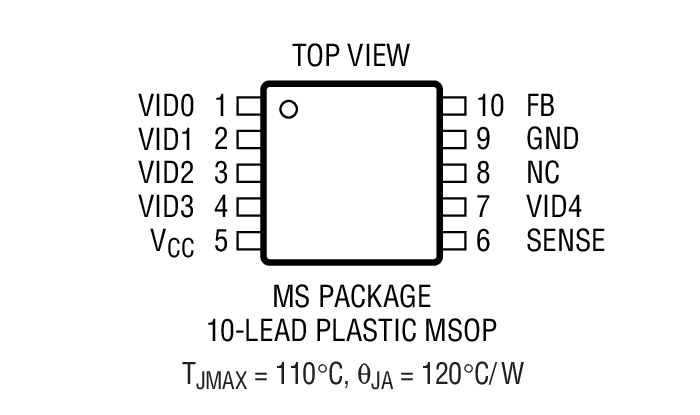

- Available in MSOP-10 Package

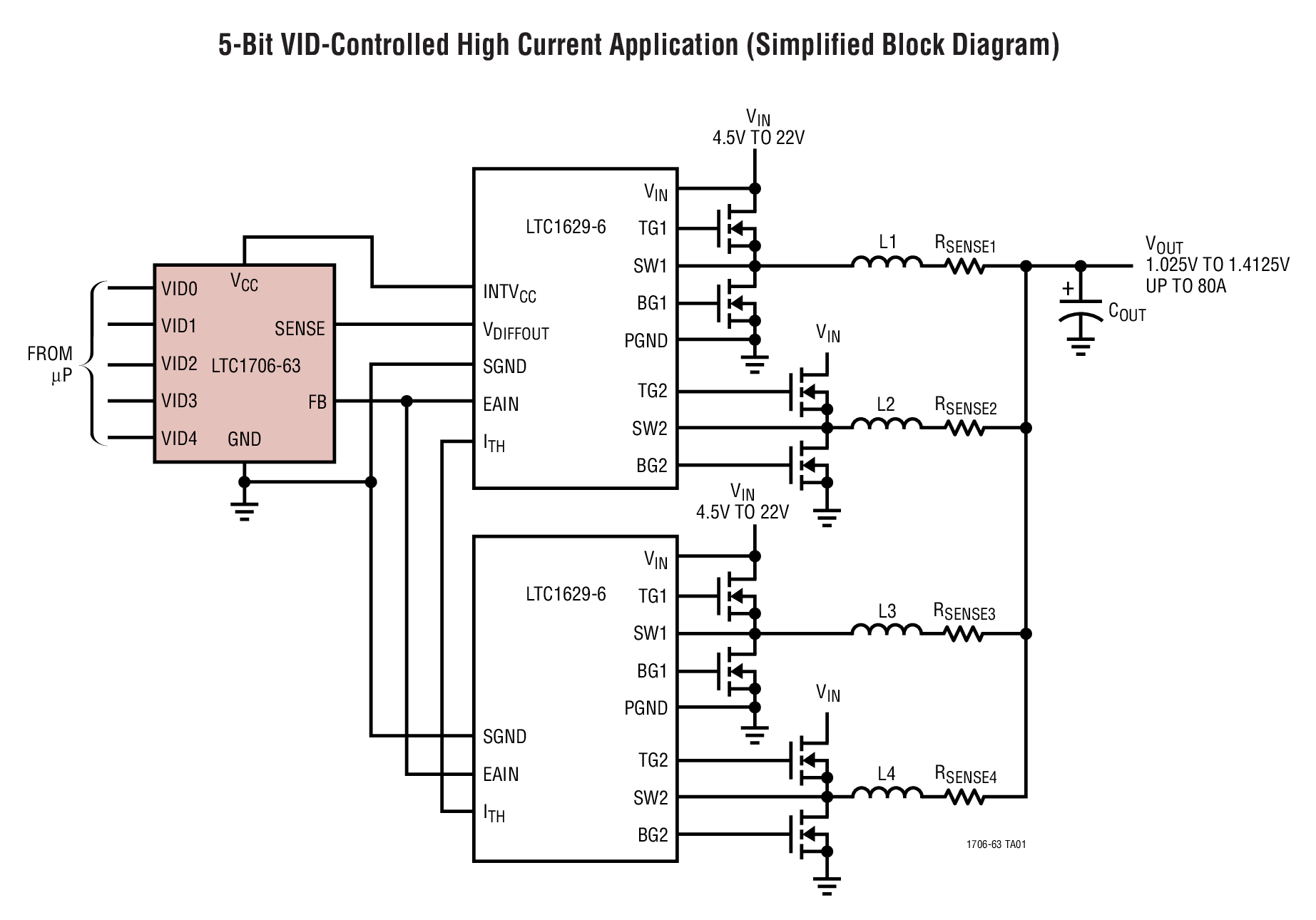

The LTC1706-63 is a precision, digitally programmed, resistive ladder which adjusts the output of any 0.6V referenced regulator. Depending on the state of the five VID inputs, an output voltage between 1.025V and 1.4125V is programmed in 12.5mV increments.
The LTC1706-63 is designed specifically to program ADI's entire family of DC/DC converters with on board 0.6V references. Please see the related parts list at the end of the data sheet.
For a 2-phase synchronous controller with on-board LTC1706-63, see the LTC3819.
Applications
- Sun™ Processor Power Supply
- Workstations and Servers
- Large Memory Array Supply
ドキュメント
データシート 1
信頼性データ 1
| 製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| LTC1706EMS-63#PBF | 10-Lead MSOP | ||
| LTC1706EMS-63#TRPBF | 10-Lead MSOP |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
10 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package |
||
| LTC1706EMS-63#PBF | 製造中 | |
| LTC1706EMS-63#TRPBF | 製造中 | |
|
4 18, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices |
||
| LTC1706EMS-63#PBF | 製造中 | |
| LTC1706EMS-63#TRPBF | 製造中 | |
|
2 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LTC1706EMS-63#PBF | 製造中 | |
| LTC1706EMS-63#TRPBF | 製造中 | |
