HMC774
製造中止HMC774 / HMC774LC3B

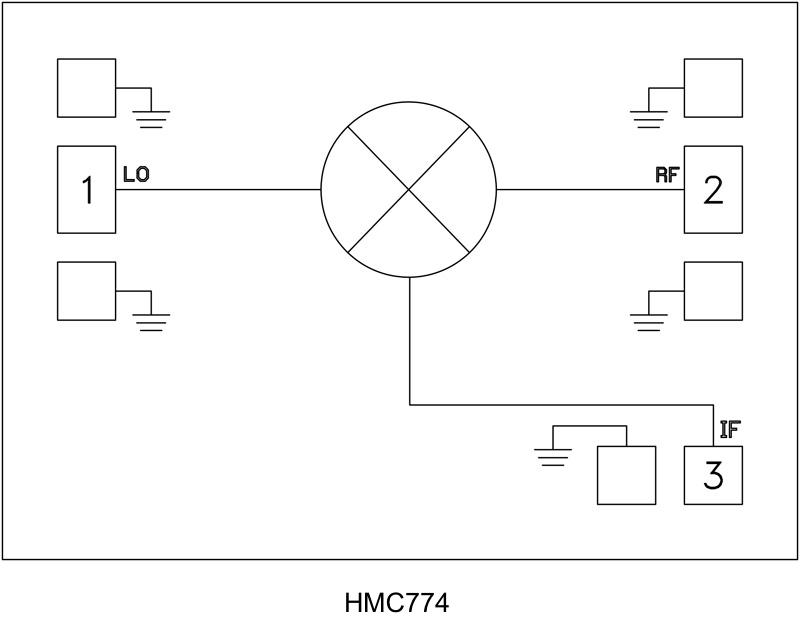

HMC774:GaAsmonolithic microwave integrated circuit (MMIC) fundamental mixer chip,7 GHz to 43 GHz.

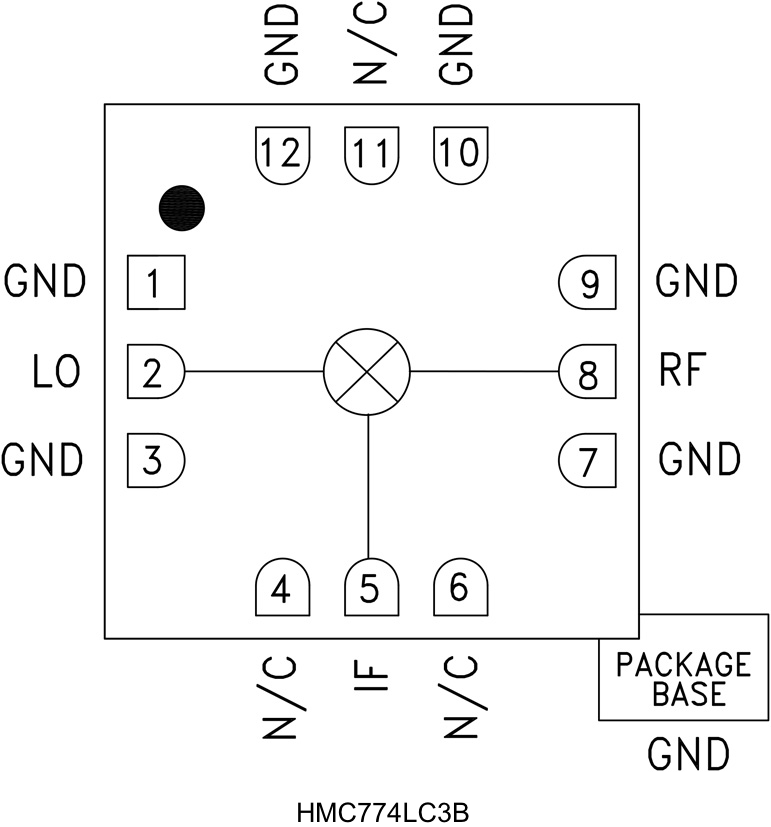

HMC774LC3B: GaAs MMIC surface mount technology (SMT), 7 GHz to 34 GHz
- 製品モデル
- 4
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- Passive: no dc bias required
- High input IP3: 22 dBm
- High local oscillator (LO) to radio frequency (RF) isolation: 35 dB
- Wide intermediate frequency (IF) bandwidth
- HMC774: dc to 10 GHz
- HMC774LC3B: dc to 8 GHz
- Upconversion and downconversion applications (HMC774)
- Die size (HMC774): 1.36 mm × 0.96 mm × 0.1 mm
- 12-Lead 3 mm × 3 mm SMT package: 9 mm2 (HMC774LC3B)
The HMC774 devices are general purpose double-balanced mixers available in a chip (HMC774) and a leadless RoHS compliant SMT package (HMC774LC3B), both of which can be used as an upconverter or downconverter. The HMC774 operates between 7 GHz and 43 GHz, and the HMC774LC3B operates between 7 GHz and 34 GHz. These mixers require no external components or matching circuitry. The HMC774 devices provide excellent LO to RF and LO to IF suppression due to optimized balun structures. The HMC774 operates with LO drive levels greater than 13 dBm, and the HMC774LC3B operates with LO drive levels greater than 15 dBm. The HMC774 wideband mixer exhibits consistent conversion gain and compression across its bandwidth. The HMC774LC3B eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.
Applications
- Point-to-point radios
- Point-to-multipoint radios
- Very small aperture terminal (VSAT)
- Test equipment and sensors
- Military end use
ドキュメント
データシート 2
品質関連資料 2
テープ＆リール仕様 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| HMC774 | CHIPS OR DIE | ||
| HMC774LC3B | 12-Lead LCC (3mm x 3mm w/ EP) | ||
| HMC774LC3BTR | 12-Lead LCC (3mm x 3mm w/ EP) | ||
| HMC774LC3BTR-R5 | 12-Lead LCC (3mm x 3mm w/ EP) |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
| 該当なし | ||
|
1 11, 2017 - 16_0010 Discontinuance of Select RF and Microwave Products |
||
| HMC774 | 製造中止 | |
|
3 3, 2016 - 16_0010 Discontinuance of Select RF and Microwave Products |
||
| HMC774LC3B | 最終販売 | |
| HMC774LC3BTR | 最終販売 | |
| HMC774LC3BTR-R5 | 製造中止 | |
これは最新改訂バージョンのデータシートです。
ハードウェア・エコシステム
| 製品モデル | 製品ライフサイクル | 詳細 |
|---|---|---|
| HMC774ALC3B | 7 GHz ～ 34 GHz、MMIC、ダブル・バランスド・ミキサー | |
| HMC774A-Die | 7 GHz ～ 40 GHz、GaAs、 MMIC、ダブルバランスド・ミキサー |
評価用キット
HMC774LC3B Evaluation Board
