HMC690
製造中止10 Gbps Transimpedance Amplifier Chip
- 製品モデル
- 1
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- Supports data rates up to 11.3 Gbps
- 1.25 Kohm differential gain
- +3.3 V single power supply
- AC or DC coupled outputs
- 11 pA/√Hz input referred noise density
- 3 mA p-p overload
- Average input power monitoring
- Output offset adjustment
- Die Size: 0.68 x 1.14 x 0.18 mm

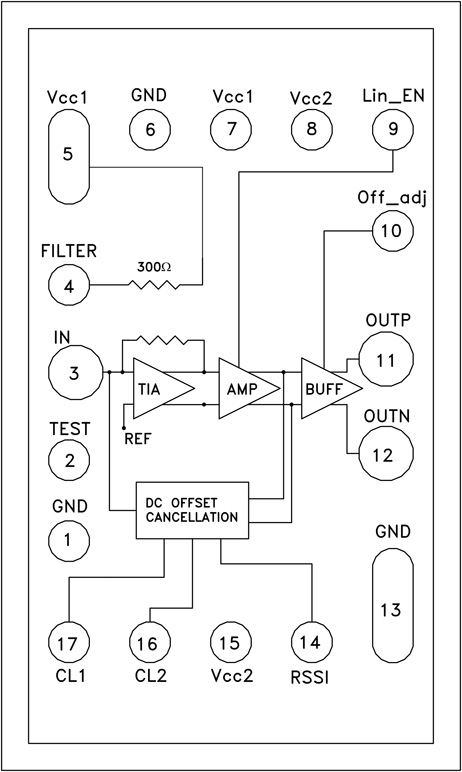

The HMC690 is 10 Gbps transimpedance amplifier designed for SONET OC-192 / SDH STM-64, 10GbE and 10Gbps systems employing optical amplifiers. It supports data rates up to 11.3 Gbps. This amplifi er provides a differential output voltage that is proportional to an applied current at its input port. This current is typically provided by a photodiode. Operating from a single +3.3V supply, the HMC690 features low input referred noise, and is designed for driving a CDR or a typical transceiver directly.
The RSSI output can be used for monitoring average input power. This device also features a DC offset control, which enables output signal level adjustment for asymmetrical signals. Additional features include an integrated 300Ω filter resistor for photo-diode supply voltage and an extended linear range option.
Applications
- SONET OC-192 and SDH STM-64 Transponders
- 10 Gbps Ethernet
- Broadband Instrumentation
- Short, intermediate and long reach optical receiver modules
ドキュメント
製造中止品のデータシート 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| HMC690 | CHIPS OR DIE |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
12 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices |
||
| HMC690 | 製造中止 | |
これは最新改訂バージョンのデータシートです。
