HMC256
製造中止I/Q Mixer Chip, 5.9 - 12 GHz
製品の詳細
- High Image Rejection: >30 dB
- Input IP3: +18 dB
- Wideband IF: DC to 1.5 GHz
- Small Size: 1.6 x 1.3 x 0.1 mm

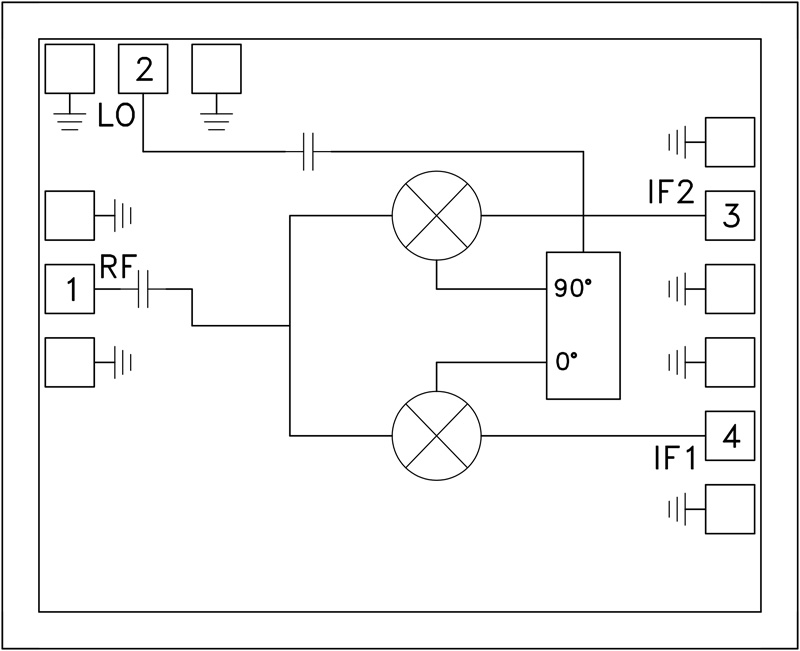

The HMC256 chip is a compact, 2.08 mm², I/Q Mixer MMIC which can be used as an Image Reject Mixer (IRM) or Single Side Band (SSB) upconverter. The chip utilizes two standard Hittite double-balanced mixer cells and a Lange Coupler realized in GaAs MESFET technology. All data is with the chip in a 50 Ohm test fixture connected via 0.025 mm (1 mil) diameter wire bonds of minimal length <0.51 mm (<20 mils).
A low frequency quadrature hybrid was used to interface the MMIC IF ports to a 120 MHz IF USB output. This provides an example of the I/Q Mixer in an IRM application. The IF may be used from DC to 1.5 GHz. This I/Q Mixer is a more reliable, much smaller replacement to hybrid drop-in style I/Q Mixer assemblies.
Applications
- Microwave Radio & VSAT
- Test Instrumentation
- Military Radios Radar & ECM
- Space
推奨代替製品
I/Q ミキサー、広帯域、6 GHz ~ 26.5 GHz
ドキュメント
製造中止品のデータシート 1
これは最新改訂バージョンのデータシートです。
ソフトウェア・リソース
必要なソフトウェア/ドライバが見つかりませんか?
ドライバ/ソフトウェアをリクエストハードウェア・エコシステム
製品モデル | 製品ライフサイクル | 詳細 |
---|---|---|
HMC8191 | 新規設計に推奨 | I/Q ミキサー、広帯域、6 GHz ~ 26.5 GHz |
