HMC1024
製造中止1 Watt Power Amplifier Chip, 27.5 - 33.5 GHz
製品の詳細
- Saturated Output Power:
+31.5 dBm @ 29% PAE - High Output IP3: +40 dBm
- High Gain: 24 dB
- DC Supply: +6V @ 600 mA
- No External Matching Required
- Die Size: 2.79 x 1.3 x 0.1 mm

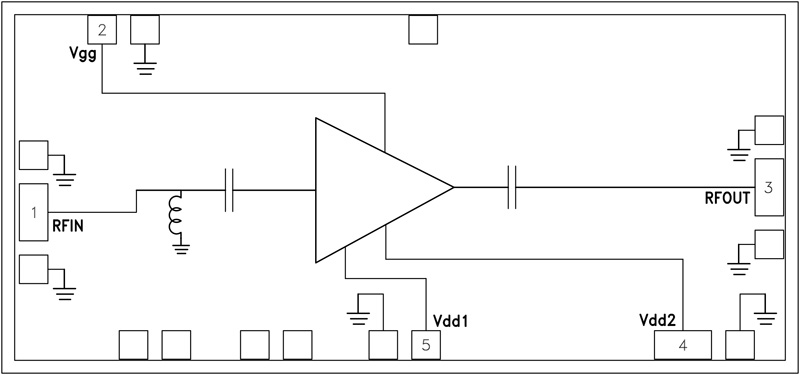

The HMC1024 is a four stage GaAs pHEMT MMIC 1 Watt Power Amplifier which operates between 27.5 and 33.5 GHz. The HMC1024 provides 24 dB of gain, +31.5 dBm of saturated output power, and 29% PAE from a +6V power supply. The HMC1024 exhibits excellent linearity and is optimized for high capacity point to point and point to multi-point radio systems. The amplifier configuration and high gain make it an excellent candidate for last stage signal amplification before the antenna. All data is taken with the chip in a 50 Ohm test fixture connected via (2) 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mil) length.
Applications
- Point-to-Point Radios
- Point-to-Multi-Point Radios
- VSAT & SATCOM
- Military & Space
ドキュメント
製造中止品のデータシート 1
これは最新改訂バージョンのデータシートです。
ハードウェア・エコシステム
| 製品モデル | 製品ライフサイクル | 詳細 |
|---|---|---|
| HMC1132LP5DE | 1 W、GaAs pHEMT MMIC パワー・アンプ、27 GHz ～ 32 GHz |
