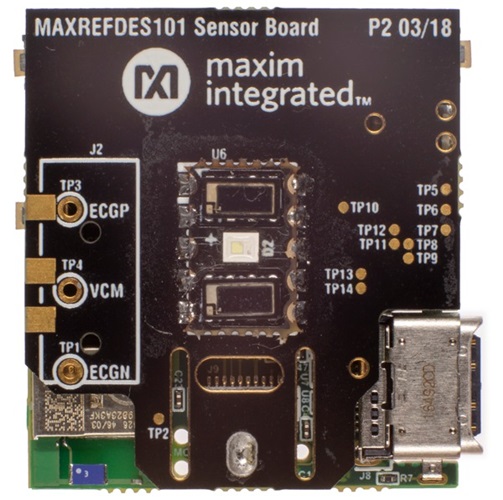

Board pictured here has been fully assembled and tested.

Overview

Design Resources

Design & Integration File

  • Hardware Files
Download Design Files 23.62 M

Evaluation Hardware

Part Numbers with "Z" indicate RoHS Compliance. Boards checked are needed to evaluate this circuit.

  • MAXREFDES101# EV Kit
Check Inventory & Purchase

Description

The MAXREFDES101 is a unique evaluation and development platform in a wrist-worn wearable form factor that demonstrates the functions of a wide range of Maxim’s products for health-sensing applications. This second-generation health sensor platform (a follow-on to the MAXREFDES100) integrates a PPG analog-front-end (AFE) sensor (MAX86141), a biopotential AFE (MAX30001), a human body temperature sensor (MAX30205), a microcontroller (MAX32630), a power-management IC (MAX20303), and a 6-axis accelerometer/gyroscope. The complete platform includes a watch enclosure and a biometric sensor hub with an embedded heart-rate algorithm (MAX32664). Algorithm output and raw data can be streamed through Bluetooth® to an Android® app or PC GUI for demonstration, evaluation, and customized development.

Features & Benefits

  • Photoplethysmography (PPG)
  • Biopotential measurement (ECG)
  • Skin temperature
  • Embedded heart-rate algorithm
  • Motion and rotation
  • Wearable watch form factor

Details Section

Introduction

The MAXREFDES101# is the second generation in our family of health sensor development platforms. Like the previous generation, MAXREFDES100#, the MAXREFDES101# enables quick evaluation of our portfolio of wearable products to significantly shorten the development time for custom fitness, health, and clinical applications.

The MAXREFDES101# platform includes the following key components

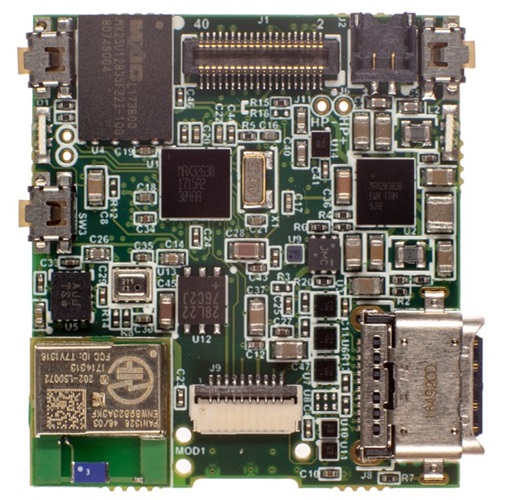

  • Micro board, which includes the MAX32630 microcontroller, MAX20303 power management IC (PMIC), dual mode Bluetooth, and 6-axis accelerometer and gyroscope

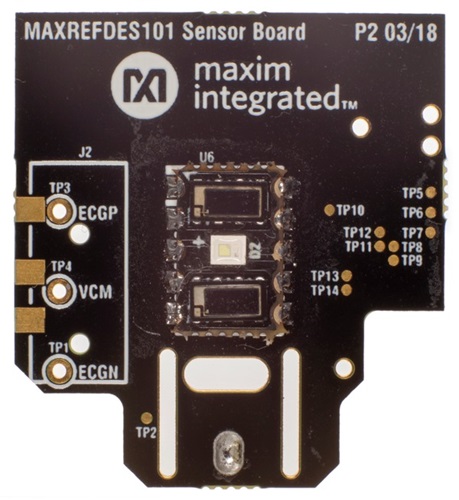

  • Sensor board, which includes the MAX86141 AFE, optical heart-rate sensor with one green LEDs and two photodiodes, MAX30001 ECG sensor, MAX30205 body temperature sensor, and MAX32664 biometric sensor hub with an embedded heart-rate algorithm
  • Pico adaptor board for use during a firmware upgrade for the micro board only

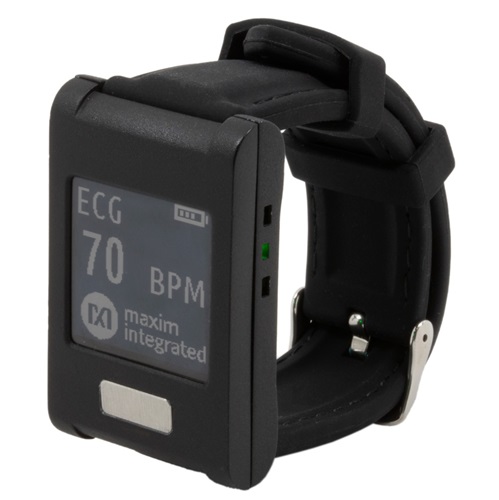

  • Watch enclosure
  • Hardware design files, firmware, and software

System Diagram

MAXREFDES101 system diagram.

MAXREFDES101 system diagram.

User Guide

Required equipment

  • PC or Android device (e.g., tablet) with Bluetooth connection for data logging

Download, read, and carefully follow each step in the appropriate MAXREFDES101#User Guide.
