Altera Embedded Systems Development Kit, Cyclone III Edition
Altera Embedded Systems Development Kit, Cyclone III Edition
Top
Overview
Features & Benefits
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Product Categories
Parts Used
Documentation & Resources
-
DK-DEV-3C120N / DK-EMB-3C120N / DK-DSP-3C120N Dev Kit Schematic8/4/2014PDF1M
Circuit Description

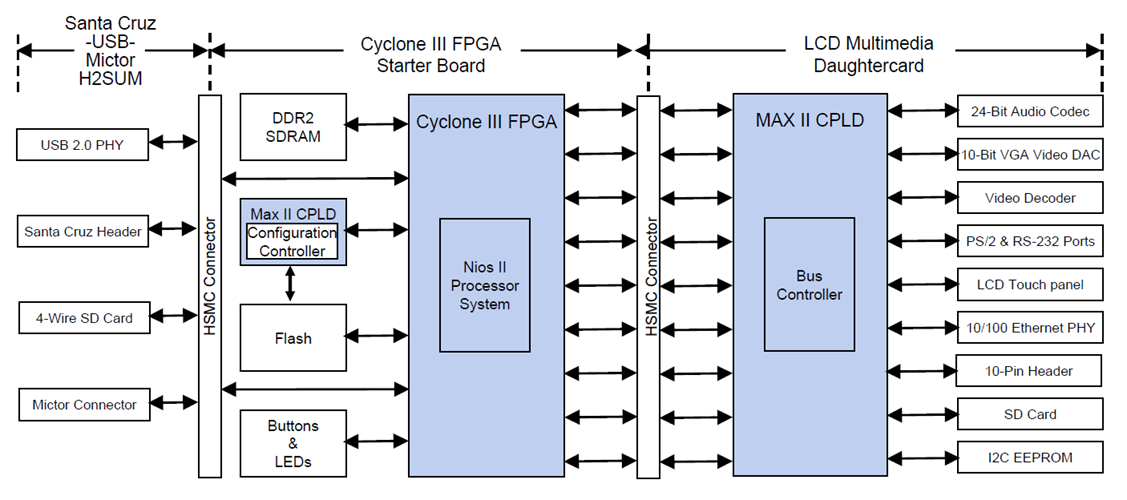

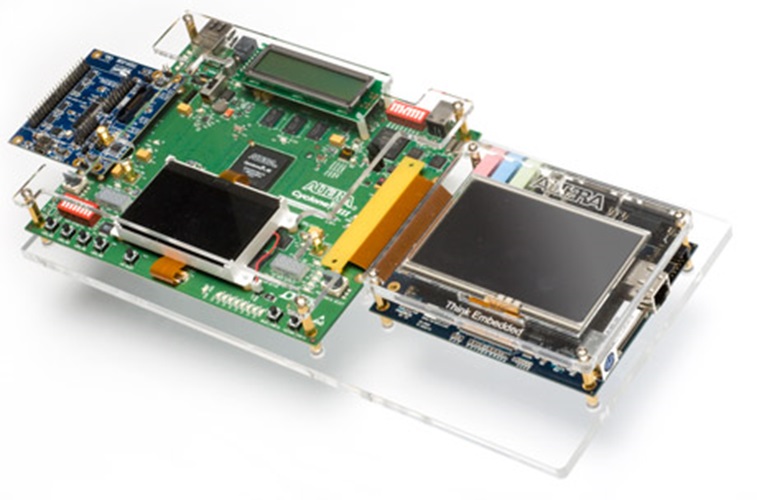

The Altera Embedded System Development Kit, Cyclone III Edition is a complete development platform for prototyping embedded systems on Altera’s low-cost, low-power FPGAs. As part of this development kit, you’ll find everything you need; hardware, example processor systems, software applications, FPGA and software development tools and documentation to accelerate embedded system development.
