Features and Benefits

  • Easily Loads Code Using Bootstrap Loader and Serial-to-JTAG Interface Board
  • JTAG Interface Provides In-Application Debugging Features
    • Step-by-Step Execution Tracing
    • Breakpointing by Code Address, Data Memory Address, or Register Access
    • Data Memory View and Edit
  • Removable, Static, 4-1/2 Digit LCD Display
  • DB-9 RS-232 Serial Connector and Level Translator
  • On-Board 3.6V, 2.5V and Adjustable 1.8V to 3.6V Power-Supply Regulators
  • Evaluation Kit Board can be Powered Directly over JTAG Interface
  • Processor Clock can be run from Crystal or Programmable Oscillator
  • Serial EEPROM
  • DS2433 1-Wire® EEPROM Demonstrates Use of 1-Wire Interface
  • MAX1407 ADC/DAC Demonstrates Use of SPI™ Interface
  • Optional LED Display of Port 0 Logic Levels
  • Pushbutton Switches for Reset and Interrupt Generation
  • 32kHz Crystal for Real-Time Clock Oscillator Use
  • Prototyping Area Including VDDIO and VDD Voltage Rails
  • Test/Expansion Header Includes All Device GPIO and LCD Pins
  • Configuration DIP Switches Connect/Disconnect All Demonstration Circuitry from Port Pins
  • Board Schematics Provide a Convenient Reference Design

Product Details

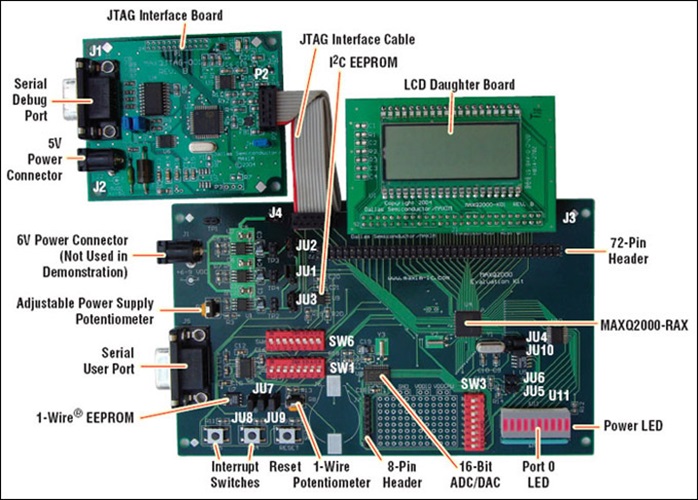

The MAXQ2000 evaluation kit (EV kit) is a proven platform to conveniently evaluate the capabilities of the MAXQ2000 low-power LCD microcontroller. The kit contains the MAXQ2000 with pins brought out to headers, a JTAG programming interface, fixed and adjustable power supplies, a DB-9 serial connector, an LCD display, and switches and LEDs to control and display board operation. With the included software, serial-to-JTAG interface board, and an RS-232 cable connected to a personal computer, the kit provides a completely functional system ideal for evaluating the capabilities of the MAXQ2000.


  • Battery-Powered and Portable Devices
  • Consumer Electronics
  • Data-Acquisition Systems and Data Loggers
  • Electrochemical and Optical Sensors
  • Gas and Chemical Sensors
  • Home Appliances
  • HVAC
  • Industrial Control
  • Medical Instrumentation
  • Security Sensors
  • Smart Transmitters
  • Thermostats/Humidity Sensors
