Overview

Features and Benefits

  • +2V to +36V Input Supply Range
  • Delivers up to 1.2A Output Current (MAX20040)
  • Frequency-Synchronization Input
  • Enable Input
  • Voltage-Monitoring PGOOD Output
  • Enable or Disable Spread Spectrum
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

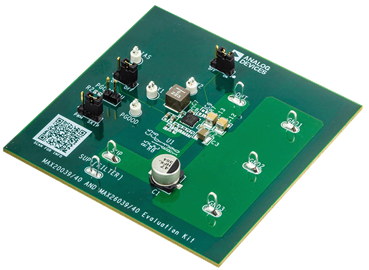

The MAX20040 evaluation kit (EV kit) is a fully assembled and tested application circuit for the MAX20040, which is a small, synchronous buck-boost converter family with integrated high-side and low-side switches. Each EV kit is designed to deliver up to 1.2A with input voltages from +4.5V to +36V, while using only 52µA quiescent current at no load. Input voltage can be lowered to +2V after regulation. Output-voltage quality can be monitored by observing the PGOOD signal.

Applications

  • Body Electronics
  • Infotainment Systems
  • Point-of-Load Power Supply
  • Power over Coax
  • Start-Stop Systems
