User Guide Rev. 0
1 View All

Overview

Features and Benefits

  • Full featured evaluation board for the AD5710R
  • Various link options
  • PC control in conjunction with the EVAL-SDP-CK1Z board

Product Details

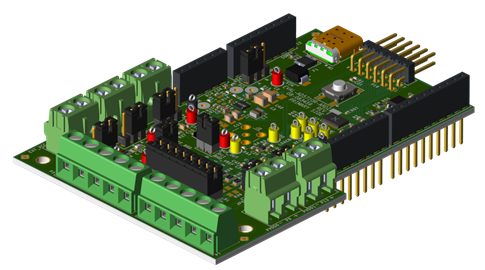

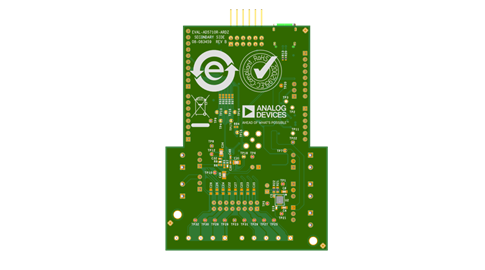

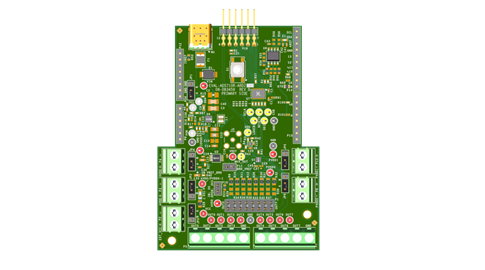

This user guide details the operation of the EVAL-AD5710R-ARDZ for the AD5710R.

The EVAL-AD5710R-ARDZ features a power solution using the MAX77859 switching regulator to generate 6V via a USB-C cable. Additionally, on-board regulators such as the ADP150ACBZ-1.8 generate power for IOVDD and the ADM7171ACPZ to supply AVDD and PVDD. Also, an additional on-board voltage reference, the ADR3625BRMZ, is incorporated.

The EVAL-AD5710R-ARDZ interfaces with a PC via USB through the SDP-K1 board. A peripheral module interface (PMOD) is also available, allowing the evaluation board to operate without the SDP-K1. When using a microcontroller via the PMOD connection, the SDP-K1 must be disconnected, and ACE software functionality is not available.

Applicable Parts

Documentation & Resources

  • View All (3)
  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
    • Document Type

    Software

    ACE Software

    ZIP
    28 MB
    ACE plug-in for Board.AD5710R 1.2025.4351131 [Nov 20 25]
    Board.AD5710R supports the EVAL-AD5710RARDZ board. The AD5710R is an 8-Channel, 16-/12-bit IDAC/VDAC.
    EXE
    157 MB
    ACE Installer Software 1.30.3369.1491 [Jul 10 25]
    Analysis | Control | Evaluation (ACE) Software. Requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.
    ACE software page >
