TMCM-1633

Servo drive for 3-phase BLDC motors 14.5 to 50V, 10A, with CAN and RS232 Interface

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 1
1ku List Price
price unavailable
Features
  • Single axis field oriented control for BLDC/PMSM motor
  • Hall and ABN encoder support
  • +14, 5 to 48V DC supply voltage
  • Up to 10A RMS peak motor current
  • RS232 & CAN interface
  • CANopen CiA 402 drive profile
  • Torque, Velocity, and Position control
Additional Details
show more Icon

The TMCM-1633 is a single axis controller module for brushless DC (BLDC) and PMSM motors. It offers field-oriented control (FOC) with up to 10A RMS phase currents at +48V DC supply. Besides hall sensor and incremental a/b/n encoder interfaces for connection to the motor, digital inputs and outputs can be used. A CAN interface allows communication with a CANopen master.

The TMCM-1633 is compatible with ADI Trinamic's baseboard BB-163x.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

Part Models 1
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
TMCM-1633-CANOPEN
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 1, 2018

- PCN 2018-04-01 Firmware V210

Firmware Update

TMCM-1633-CANOPEN

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 1, 2018

- PCN 2018-04-01 Firmware V210

arrow down

Firmware Update

TMCM-1633-CANOPEN

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

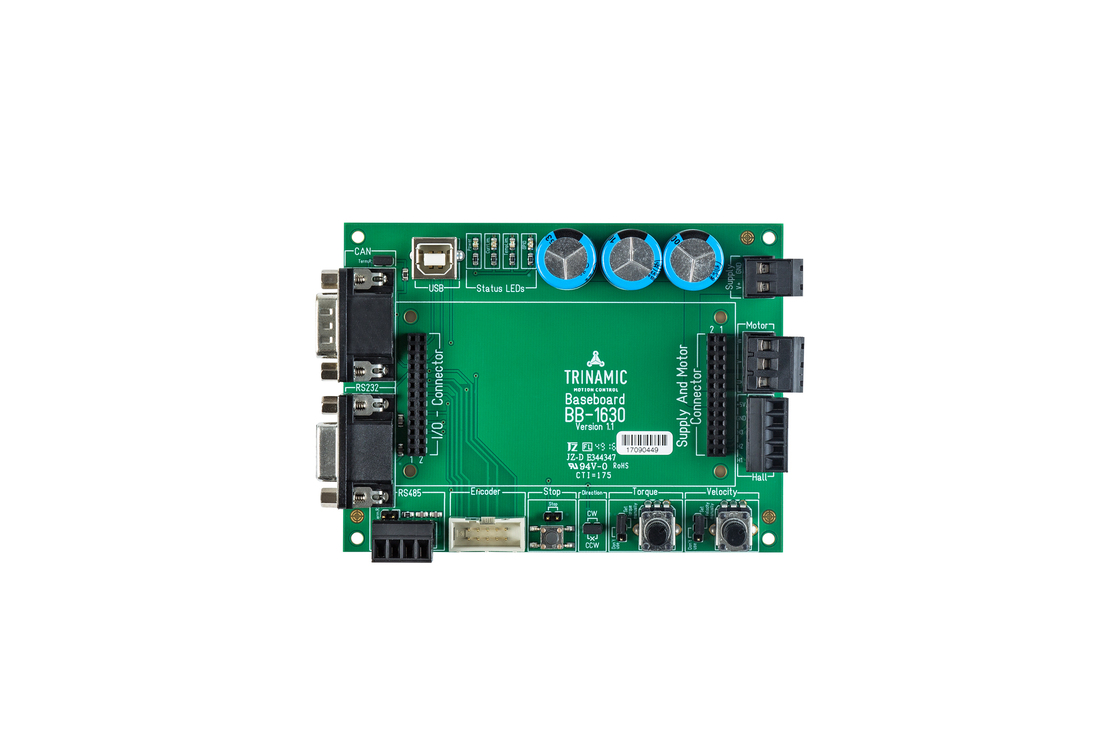

BB-163X

Evaluation Board for BB-163X

zoom

BB-163X

Evaluation Board for BB-163X

Evaluation Board for BB-163X

Features and Benefits

Applications
  • Baseboard / Evaluation board for TMCM-1630 and TMCM-1633
Electrical Data
  • Supply voltage: +24V DC or +48V DC nominal (+12 to +55V DC max.)
  • Motor current: up to 10A RMS peak
Interfaces
  • The interface connectors refer to the assembly options of the TMCM-163x:
    • RS232
    • CAN (2.0B up to 1Mbit/s)
    • RS485
    • USB (High-speed 12Mbit/s)
    The baseboard integrates all communication connectors. There are no assembly options. Please note: Functionality of communication interfaces depends on assembly options of TMCM-163x
Other
  • Separate connectors for interfaces, encoder, power supply, motor, and hall sensors
  • Potentiometers for analog inputs plus push-button for digital input (function depending on firmware)
  • ROHS compliant
  • Size: 120x90mm2
  • Accessibility

Product Detail

The baseboard BB-163x allows to build a ready to use BLDC motor driver unit using the TMCM-1630 driver module or the TMCM-1633 driver module. It integrates velocity and torque (via current) control as well as a hall sensor based positioning mode. The position resolution depends on the motor, i.e. a standard 8 pole motor gives a motor axis resolution of 15 degrees.

The module can be used in stand alone operation or it can be remotely controlled via RS232, CAN, RS485 or USB (depending on the used module). All important signals and the power supply lines can be connected easily. For motor, power supply and hall sensors screw terminals are available and for the host interface dedicated connectors. The baseboard has two potentiometers to adjust torque and velocity. An incremental encoder can be attached at an 10-pin header connector.
