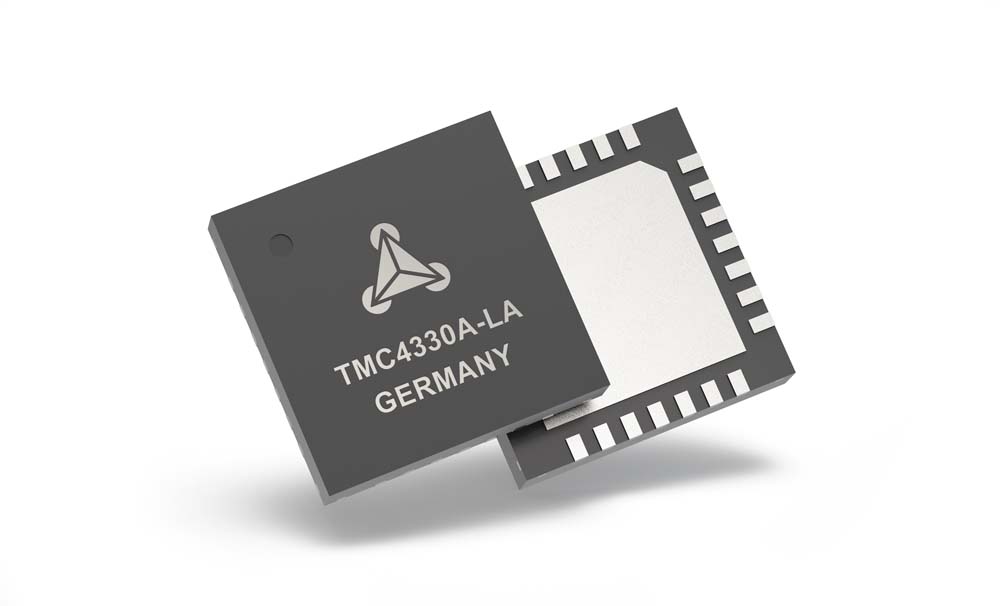

TMC4330
OBSOLETE PRODUCT
Overview
- SPI Interfaces for µC with easy-to-use protocol
- Encoder interface for incremental or serial encoders
- Closed-loop operation for Step drivers
- Internal ramp generator generating S-shaped ramps or SixPoint™ ramps supporting on-the-fly changes
- Controlled PWM output
- Reference switch handling
- Hardware and virtual stop switches
The TMC4330 is a stepper motor servo controller with S-shaped ramps for laboratory automation, 3D-Printing, Scanners and other automated equipment applications. The device is usable as a trapezoidal and advanced SixPoint™ ramp generator. Furthermore the TMC4330 is powered by Trinamic ChopSync™ and closed loop control technology. The device is designed for an operating voltage of 3.3V. The TMC4330 provides a SPI controller and S/D driver interface. Additionally it has an a/b/n incremental, SPI and SSI encoder Interface.
APPLICATIONS- Textile, sewing machines
- CCTV, security
- Printers, scanners
- ATM, cash recycler
- Office automation
- POS
- Factory automation
- Lab automation
- Pumps and valves
- Heliostat controllers
- CNC machines
- Robotics
Documentation
Data Sheet 1
This is the most up-to-date revision of the Data Sheet.
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Motor Drivers & Motion Controllers 1 | ||
| TMC4361 | RECOMMENDED FOR NEW DESIGNS | S-shaped ramp and SixPoint ramp motion controller for stepper motors with SPI and Step/Dir interfaces, and an encoder interface for closed-loop operation |
