SSM2603

PRODUCTION

Low Power Audio Codec

Data Sheet (Rev. D) Product Selection Table

Part Models: 2
1ku List Price: Starting From $3.39

Viewing:

Overview

Stereo, 24-bit analog-to-digital and digital-to-analog converters
DAC SNR: 100 dB (A-weighted), THD: −80 dB at 48 kHz, 3.3 V
ADC SNR: 90 dB (A-weighted), THD: −80 dB at 48 kHz, 3.3 V
Highly efficient headphone amplifier
Stereo line input and monaural microphone input
Low power
- 7 mW stereo playback (1.8 V/1.5 V supplies)
- 14 mW record and playback (1.8 V/1.5 V supplies)

Low supply voltages
- Analog: 1.8 V to 3.6 V
- Digital core: 1.5 V to 3.6 V
- Digital I/O: 1.8 V to 3.6 V
256/384 oversampling rate in normal mode; 250/272 over-sampling rate in USB mode
Audio sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
28-lead, 5 mm × 5 mm LFCSP package

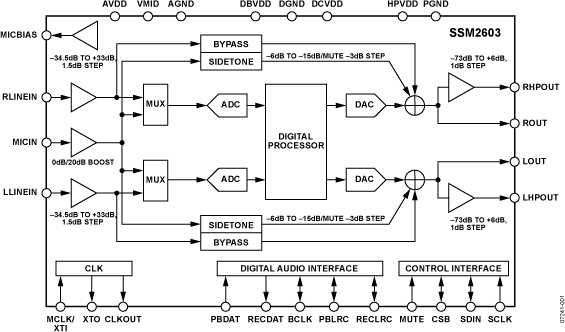

The SSM2603 is a low power, high quality stereo audio codec for portable digital audio applications with one set of stereo programmable gain amplifier (PGA) line inputs and one monaural microphone input. It features two 24-bit analog-to-digital converter (ADC) channels and two 24-bit digital-to-analog (DAC) converter channels.

The SSM2603 can operate as a master or a slave. It supports various master clock frequencies, including 12 MHz or 24 MHz for USB devices; standard 256 fS or 384 fS based rates, such as 12.288 MHz and 24.576 MHz; and many common audio sampling rates, such as 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, 16 kHz, 12 kHz, 11.025 kHz, and 8 kHz.

The SSM2603 can operate at power supplies as low as 1.8 V for the analog circuitry and as low as 1.5 V for the digital circuitry. The maximum voltage supply is 3.6 V for all supplies.

The SSM2603 software-programmable stereo output options provide the user with many application possibilities. Its volume control functions provide a large range of gain control of the audio signal.

The SSM2603 is specified over the industrial temperature range of −40°C to +85°C. It is available in a 28-lead, 5 mm × 5 mm lead frame chip scale package (LFCSP).

Applications

Mobile phones
MP3 players
Portable gaming
Portable electronics
Educational toys

Part Models: 2
1ku List Price: Starting From $3.39

Documentation

Data Sheet 1

SSM2603: Low Power Audio Codec Data Sheet (Rev.D) 03/05/2008

Evaluation Design File 2

SSM2603 Evaluation Board for Audio Codec (EVAL-SSM2603) 04/28/2009

Blackfin Specific Linux Driver 02/05/2010

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
SSM2603CPZ-REEL	28-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
SSM2603CPZ-REEL7	28-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 25, 2025 - 25_0054 Gold wire to Copper wire Conversion (Notification)
		PCN25_0054_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Qualification Results Summary
SSM2603CPZ-REEL	PRODUCTION
SSM2603CPZ-REEL7	PRODUCTION
Feb 6, 2017 - 16_0234 Assembly Transfer to ASE Korea and Test Transfer to STATS ChipPAC Singapore of Select LFCSP Parts.
		PCN16_0234_Form Material_Report Detailed Change Description Detailed Change Description Qualification Results Summary Test Correlation Report
SSM2603CPZ-REEL	PRODUCTION
SSM2603CPZ-REEL7	PRODUCTION
Aug 6, 2014 - 13_0230 Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
		PCN13_0230_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
SSM2603CPZ-REEL	PRODUCTION
SSM2603CPZ-REEL7	PRODUCTION
Mar 7, 2012 - 10_0241 Conversion of LFCSP package outline from Punch to Sawn of package sizes 4x4, 5x5, 6x6 and 7x7mm and a transfer of assembly site.
		PCN10_0241_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
SSM2603CPZ-REEL	PRODUCTION
SSM2603CPZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 1

SSM2602 Sound CODEC GitHub Linux Driver Source Code
