SC1894

RECOMMENDED FOR NEW DESIGNS

SC1894

225MHz to 3800MHz RF Power Amplifier Linearizer (RFPAL)

Third Generation Fully Adaptive RF PA Linearization Technology in a Single IC

RECOMMENDED FOR NEW DESIGNS

RECOMMENDED FOR NEW DESIGNS

SC1894: Application Block Diagram slide

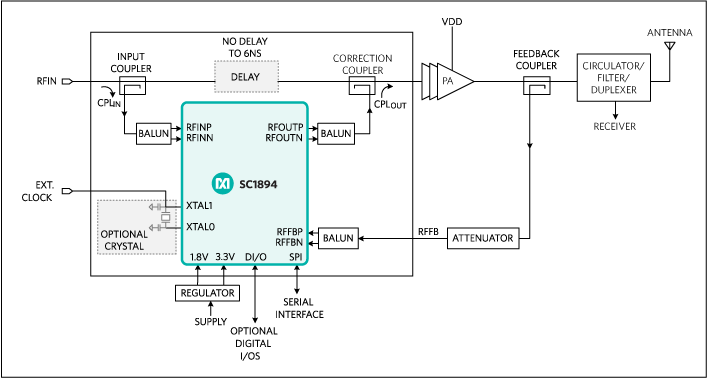

SC1894: Application Block Diagram

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 10

1ku List Price Starting From $64.05

Features

RFin/RFout PA Linearizer SoC in Standard CMOS
- Fully Adaptive Correction
- Up to 28dB ACLR and 38dB IMD Improvement
External Reference Clock Support:
- 10, 13, 15.36, 19.2, 20, 26, and 30.72MHz
Low Power Consumption:
- Duty-cycled (9%) Feedback: 600mW
- Full adaptation: 1200mW
Frequency Range: 225MHz to 3800MHz
Input Signal Bandwidth: 1.2MHz to 75MHz
Packaged in 9mm x 9mm QFN Package
Operating Case Temperature: -40°C to +100°C
Fully RoHS Compliant, Green Materials
Dual-RF Power Measurement

Additional Details

The SC1894 is the Scintera^® 3rd generation of RF PA linearizers (RFPAL^™) that provide improved correction and functionality over the previous generations. The SC1894 is a fully adaptive, RFin/RFout predistortion linearization solution optimized for a wide range of amplifiers, power levels, and communication protocols. The SC1894 uses the PA output and input signals to adaptively generate an optimized correction function in order to minimize the PA’s self-generated distortion and impairments. Using RF-domain analog signal processing enables the SC1894 to operate over wide-signal bandwidths and consume very low power.

The SC1894 goes beyond linearization and provides accurate RF power measurement of RFIN and RFFB. Design support features including spectral monitoring and ACLR alarm are also available. These optional design support are accessed through the SC1894’s serial peripheral interface (SPI) bus.

Evaluation kits are available for evaluating the performance of the SC1894. See the SC1894 data sheet for the frequency variants. See the Sample & Buy table below for EV Kit options. NOTE: The SC1894EVKit requires the use of the SC-USB-SPI-PICO board to connect the SC1894EVKit into a computer.

Note: All SCxx parts are RoHS. An appended “E” at the end of the part number indicates 7” Tape and Reel. No appended letter or a “K” at the end of the part number indicates bulk.

APPLICATIONS

Broadcast Infrastructure (SC1894A-00C13)
Cellular Infrastructure (SC1894A-00C13)
Microwave Backhaul (SC1894A-00M13)
Wide Range of PAs and Output Power
