Features
- Ultralow Drift: 5ppm/°C Max Temperature Coefficient
- Very Low Noise: 4µVP-P (0.1Hz to 10Hz)
- Long Term Stability: 7ppm/kHr
- Trimmed Output Voltage
- Operates in Series or Shunt Mode

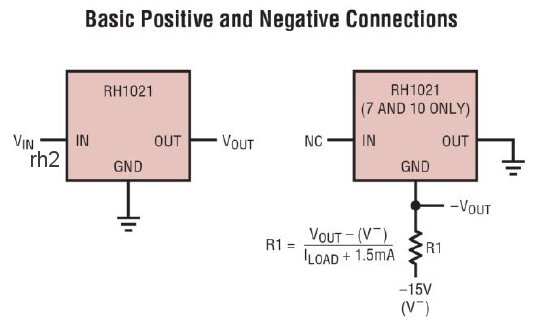

- Configure As Positive Or Negative Reference
- Output Sinks Or Sources 10mA
- Available in Metal Can package

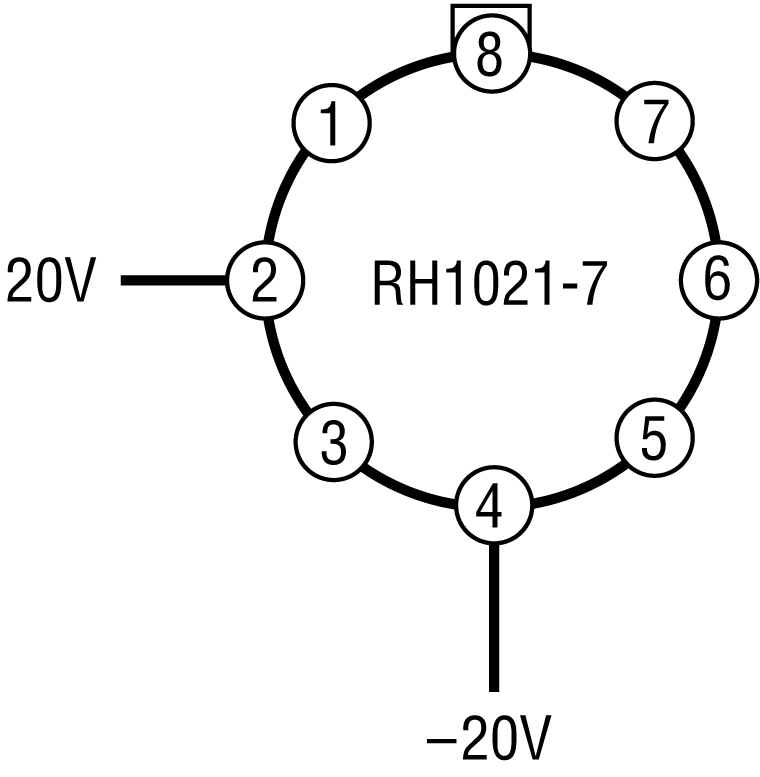

- Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The RH1021-7 is a precision 7V reference with ultralow drift and noise, extremely good long-term stability and almost total immunity to input voltage variations. The reference output will source and sink up to 10mA. This reference can also be used as a shunt regulator (2-terminal Zener). Unique circuit design makes the RH1021-7 the first IC reference to offer ultralow drift without the use of high power on-chip heaters.
The wafer lots are processed to Linear Technology’s in-house Class S flow to yield circuits usable in stringent military applications.
Applications
- A/D and D/A Convertors
- Precision Regulators
- Measurement and Control Systems
- Power Supply Monitors
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
RH1021-7
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Reliability Data
-
All
-
English
Data Sheet
1
Reliability Data
2
65.34 K
140 K
Documentation
Data Sheet 1
Reliability Data 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| RH1021BMH-7 |

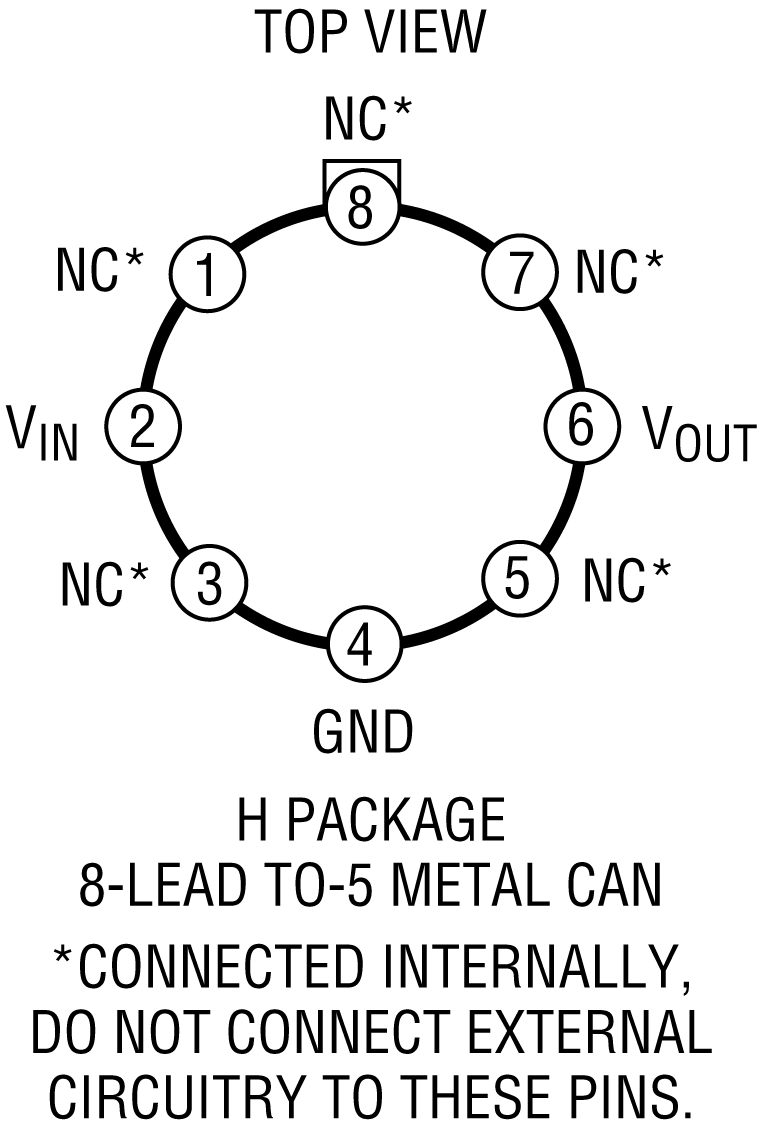

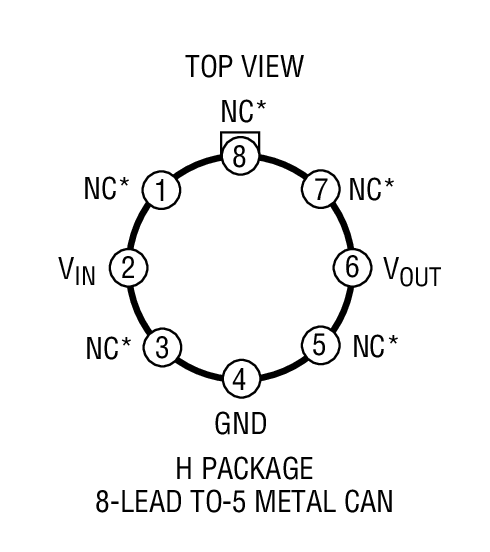

8-Lead TO-5 (0.2 Inch PCD)
|
|
|
| RH1021BMH-7-EMX | ROUND HEADER/METAL CAN |
|
- RH1021BMH-7
- Pin/Package Drawing
-

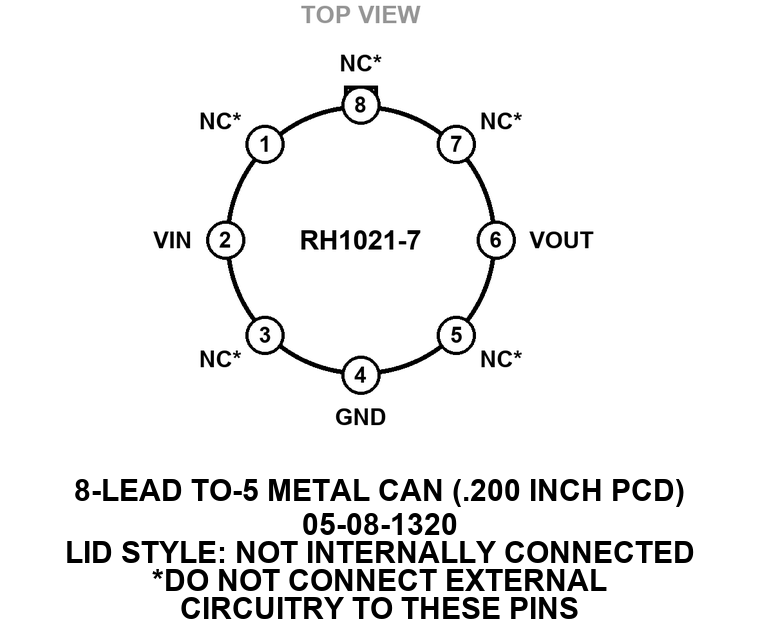

8-Lead TO-5 (0.2 Inch PCD)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- RH1021BMH-7-EMX
- Pin/Package Drawing
- ROUND HEADER/METAL CAN
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 30, 2022
- 22_0196
Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
Oct 30, 2020
- 20_0325
ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
Jul 9, 2019
- 19_0111
Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 30, 2022
- 22_0196
Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
Oct 30, 2020
- 20_0325
ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
Jul 9, 2019
- 19_0111
Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
