Features
- NEMA 23 mounting configuration
- 6.35mm axis diameter, 20mm axis length
- Step angle 1.8
- Optimized for microstep operation
- Optimized fit for TMC239/TMC249/TMC262 based driver circuits
- 4 Wire connection
- CE approved
- Flange max. 56.5mm x 56.5mm
- D-cut of 15mm length and 0.5mm depth
- Up to 75V recommended operation voltage
- Variants with encoder: 10000 lines/ 40000 counts
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

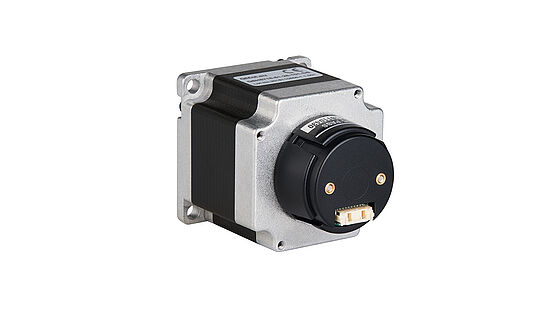

NEMA23 (47mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.
Variants include a small size optical incremental encoder kit. It comes with a resolution of 10000 lines (40000 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
Technical Details
| QSH5718-41-28-055 | QSH5718-51-28-101 | QSH5718-56-28-126 | QSH5718-76-28-189 | |
| Status | Active | Active | Active | Active |
| Flange NEMA | 23 | 23 | 23 | 23 |
| Flange | 57mm | 57mm | 57mm | 57mm |
| Holding Torque | 55Ncm | 101Ncm | 126Ncm | 189Ncm |
| Phase Current | 2.80A | 2.80A | 2.80A | 2.80A |
| Full Steps | 200 | 200 | 200 | 200 |
| Width | 57mm | 57mm | 57mm | 57mm |
| Height | 57mm | 57mm | 57mm | 57mm |
| Length | 41mm | 51mm | 56mm | 76mm |
| Weight | 450g | 650g | 700g | 1000g |
