Features and Benefits

  • Complete MDAC with Output Amplifier
  • 4-Quadrant Multiplication
  • Guaranteed Monotonic (TMIN to TMAX)
  • Matched Application Resistors
  • Small 0.3" 24-Pin DIP Package

Product Details

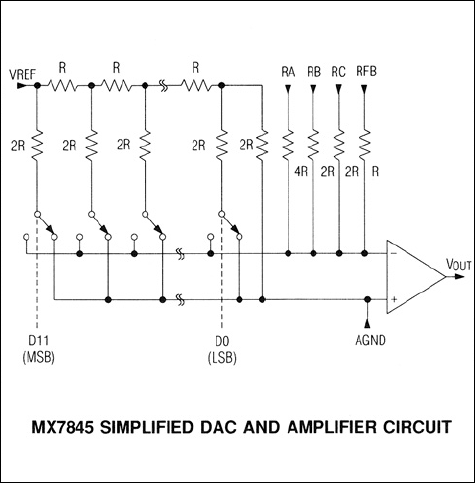

The MX7845 is a 12-bit, voltage-output, 4-quadrant, multiplying digital-to-analog converter (DAC). A precision internal output amplifier and thin-film resistors, laser-trimmed at the wafer level, maintain accuracy over the full operating temperature range. The output amplifier is internally compensated and drives ±10V into a 2kΩ load. The MX7845 has buffered latches that are easily interfaced with microprocessors. Data is transferred into the input register from a 12-bit-wide data path. The input registers are controlled by standard active-low CHIP SELECT (active-low CS) and active-low WRITE (active-low WR) signals. For stand-alone operation, the active-low CS and active-low WR inputs are grounded, making all latches transparent. All logic inputs are level-triggered and compatible with TTL and +5V CMOS logic levels. For a detailed description of MX7845 operation, refer to the MAX501/MAX502 data sheet.


  • Automatic Test Equipment
  • Digital Attenuators
  • Digital to 4-20mA Converters
  • Programmable Power Supplies
  • Programmable-Gain Amplifiers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MX7845JP+ Material Declaration Reliability Data Plastic Leaded Chip Carrier
MX7845JP+T Material Declaration Reliability Data Plastic Leaded Chip Carrier
MX7845JR+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MX7845JR+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
