MX7672
PRODUCTIONHigh-Speed 12-Bit ADC with External Reference Input
- Part Models
- 2
- 1ku List Price
- Starting From $28.09
Overview
- Plug-In Replacement for AD7672
- 12-Bit Resolution and Accuracy
- Fast Conversion Time
- MX7672_ _03 - 3µs
- MX7672_ _05 - 5µs
- MX7672_ _10 - 10µs
- Operates with +5V and -12V Supplies
- Buffered Reference Input
- Low 110mW Power Consumption
- Choice of +5V, +10V, or ±5V Input Ranges
- Fast 125ns Bus-Access Time

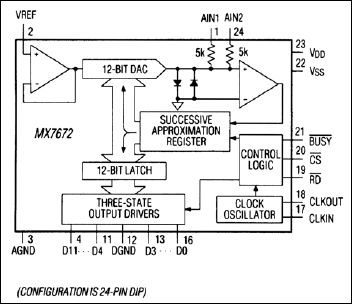

The MX7672 is a 12-bit, high-speed, BiCMOS, analog-to-digital converter (ADC) that performs conversions in as little as 3μs while consuming only 110mW of power. The MX7672 is a plug-in replacement for AD7672.
The MX7672 requires an external -5V reference. A buffered reference input minimizes reference current requirements and allows a single reference to drive several ADCs. External reference specifications can be chosen to suit the accuracy of the application. The ADC clock can be driven from either a crystal or an external clock source, such as a microprocessor (µP) clock.
Average input range is pin-selectable for 0 to +5V, 0 to +10V, or ±5V, making the ADC ideal for data-acquisition and analog input/output cards. A high-speed digital interface (125ns data-access time) with three-state data outputs is compatible with most µPs.
Applications
- High-Speed Data-Acquisition Systems
- Personal Computer I/O Boards
- Sonar and Radar Signal Processing
- Telecommunications
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MX7672KN10+ | Plastic Dual-In-Line, Narrow (0.3in) | ||
| MX7672KP10+ | Plastic Leaded Chip Carrier |
