Overview
Features and Benefits
- 12 Bit Linearity (½ LSB)
- 1 LSB Gain Accuracy
- Guaranteed Monotonic
- Low Power Consumption
- Four-Quadrant Multiplication
- TTL and CMOS Compatible
- Pin-For-Pin Second Source
Product Details

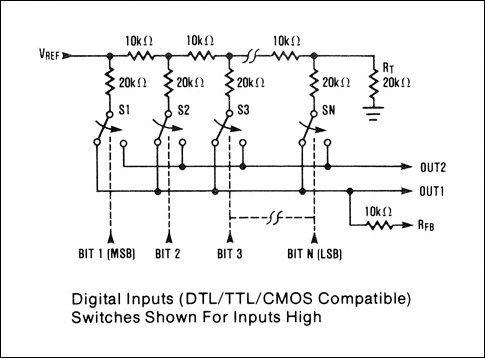

The MX7541A is a high performance CMOS multiplying 12-bit digital-to-analog converter (DAC). Low power operation and 12-bit (0.012%) linearity make it suitable for a wide range of precision data acquisition and control applications. Wafer level laser trimmed thin-film resistors and temperature compensated NMOS switches assure true 12-bit performance over the full operating temperature range. In addition, all digital inputs are compatible with both CMOS and TTL logic levels. Maxim's MX7541A is electrically and pin compatible with Analog Devices AD7541A and AD7541. Package types include 18-lead standard width DIP and Small Outline packages.
Applications
- µP-Controlled Calibration Circuitry
- Automatic Test Equipment
- Digitally Controlled Filters
- Machine and Motion Control Systems
- Programmable Gain Amplifiers
- Programmable Power Supplies
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MX7541AJCWN+ | Material Declaration | Reliability Data | 18-SOIC_W-300_MIL | |
| MX7541AJN+ | Material Declaration | Reliability Data | 18-PDIP-300_MIL | |
| MX7541AKCWN+ | Material Declaration | Reliability Data | 18-SOIC_W-300_MIL | |
| MX7541AKCWN+T | Material Declaration | Reliability Data | 18-SOIC_W-300_MIL | |
| MX7541AKEWN+ | Material Declaration | Reliability Data | 18-SOIC_W-300_MIL | |
| MX7541AKEWN+T | Material Declaration | Reliability Data | 18-SOIC_W-300_MIL | |
| MX7541AKN+ | Material Declaration | Reliability Data | 18-PDIP-300_MIL | |
| MX7541AKP+ | Material Declaration | Reliability Data | 20-PLCC-N/A | |
| MX7541AKP+T | Material Declaration | Reliability Data | 20-PLCC-N/A | |
| Wafer Fabrication Data | MX7541A Reliability Data |
