Features and Benefits

  • 14-Bit Monotonic Over Full Temperature Range
  • 4-Quadrant Multiplication
  • µP Compatible Double Buffered Inputs
  • Low Power Consumption
  • TTL, 74HC and 5V CMOS Compatible
  • Low Output Leakage Over Temperature Range
  • Small 24-Lead 0.3" DIP or Wide SO Packages

Product Details

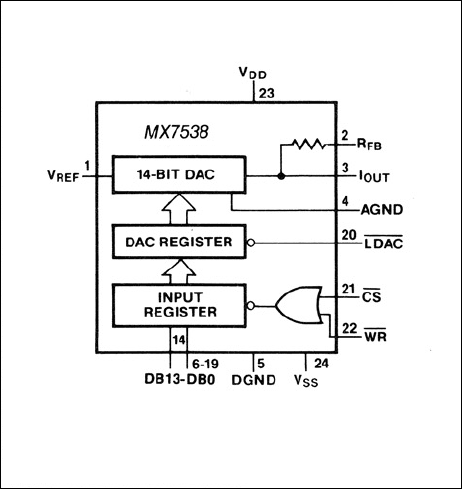

The Maxim MX7538 is a high performance monolithic 14-bit multiplying digital-to-analog converter (DAC). The MX7538 operate with a 14-bit data bus using standard chip select and memory write logic. A Load DAC (LDAC) signal is provided where double buffering is required, such as in systems with multiple DACs. If the LDAC signal is kept low, the DAC register becomes transparent. The MX7538 is optimized for unipolar applications, but can be operated as a bipolar DAC with additional external components.

Full accuracy is maintained over the operating temperature range through the use of wafer-level later-trimmed, thin-film resistors and temperature compensated NMOS switches. In addition, all digital inputs are compatible with both TTL, 74HC and 5V CMOS logic levels. The MX7538 is available in the narrow (0.3") 24-lead DIP and Wide SO (0.3") packages.


  • µP-Controlled Calibration Circuitry
  • Automatic Test Equipment
  • Digital Audio Synthesis
  • Digitally Controlled Filters
  • Machine and Motion Control Systems
  • Programmable Gain Amplifiers
  • Programmable Power Supplies

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MX7538JCWG+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MX7538JCWG+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MX7538JEWG+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MX7538JN+ Material Declaration Reliability Data 24-PDIP-300_MIL
MX7538KEWG+ Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MX7538KEWG+T Material Declaration Reliability Data Small-Outline IC, Wide (0.3in)
MX7538KN+ Material Declaration Reliability Data 24-PDIP-300_MIL
Wafer Fabrication Data MX7538 Reliability Data
