MX574A

Industry-Standard, Complete 12-Bit ADCs

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.4)
Documentation View All Documentation
Part Models 17
1ku List Price Starting From $23.20
Features
  • Complete ADC with Reference and Clock
  • 12-Bit Resolution and Linearity
  • No Missing Codes Over Temperature
  • 150mW Power Dissipation
  • 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A) Max Conversion Times
  • Precision Low TC Reference: 10ppm/°C
  • Monolithic BiCMOS Construction
  • 150ns Maximum Data Access Time
Additional Details
show more Icon

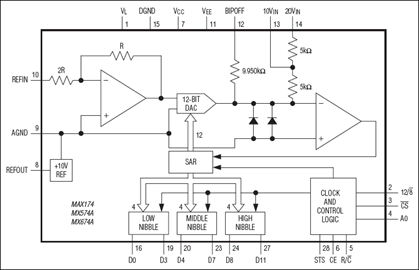

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.
The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.

Applications

  • Digital Signal Processing
  • Electro-Mechanical Systems
  • High-Accuracy Process Control
  • High-Speed Data Acquisition
