MAXQ3212

Microcontroller with Analog Comparator and LED Driver

Data Sheet (Rev. 0)
Viewing:

Overview

  • High-Performance, Low-Power, 16-Bit RISC Core
    • DC to 3.58MHz Operation, Approaching 1MIPS per MHz
    • +5V ±10% Operation
    • Up to 15 General-Purpose I/O Pins
    • 33 Instructions, Most Single-Cycle
    • Two Independent Data Pointers Accelerate Data Movement with Automatic Increment/Decrement
    • Two Loop Counters
    • 4-Level Hardware Stack
    • 16-Bit Instruction Word, 16-Bit Data Bus
    • 16 x 8-Bit Accumulators
    • 16 x 16 General-Purpose Working Registers
    • Optimized for C Compiler (High-Speed/Density Code)
    • JTAG-Like Debug/Visibility Port
  • Program and Data Memory
    • 1kWord EEPROM Program Memory, Mask ROM for High-Volume Applications
    • 128 Bytes EEPROM Data Memory
    • 60,000 EEPROM Write/Erase Cycles
    • 64 Bytes SRAM Data Memory
    • In-System Programming
  • Peripheral Features
    • 16-Bit Programmable Timer/Counter with Prescaler
    • High-Current I/O Pin Suitable for LED Drive
    • Programmable Watchdog Timer
    • Selectable Power-Fail Reset
    • Power-On Reset (POR)
    • Wake-Up Timer
    • Internal 8kHz Ring Oscillator
  • Flexible Programming Interface
    • Bootloader Simplifies Programming
    • In-System Programming Through JTAG
    • Supports In-Application Programming of EEPROM Memory
  • Ultra-Low-Power Consumption
    • 2.7µA Stop Mode Current (typ)
    • Low-Power Divide-by-256 Mode
  • Analog Features
    • Analog Comparator Uses Internal or External Voltage Reference
    • +2.5V Reference Output Available

The MAXQ3212 microcontroller is a low-power, 16-bit RISC device that incorporates an analog comparator and a high-current I/O pin for directly driving an LED. The device is uniquely suited for cost-conscious applications such as battery-powered devices, system monitors, and white goods, but can be used in any application that requires high performance and low-power operation. The high-performance 16-bit RISC MAXQ® core and 8-bit accumulators are complemented by standard amenities such as timers and digital I/O. The power consumption per MIPS ratio is among the best in the 16-bit microcontroller industry.

Note: Designers must have the following documents to fully use all the features of this device. This data sheet contains pin descriptions, feature overviews, and electrical specifications. Errata sheets contain deviations from published specifications. The user's guides offer detailed information about device features and operation.

Applications

  • Battery-Powered and Portable Devices
  • Electrochemical and Optical Sensors
  • Environmental Systems
  • Gas and Chemical Sensors
  • Home Appliances
  • Industrial Control
MAXQ3212
Microcontroller with Analog Comparator and LED Driver

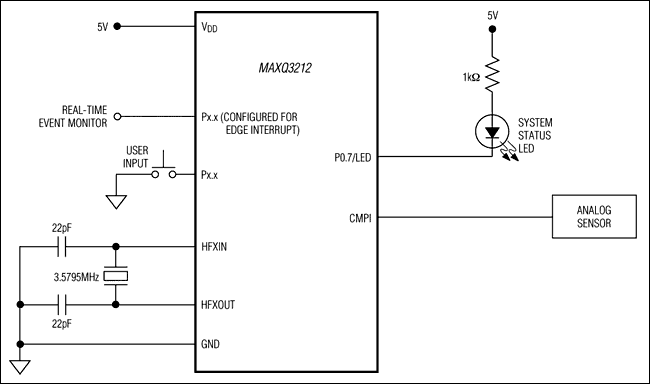

MAXQ3212: Typical Operating Circuit
