MAXM38643

Tiny, 1.8V to 5.5V Input, 330nA IQ, 600mA nanoPower Buck Module

Show More showmore-icon

NanoPower Buck Module with Industry’s Lowest IQ Extends Battery Life for Always-On Devices

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Open Interactive Page external-link
Documentation View All Documentation
Part Models 2
1ku List Price
price unavailable
Features
  • Extends Battery Life
    • 330nA Ultra-Low Quiescent Supply Current
    • 1nA Shutdown Current
    • 96% Peak Efficiency and over 88% at 10μA
  • Easy to Use – Addresses Popular Operations
    • 1.8V to 5.5V Input Range
    • Single Resistor-Adjustable VOUT from 0.7V to 3.3V
    • Factory-Preprogrammed VOUT from 0.5V to 5V
    • ±1.75% Output Voltage Accuracy
    • Up to 600mA Load Current Capability
  • Protects System in Multiple Use Cases
    • Reverse-Current Blocking in Shutdown
    • Active Discharge Feature
  • Reduces Size and Increases Reliability
    • -40°C to +85°C Temperature Range
    • 2.1mm x 2.6mm, 10-Lead eMGA Package
Additional Details
show more Icon

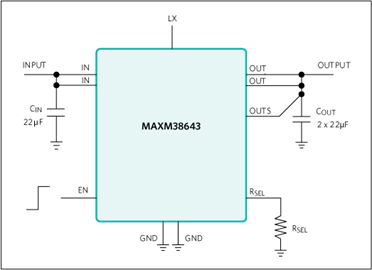

The MAXM38643 is an ultra-low-IQ (330nA) buck module that steps down input voltages in the range of 1.8V to 5.5V to a wide range of output voltages between 0.7V to 3.3V (using a single resistor at the RSEL pin). The output voltage is programmable upon startup using a single external resistor from the RSEL pin to GND. Factory-preprogrammed fixed output voltage versions from 0.5V to 5V are also available that do not use the RSEL pin to set the output voltage. In this case, the RSEL pin in the module is left floating.

The module offers robust performance features. To optimize efficiency and transient response across the load operation range, the module automatically switches between ultra-low-power mode (ULPM), low-power mode (LPM), and highpower mode (HPM) to better service the load, depending on the load current. The device overregulates in ULPM to improve efficiency and allow the output capacitor to handle the transient load currents. The device has 90% duty cycle limitation. An active discharge resistor pulls OUT to ground when the part is in shutdown.

Applications

  • Bluetooth® LE Devices
  • Hearables
  • Portable Space-Constrained Products
  • Single Li+ and Coin Cell Battery Products
  • Ultra-Low-Power IoT, NB IoT
  • Wearables
  • Wired, Wireless Products
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
1ku List Price
price unavailable
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAXM38643

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

PDF Vector

HTML

UPDATED 08/19/2021
English

MAXM38643: Tiny, 1.8V to 5.5V Input, 330nA IQ, 600mA nanoPower Buck Module Data Sheet (Rev.0)

Open PDF File

redirect
778.00K

Open Interactive Page

redirect
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Video

2

Thumbnail Image

Video

2022-10-04

04:35

Introduction to MAXM38643 Tiny, 2.8V-5.5V Input, 330nA Iq, 600mA nanoPower Buck Module

Learn More
Thumbnail Image

Video

2022-10-04

05:45

Extend Battery Life in Space-Constrained Applications with ADI's nanoPower Modules

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAXM38643AEMB+ 10-CSP_BGA_EM-2.1X2.6X1.3 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAXM38643AEMB+T 10-CSP_BGA_EM-2.1X2.6X1.3 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 2

reference details image

MAXM38643AEVK-EMGA

Evaluation Kit for the MAXM38643

zoom

MAXM38643AEVK-EMGA

Evaluation Kit for the MAXM38643

download icon

Download

 print icon

Print

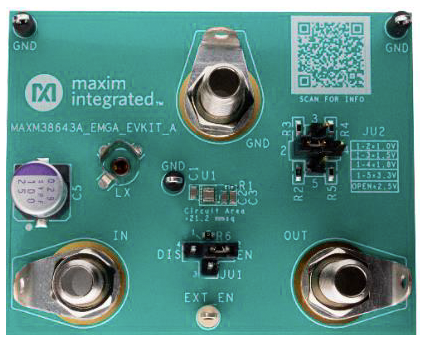

MAXM38643AEVK-EMGA
Evaluation Kit for the MAXM38643

Features and Benefits

  • Evaluates the MAXM38643A IC in a (2.1mm x 2.6mm) 10-pin EMGA Package
  • 1.8V to 5.5V Input Range
  • 0.7V to 3.3V Resistor-Configurable Output Voltages
  • Up to 600mA Output Current
  • Proven 2-Layer 1oz Copper PCB Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAXM38643A EMGA evaluation kit (EV kit) evaluates the MAXM38643A IC in an EMGA package. The MAXM38643A is an ultra-low quiescent current step-down DC-DC converter. The EV kit operates over an input range of 1.8V to 5.5V and provides resistor-configurable output voltages from 0.7V to 3.3V. The EV kit delivers up to 600mA of current. The EV kit comes with the MAXM38643AEMB+ installed.

Applications

  • Bluetooth® LE Devices
  • Hearables
  • Portable Space-Constrained Products
  • Single Li+ and Coin Cell Battery Products
  • Ultra-Low-Power IoT, NB IoT
  • Wearables
  • Wired, Wireless Products

MAXESSENTIAL02EP

Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827

zoom

MAXESSENTIAL02EP

Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827

download icon

Download

 print icon

Print
MAXESSENTIAL02EP
Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827

Features and Benefits

  • Enables Immediate Testing of Nine Different Power Solutions
  • Includes nanoPower Buck and Boost Converters and Modules, Buck/Boost Converter, LDOs, and Continua Supercapacitor Backup Power Controller
  • Boards Designed to Accept 0.100” (2.54mm) Header Pin Strips for Mounting on Breadboards
  • Through Holes Accept Test Points for Connecting to Benchtop Equipment
Buy Now View Details

Product Detail

The MAXESSENTIAL02EP Essential Analog Efficient Power toolkit delivers products on ready-to-use boards for immediate testing and prototyping. The Essential Analog Efficient Power toolkit features products from the Buck, Boost, Buck-Boost, LDO, and Continua™ product categories. The selection also features nanoPower switching converter and module options.

Evaluation Kits2

evaluation kit item images

MAXM38643AEVK-EMGA

Evaluation Kit for the MAXM38643

MAXESSENTIAL02EP

Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827
