MAXM17900

RECOMMENDED FOR NEW DESIGNS

4V to 24V, 100mA, Compact Step-Down Power Module

Save Space and Reduce Heat, 100mA Synchronous Buck, Highly Efficient, Power Module in our uSLIC Package

Data Sheet (Rev. 3) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.10

Viewing:

Overview

Easy to Use
- Wide 4V to 24V Input
- Adjustable 0.9V to 5.5V Output
- ±1.75% Feedback-Voltage Accuracy
- Up to 100mA Output Current Capability
- Internally Compensated
- All Ceramic Capacitors
High Efficiency
- Fixed-Frequency PWM
- Pulse Frequency Modulation (PFM) Mode to Enhance Light-Load Efficiency
- Shutdown Current as Low as 1.2µA (typ)
Flexible Design
- Programmable Soft-Start and Prebias Startup
- Open-Drain Power Good Output (Active-Low RESET Pin)
- Programmable EN/UVLO Threshold
Rugged
- Complies with CISPR22 (EN55022) Class B Conducted and Radiated Emissions
- Passes Drop, Shock, and Vibration Standards–JESD22-B103, B104, B111
Robust Operation
- Hiccup Overcurrent Protection
- Overtemperature Protection
- -40°C to +125°C Ambient Operating Temperature/-40°C to +150°C Junction Temperature

Part Models: 2
1ku List Price: Starting From $2.10

Documentation

Data Sheet 1

MAXM17900: 4V to 24V, 100mA, Compact Step-Down Power Module Data Sheet (Rev.3) 02/09/2021

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAXM17900AMB+	CSP_BGA_EM	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAXM17900AMB+T	CSP_BGA_EM	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 22, 2020 - 2092 ASSEMBLY
		pcn_2092
MAXM17900AMB+	PRODUCTION
MAXM17900AMB+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

MAXM17900

EE-Sim Power® Tools 1

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

SIMPLIS Models 1

MAXM17900 SIMPLIS Schematic

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Kit for the MAXM17900 5V Output-Voltage Application

Buy Now View Details

Features and Benefits

Wide 10V to 24V Input
±1.75% Feedback Voltage Accuracy
Output: 5V,100mA
Internally Compensated
All Ceramic Capacitors and Ultra-Compact Solution
PFM or Force-PWM Mode of Operation
Shutdown Current as Low as 1.2µA (typ)
Programmable Soft-Start and Prebias Startup
Open-Drain Power Good Output (Active-Low RESET pin)
Programmable EN/UVLO Threshold
Hiccup Overcurrent Protection (OCP)
Overtemperature Protection (OTP)
-40°C to +125°C Industrial/Automotive Temperature Range
Complies with CISPR22 (EN55022) Class B Conducted and Radiated Emissions
Passes Drop, Shock, and Vibration Standards—JESD22–B103, B104, B111

Product Details

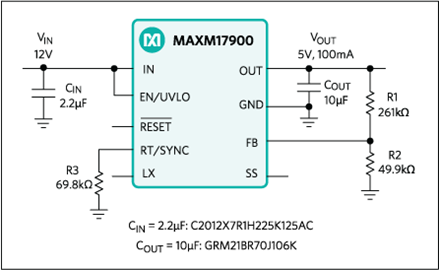

The MAXM17900 evaluation kit (EV kit) is a demonstration circuit of the MAXM17900 ultra-small, high efficiency, current mode, synchronous step-down DC-DC switching power module. The EV kit operates over an input-voltage of 10V to 24V and provides up to 100mA load current with a 5V output voltage. The EV kit is programmed to switch at a frequency of 600kHz. The module is simple to use and easily configurable with minimal external components. It features cycle-by-cycle peak current-limit protection, undervoltage lockout (EN/UVLO), and thermal shutdown.

The EV kit comes with the compact 10-pin 2.6mm x 3mm x 1.5mm uSLIC™ package MAXM17900 module installed, and is rated to operate over the full industrial/automotive -40°C to +125°C temperature range. For full specifications, features and benefits of the IC, refer to the MAXM17900 data sheet.

Applications

4mA–20mA Current-Loop Powered Sensors
High-Voltage LDO Replacement
HVAC and Building Control
Industrial Sensors
Motor Encoder

Resources

MAXM17900EVKIT Gerber File - Design Files
