MAXM17630
4.5V to 36V, 1A Himalaya uSLIC Step-Down Power Module
High-Efficiency Synchronous Buck Regulator Offers Balance of High Performance, Wide Temperature Range, and Small Size
Top
Overview
Features and Benefits
- Easy to Use
- Wide 4.5V to 36V Input
- Adjustable 0.9V to 12V Output (MAXM17632)
- Fixed 3.3V and 5V output versions (MAXM17630 and MAXM17631)
- 400kHz to 2.2MHz Adjustable Frequency with External Clock Synchronization
- ±1.2% Feedback Accuracy
- Up to 1A Output Current
- Internally Compensated
- All Ceramic Capacitors
- High Efficiency
- Selectable PWM-, PFM- or DCM-Mode of Operation
- Auxiliary Bootstrap Supply (EXTVCC) for Improved Efficiency
- Shutdown Current as Low as 2.8μA (typ)
- Flexible Design
- Adjustable and Monotonic Startup with Prebiased Output Voltage
- Built-In Output-Voltage Monitoring with RESET Pin (Active Low)
- Programmable EN/UVLO Threshold
- Robust Operation
- Hiccup-Mode Overload Protection
- Overtemperature Protection
- -40°C to +125°C Ambient Operating Temperature/ -40°C to +150°C Junction Temperature
- Rugged
- Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions
- Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111
Product Details
The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power supply solutions. The MAXM17630/MAXM17631/MAXM17632 are a family of high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components and inductor that operate over a wide input-voltage range. The modules operate from 4.5V to 36V and deliver up to 1A output current. The MAXM17630 and MAXM17631 are fixed 3.3V and 5V output modules, respectively. The MAXM17632 is an adjustable output (0.9V to 12V) module. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug-and-play power-supply solution, reducing time-to-market. Built-in compensation across the output-voltage range eliminates the need for external compensation components.
These modules feature peak-current-mode control architecture. The modules can be operated in pulse-width modulation (PWM), or pulse-frequency modulation (PFM), or discontinuous-conduction mode (DCM) to enable high efficiency under light-load conditions.
The feedback-voltage regulation accuracy over -40°C to +125°C for the module family is ±1.2%. These power modules are available in a low profile, compact 16-pin, 3mm x 3mm x 1.75mm, uSLIC™ package. Simulation Models are available.
Applications
- Industrial Control Power Supplies
- General Purpose Point-of-Load
- Distributed Supply Regulation
- Base Station Power Supplies
- High Voltage Single-Board Systems
- Programmable Logic Controller
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

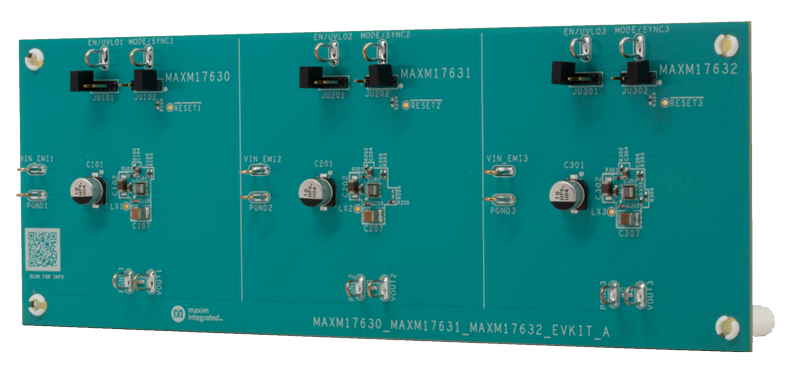

Evaluation Kits (3)
