MAXM17502

1A, 60V High-Efficiency, DC-DC Step-Down Power Module with Integrated Inductor

Highly Integrated DC-DC Power Module Enables Ease of Design and Small-Solution Footprint

Obsolete

Part Details

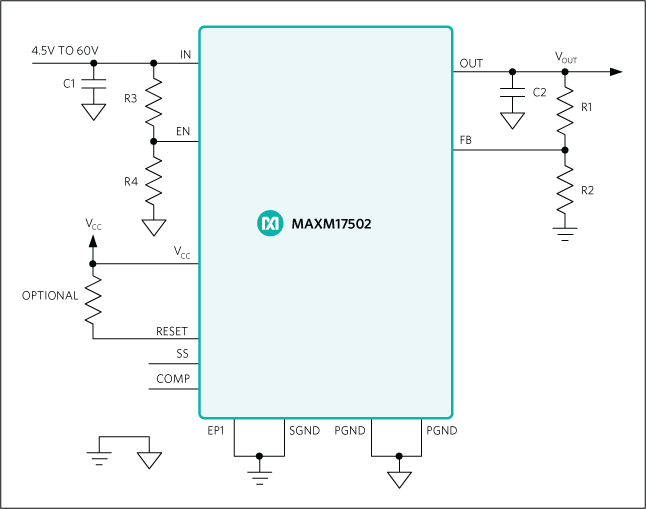

MAXM17502: Typical Application Circuit slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

Reduces Design Complexity, Manufacturing Risks, and Time to Market
- Integrated Switching Power Supply Controller and Dual-MOSFET Power Switches
- Integrated Inductor
- Integrated Compensation Components
- Integrated Thermal-Fault Protection
- Integrated Peak Current Limit
Saves Board Space in Space-Constrained Applications
- Complete Integrated Step-Down Power Supply in a Single Package
- Small Profile 6.5mm x 10mm x 2.8mm SiP Package
- Simplified PCB Design with Minimal External BOM Components
Offers Flexibility for Power-Design Optimization
- Wide Input Voltage Range from 4.5V to 60V
- Output Voltage Adjustable Range from 0.9V to 5.0V
- Delivers up to 1A Current
- Shutdown Current as Low as 0.9μA (typ)
- ±1.8% System Accuracy
- Fixed-Frequency PWM
- Programmable Soft-Start and Prebias Startup
- Optional Programmable EN/UVLO
- Robust Operation
- Open-Drain Power Good Output (Active-Low RESET pin)
- -40°C to +125°C Industrial/Automotive Temperature Range

Additional Details

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power supply solutions. The MAXM17502 is a high-voltage, step-down power module in a family of pin-to-pin compatible modules with built-in thermally efficient system-in-packages (SiPs). The device includes a switch mode power supply controller, MOSFETs, an inductor, as well as the compensation components. The device operates from a 4.5V to 60V input supply voltage and supports adjustable output voltage from 0.9V to 5.0V with an output current of 1A. The high level of integration significantly reduces design complexity, manufacturing risks, and offers a true plug-and-play power supply solution to reduce time to market.

The pin-to-pin compatibility within this family of modules allows design flexibility as the design requirements change. For sequencing purpose, the device features adjustable soft-start time, programmable EN/UVLO threshold, and a power-good indicator (Active-Low RESET pin).

The MAXM17502 is available in a thermally enhanced, compact, 28-pin, 6.5mm x 10mm x 2.8mm SiP package. It operates over the -40°C to +125°C industrial temperature range.

Applications

Battery-Powered Equipment
General-Purpose Point-of-Load
High-Voltage LDO Replacement
HVAC and Building Control
Industrial Sensors and Process Control

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Documentation

Technical Documents 2

MAXM17502: 1A, 60V High-Efficiency, DC-DC Step-Down Power Module with Integrated Inductor Data Sheet (Rev.2) 06/03/2019

MAXM17502 Reliability Data 01/12/2023

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAXM17502ALI#	28-LGA-10X6.5X2.92	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAXM17502ALI#T	28-LGA-10X6.5X2.92	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAXM17502ALI#
Pin/Package Drawing
28-LGA-10X6.5X2.92
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAXM17502ALI#T
Pin/Package Drawing
28-LGA-10X6.5X2.92
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Evaluation Kit

MAXM17502EVKIT

Evaluation Kit for the MAXM17502 in a 5V Output-Voltage Application

MAXM17502EVKIT

Evaluation Kit for the MAXM17502 in a 5V Output-Voltage Application

Features and Benefits

Highly Integrated Solution with an Integrated, Shielded Inductor
Wide 12V to 60V Input Range
Preset 5V Output Voltage
Up to 1A Output Current
High Efficiency 84% (V_IN = 24V, V_OUT = 5V at 1.0A)
540kHz Switching Frequency
Enable/UVLO Input, Resistor-Programmable UVLO Threshold
Adjustable Soft-Start Time
Open-Drain Active-Low RESET Output
Internally Compensated
Overcurrent and Overtemperature Protection
Low-Profile, Surface-Mount Components
Lead(Pb)-Free and RoHS Compliant
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAXM17502 evaluation kit (EV kit) is a demonstration circuit of the MAXM17502 high-voltage, high-efficiency, current mode, synchronous step-down DC-DC switching power module. The EV kit is designed to provide 5V with up to 1A load of current from a wide input-voltage range of 12V to 60V. The EV kit switches at an optimal 540kHz switching frequency to allow for small component and solution sizes while maintaining high performance. The EV kit provides a precision-enable input and an open-drain active-low RESET output signal to provide a simple and reliable startup sequence. The EV kit also includes optional component footprints to program different output voltages, an adjustable input undervoltage-lockout, and a soft-start time to control inrush current during startup. The MAXM17502 module data sheet provides a complete description of the part and should be read in conjunction with this evaluation kit data sheet prior to modifying the demo circuit.

Applications

Battery-Powered Equipment
General-Purpose Point-of-Load
High-Voltage LDO Replacement
HVAC and Building Control
Industrial Sensors and Process Control

Resources

ZIP

MAXM17502EVKIT ODB File - Design Files

6.61M

MAXM17502EVKIT

Evaluation Kit for the MAXM17502 in a 5V Output-Voltage Application

Tools & Simulations

EE-Sim 1

EE-Sim Power® Tools

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.
