Features and Benefits
- Wide Input Supply Range (3.0V to 20V)
- Class-DG Operation Enables Industry-Leading Quiescent Power
- 12.7mW at VPVDD = 12V , VVBAT = 3.8V
- 18mW at VPVDD = 19V, VVBAT = 5.0V
- Ultra-Low Noise Floor
- 15.5μVRMS Output Noise
- 118dB Dynamic Range
- Low Distortion
- -82dB THD+N at 1W into 8Ω, f = 1kHz
- -76dB THD+N at 1W into 8Ω, f = 6kHz
- Output Power at 1% THD+N:
- 20W into 8Ω, VPVDD = 19V
- 19W into 4Ω, VPVDD = 14V
- 60W Peak Output Power into 4Ω, VPVDD = 19V
- Speaker Amplifier Efficiency:
- 87% at 1W into 8Ω, VPVDD = 12V, VVBAT = 3.8V
- 83% at 1W into 4Ω, VPVDD = 12V, VVBAT = 3.8V
- 83% at 1W into 8Ω, VPVDD = 19V, VVBAT = 5.0V
- 91% at 20W into 8Ω, VPVDD = 19V, VVBAT = 5.0V
- Class-D EMI Reduction Enables Filterless Operation
- Spread-Spectrum Modulation
- Switching-Edge Rate Control
- Integrated Speaker Current and Voltage Sense do not Require External Components
- Flexible Brownout-Prevention Engine
- I2S/16-Channel TDM and I2C Digital Interfaces
- Playback Support for 16-, 24-, and 32-Bit Data Words
- Playback and I/V Sense Support Sample Rates up to 192kHz
- Audio Processing Bypass Path
- Dynamic-Headroom Tracking Maintains a Consistent Listening Experience
- Extensive Click-and-Pop Suppression
- 35-Bump, WLP (0.4mm Pitch)

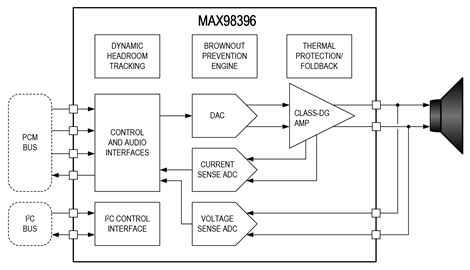

The MAX98396 is a high-efficiency, mono Class-DG speaker amplifier with industry-leading quiescent power featuring I/V sense, brownout-prevention engine (BPE), and dynamic-headroom tracking (DHT). The IC enables ultrasound applications by providing support for sample rates up to 192kHz, a higher passband (for fs > 50kHz), and a bypass path for the ultrasound signals through the amplifier so it is not attenuated by the audio processing. Precision output current and voltage monitoring (I/V sense) enables the host device to run speaker protection algorithms. Spread-spectrum modulation (SSM) and edge rate control minimize EMI and eliminate the need for the output filtering found in traditional Class-D devices.
To achieve industry-leading quiescent power, the Class-DG amplifier employs two supply rails VBAT (3V to 5.5V) and PVDD (3V to 20V) to supply the speaker amplifier. The Class-DG amplifier switches between the two supply rails depending on the input signal level and/or the supply headroom. The brownout-prevention engine in the device allows it to reduce its contribution to the overall system power consumption by either attenuating or limiting the amplifier output when the device supply drops below a set of programmable thresholds. Additionally, as the power supply voltage varies due to sudden transients and declining battery life, DHT automatically optimizes the headroom available to the Class-DG amplifier to maintain consistent distortion and listening levels.
The device provides a PCM interface for audio data and a standard I2C interface for control data communication. The PCM interface supports audio playback using I2S, left-justified, and TDM audio data formats. A unique clocking structure eliminates the need for an external master clock for PCM communication, which reduces pin count and simplifies board layout. Enabling thermal foldback automatically reduces the output power when the temperature exceeds a user specified threshold. This allows for uninterrupted music playback even at high ambient temperatures. Traditional thermal protection is also available in addition to robust overcurrent protection.
The device is available in a 0.4mm pitch, 35-bump wafer-level package (WLP). The device operates over the extended -40°C to +85°C temperature range.
- Mobile Speakers
- Smart Speakers
- Smart IoT
- Notebook Computers
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The MAX98396 evaluation system (EV system) evaluates the MAX98396 Mono Class-D Audio Amplifier featuring Dynamic Headroom Tracking (DHT) and Clock-and-Data Monitoring. The EV system consists of the MAX98396 Development Board (DEV board), Audio Interface Board III (AUDINT3), a micro-USB cable, and the MAX98396 evaluation software.
It is recommended that the DEV board be evaluated with the AUDINT3 board as an EV system. The MAX98396 supports standard I2S, left-justified, and TDM digital audio interfaces, as well as I2C for control.
The AUDINT3 board provides the USB-to-PCM and USB-to- I2C interfaces in addition to the 1.8V AVDD supply and the 1.2V DVDD and DVDDIO supplies that are needed to evaluate the DEV board. The IC DEV board requires two additional supply inputs, 3V to 5.5V (VBAT) and 3V to 20V (PVDD). Figure 1 details the DEV board and the AUDINT3 board.
- Notebook Computers
- Portable Speaker
- Smart IoT
- Smart Speaker
Features & Benefits
- Complete Hardware System with Easy Setup; No Tools or Special Equipment Required
- Easy to use Graphical User Interface (GUI) Evaluation Software (Windows® 7/10 Compatible)
- Complete Access to all Hardware Registers
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|MAX98396EWB+||Material Declaration||Reliability Data||35-WLCSP-N/A|
|MAX98396EWB+T||Material Declaration||Reliability Data||35-WLCSP-N/A|
|Wafer Fabrication Data|
