MAX9768
10W Mono Class D Speaker Amplifier with Volume Control

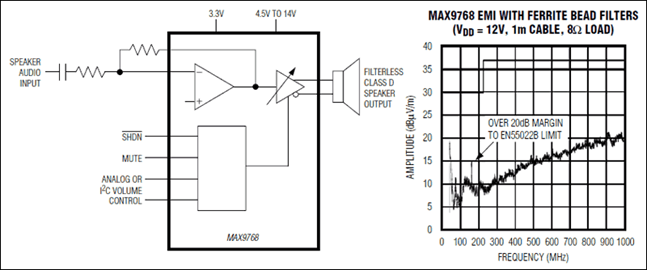

Show MoreHigh-Efficiency, Low BOM-Cost Class D Amplifier
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- 10W Output (8Ω, PVDD = 14V, THD+N = 10%)
- Spread-Spectrum Modulation
- Meets EN55022B EMC with Ferrite Bead Filters
- Amplifier Operation from 4.5V to 14V Supply
- 64-Step Integrated Volume Control (I²C or Analog)
- Low 0.08% THD+N (RL = 8Ω, POUT = 6W)
- High 77dB PSRR
- Two tON Times Offered
- MAX9768—220ms
- MAX9768B—15ms
- Low-Power Shutdown Mode (0.5µA)
- Short-Circuit and Thermal-Overload Protection
The MAX9768 mono 10W Class D speaker amplifier provides high-quality, efficient audio power with an integrated volume control function.
The MAX9768 features a 64-step dual-mode (analog or digitally programmable) volume control and mute function. The audio amplifier operates from a 4.5V to 14V single supply and can deliver up to 10W into an 8Ω speaker with a 14V supply.
A selectable spread-spectrum mode reduces EMI-radiated emissions, allowing the device to pass EMC testing with ferrite bead filters and cable lengths up to 1m. The MAX9768 can be synchronized to an external clock, allowing synchronization of multiple Class D amplifiers.
The MAX9768 features high 77dB PSRR, low 0.08% THD+N, and SNR up to 97dB. Robust short-circuit and thermal-overload protection prevent device damage during a fault condition. The MAX9768 is available in a 24-pin thin QFN-EP (4mm x 4mm x 0.8mm) package and is specified over the extended -40°C to +85°C temperature range.
Applications
- Flat-Panel Displays
- GPS Navigation Systems
- Multimedia Monitors
- Notebook Computers
- Security/Personal Mobile Radio
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX9768
Documentation
Filters
1 Applied
Data Sheet
1
Reliability Data
1
26.68K
Technical Articles
9
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
Device Drivers 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
MAX9768BETG+ | 24-TQFN-4X4X0.75 |
|
|
MAX9768BETG+T | 24-TQFN-4X4X0.75 |
|
|
MAX9768BETG/V+ | 24-TQFN-4X4X0.75 |
|
|
MAX9768BETG/V+T | 24-TQFN-4X4X0.75 |
|
|
MAX9768ETG+ | 24-TQFN-4X4X0.75 |
|
|
MAX9768ETG+T | 24-TQFN-4X4X0.75 |
|
- MAX9768BETG+
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX9768BETG+T
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX9768BETG/V+
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX9768BETG/V+T
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX9768ETG+
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX9768ETG+T
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 20, 2016
- 1612
ASSEMBLY
MAX9768BETG+
PRODUCTION
MAX9768BETG+T
PRODUCTION
MAX9768ETG+
PRODUCTION
MAX9768ETG+T
PRODUCTION
Jan 23, 2023
- 2348
DESIGN
MAX9768BETG/V+
PRODUCTION
MAX9768BETG/V+T
PRODUCTION
Jun 18, 2021
- 2161
ASSEMBLY
MAX9768BETG/V+
PRODUCTION
MAX9768BETG/V+T
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 20, 2016
- 1612
ASSEMBLY
MAX9768BETG+
PRODUCTION
MAX9768BETG+T
PRODUCTION
MAX9768ETG+
PRODUCTION
MAX9768ETG+T
PRODUCTION
Jan 23, 2023
- 2348
DESIGN
Jun 18, 2021
- 2161
ASSEMBLY
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Evaluation Kits 2
MAX9768EVCMAXQU
Evaluation Kit/Evaluation System for the MAX9768
Product Detail
The MAX9768 evaluation kit (EV kit) is a fully assembled and tested printed-circuit board (PCB) that demonstrates the capabilities of the MAX9768 mono 10W Class D speaker amplifier with volume control. The MAX9768 EV kit also includes Windows® 98SE/2000/XP-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX9768.
The MAX9768 evaluation system (EV system) consists of the MAX9768 EV kit and a companion CMAXQUSB serial-interface board. The CMAXQUSB interface board allows a PC to control an I²C interface using its USB port. Order the MAX9768 EV system (MAX9768EVCMAXQU+) for a complete PC-based evaluation of the MAX9768. Order the MAX9768 EV kit (MAX9768EVKIT+) if you already have a MAX9768-compatible serial interface.
Applications
- Flat-Panel Displays
- GPS Navigation Systems
- Multimedia Monitors
- Notebook Computers
- Security/Personal Mobile Radio
MAX9768EVKIT
Evaluation Kit/Evaluation System for the MAX9768
Product Detail
The MAX9768 evaluation kit (EV kit) is a fully assembled and tested printed-circuit board (PCB) that demonstrates the capabilities of the MAX9768 mono 10W Class D speaker amplifier with volume control. The MAX9768 EV kit also includes Windows® 98SE/2000/XP-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX9768.
The MAX9768 evaluation system (EV system) consists of the MAX9768 EV kit and a companion CMAXQUSB serial-interface board. The CMAXQUSB interface board allows a PC to control an I²C interface using its USB port. Order the MAX9768 EV system (MAX9768EVCMAXQU+) for a complete PC-based evaluation of the MAX9768. Order the MAX9768 EV kit (MAX9768EVKIT+) if you already have a MAX9768-compatible serial interface.
Applications
- Flat-Panel Displays
- GPS Navigation Systems
- Multimedia Monitors
- Notebook Computers
- Security/Personal Mobile Radio
