MAX97000
Audio Subsystem with Mono Class D Speaker and Class H Headphone Amplifier
Show More
Industry's Smallest 2mm x 2mm 25-Bump WLP Audio Subsystem with Limiter, Best Class D and H Class Headphone Amplifier
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 1.6V to 2.0V Headphone Supply Voltage
- 2.7V to 5.5V Speaker Supply Voltage
- Internal LDO Allows Single-Supply Operation
- 725mW Speaker Output (VPVDD = 3.7V, ZSPK = 8Ω + 68µH)
- 40mW/Channel Headphone Output (RHP = 16Ω)
- Low-Emission Class D Amplifier
- Efficient Class H Headphone Amplifier
- Ground-Referenced Headphone Outputs
- Two Stereo Single-Ended/Mono Differential Inputs
- Integrated Distortion Limiter (Speaker Outputs)
- Integrated DPST Analog Switch
- No Clicks and Pops
- TDMA Noise Free
- 2mm x 2mm, 25-Bump 0.4mm Pitch WLP Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

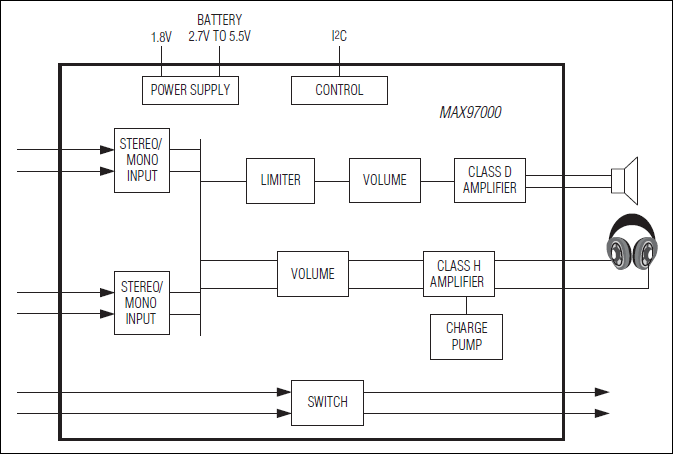

The MAX97000 audio subsystem combines a mono speaker amplifier with a stereo headphone amplifier and an analog DPST switch. The headphone and speaker amplifiers have independent volume control and on/off control. The four inputs are configurable as two differential inputs or four single-ended inputs.
The entire subsystem is designed for maximum efficiency. The high-efficiency 725mW Class D speaker amplifier operates directly from the battery and consumes no more than 1µA in shutdown mode. The Class H headphone amplifier utilizes a dual-mode charge pump to maximize efficiency while outputting a ground-referenced signal that does not require output coupling capacitors.
The speaker amplifier incorporates a distortion limiter to automatically reduce the volume level when excessive clipping occurs. This allows high gain for low-levels signals without compromising the quality of large signals.
All control is performed using the 2-wire, I²C interface. The MAX97000 operate in the extended -40°C to +85°C temperature range, and is available in the 2mm x 2mm, 25-bump WLP package (0.4mm pitch).
Applications
- Cell Phones
- Portable Multimedia Players
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX97000
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
All
-
English
Documentation
Software & Part Ecosystem
Evaluation Kits 1
MAX97000EVKIT
Evaluation Kit for the MAX97000
Features and Benefits
- 2.7V to 5.5V Single-Supply Operation
- Proven Audio PCB Layout
- On-Board USB Interface Circuit Generates I²C-Compatible Signals
- PCB Pads for User-Supplied I²C-Compatible Signals
- Surface-Mount Components
- Windows 2000-, Windows XP-, and Windows Vista (32-Bit)-Compatible Software
- Fully Assembled and Tested
Product Detail
The MAX97000 evaluation kit (EV kit) is a fully assembled and tested PCB that evaluates the MAX97000 mono Class D audio power amplifier and stereo Class H DirectDrive® headphone amplifier communicating over a 2-wire I²C interface. The EV kit features an on-board microcontroller for communicating with the I²C interface of the MAX97000. Pads are provided for accessing the analog inputs and amplifier outputs.
The MAX97000 EV kit requires a 2.7V to 5.5V power supply. The on-chip LDO generates an internal 1.8V supply from the 2.7V to 5.5V supply.
Windows® 2000-, Windows XP®-, and Windows Vista®-compatible software is provided to facilitate configuration. The software controls an on-board microcontroller over USB, which generates I²C commands.
Applications
- Cell Phones
- Portable Multimedia Players
