Features and Benefits

  • Complete Charger and Smart Power Selector
  • No External MOSFETs Required
  • Common or Separate USB and Adapter Inputs
  • System Operates with Discharged or No Battery
  • Automatic Adapter/USB/Battery Switchover
  • Load Peaks Over Adapter Rating Are Supported by Battery
  • Input Overvoltage Protection to 16V
  • 40mΩ System-to-Battery Switch
  • Thermal Regulation Prevents Overheating
  • Active-Low PREQ, Active-Low CHG, Active-Low DOK, Active-Low UOK, and Active-Low FLT Indicators
  • 4.35V (typ) SYS Regulation Voltage

Product Details

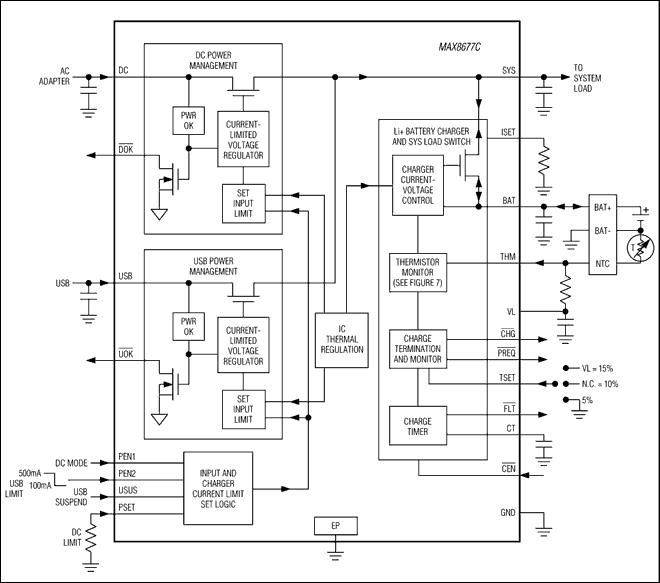

The MAX8677C is an integrated 1-cell Li+ charger and Smart Power Selector™ with dual (DC and USB) power inputs. It can operate with either separate inputs for USB and AC adapter power*, or from a single input that accepts both. All power switches for charging and switching the load between battery and external power are included on-chip. No external MOSFETs are required.

The MAX8677C features a Smart Power Selector to make the best use of limited USB or adapter power. The battery charge current and input current limit are independently set up to 1.5A and 2A, respectively. Input power not used by the system charges the battery. USB input current can be set to 100mA or 500mA. Automatic input selection switches the system load from battery to external power.

Other features include overvoltage protection (OVP), charge status and fault outputs, power-OK monitors, charge timer, and battery thermistor monitor. Additionally, on-chip thermal limiting reduces the battery charge rate to prevent overheating. The MAX8677C is available in a 4mm x 4mm, 24-pin TQFN-EP package.


  • Digital Cameras
  • GPS Navigation
  • PDAs, Palmtops, and Wireless Handhelds
  • Portable Media/MP3 Players
  • Smart Cell Phones

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Product Recommendations

MAX8677C Companion Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX8677CETG+ Material Declaration Reliability Data 24-LFCSP-4X4X0.75
MAX8677CETG+T Material Declaration Reliability Data 24-LFCSP-4X4X0.75
Wafer Fabrication Data MAX8677C Reliability Data
