MAX8662

Obsolete

Power-Management ICs for Single-Cell, Li+ Battery-Operated Devices

7-Channel Integrated PMICs Include Charger with Smart Power Control and Allow the System to Operate Without a Battery

Part Models
3
1ku List Price
price unavailable
Viewing:

Part Details

  • Two 95%-Efficient 1MHz Buck Regulators
    • Main Regulator: 0.98V to VIN at 1200mA
    • Core Regulator: 0.98V to VIN at 900mA
  • 1MHz Boost WLED Driver
    • Drives Up to 7 White LEDs at 30mA (max)
    • PWM and Analog Dimming Control
  • Four Low-Dropout Linear Regulators
    • 1.7V to 5.5V Input Range
    • 15µA Quiescent Current
  • Single-Cell Li+ Charger
    • Adapter or USB Input
    • Thermal-Overload Protection
  • Smart Power Selector (SPS)
    • AC Adapter/USB or Battery Source
    • Charger-Current and System-Load Sharing
MAX8662
Power-Management ICs for Single-Cell, Li+ Battery-Operated Devices

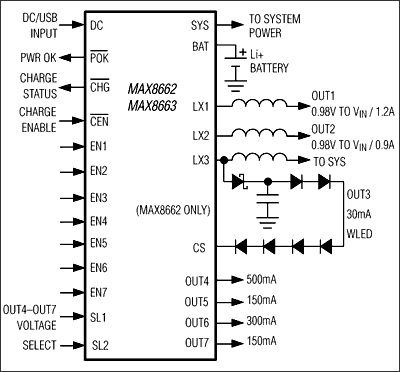

MAX8662, MAX8663: Typical Operating Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

MAX8662EVKIT

MAX8662 Evaluation Kit

Features and Benefits

  • Two 95%-Efficient 1MHz Synchronous Rectified Step-Down Regulators
  • One 1MHz Step-Up WLED Driver
  • Four LDO Regulators with Jumper-Selectable Output Voltages
  • Single-Cell Li+ Charger
  • Smart Power Selector (SPS)
  • Power-OK, Charger Status, and Timeout Fault Indicators
  • LED Analog Brightness and PWM Dimming Control
  • 48-Pin, 6mm x 6mm x 0.8mm Thin QFN IC Package
  • Fully Assembled and Tested

Product Details

The MAX8662 evaluation kit (EV kit) is a fully assembled and tested printed-circuit board (PCB) that evaluates the MAX8662 power-management IC. The MAX8662 integrates two synchronous rectified step-down regulators, a step-up regulator driving two to seven white LEDs (WLEDs), four low-dropout linear regulators (LDOs), and a linear charger for a single-cell Li-ion (Li+) battery. Maxim's Smart Power Selector™ (SPS) safely distributes power between an external power source (AC adapter, auto adapter, or USB source), battery, and the system load.

Applications

  • 3G Smart cellular phones
  • Other Handheld Devices
  • PDAs, portable media players (PMPs)
  • Portable GPS Navigation Devices (PNDs)

MAX8663EVKIT

Evaluation Kit for the MAX8663

Features and Benefits

  • Two High-Efficiency 1MHz Synchronous Rectified Step-Down Regulators
  • Four LDO Regulators with Jumper-Selectable Output Voltages
  • Single-Cell Li+/Li-Polymer Charger
  • Smart Power Selector (SPS)
  • Power-OK, Charger Status, and Timeout Fault Indicators
  • 40-Pin, 5mm x 5mm x 0.8mm Thin QFN Package
  • Fully Assembled and Tested

Product Details

The MAX8663 evaluation kit (EV kit) is a fully assembled and tested circuit board that evaluates the MAX8663 power-management IC. The MAX8663 integrates two synchronous step-down regulators, four low-dropout linear regulators (LDOs), and a linear charger for a single-cell Li-ion (Li+)/Li-polymer battery. Maxim's Smart Power Selector™ (SPS) safely distributes power between an external power source (AC adapter, auto adapter, or USB source), battery, and the system load.

Applications

  • 3G Smart cellular phones
  • Other Handheld Devices
  • PDAs, portable media players (PMPs)
  • Portable GPS Navigation Devices (PNDs)

MAX8662EVKIT
MAX8662 Evaluation Kit
MAX8663EVKIT
Evaluation Kit for the MAX8663
