Overview

Features and Benefits

  • Electrocardiogram (ECG) Optimized for Dry Electrode Operation
  • Reflective Heart Rate Monitor and Medical-Grade Pulse Oximeter
  • Miniature 3.3mm x 5.6mm x 1.3mm 22-pin Optical Module
    • Optical-Grade Glass for Long-Term Optimal and Robust Performance
  • Ultra-Low Power Operation for Mobile Devices
    • Ultra-Low Shutdown Current (0.7μA Typical)
  • High SNR and Robust Ambient Light Cancellation
  • -40°C to +85°C Operating Temperature Range

Product Details

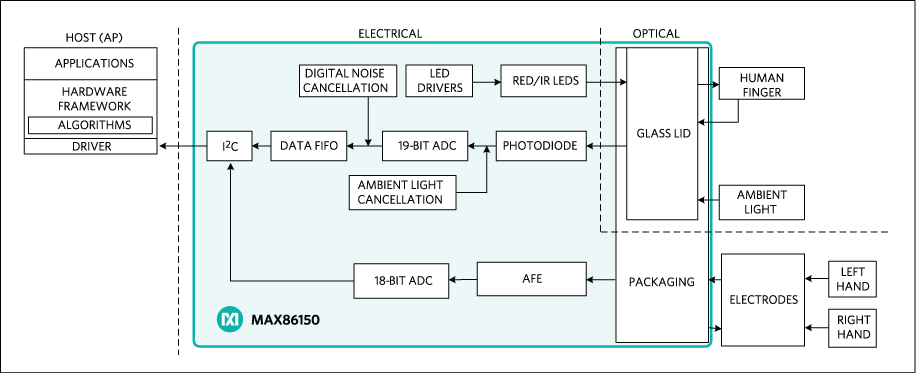

The MAX86150 is an integrated electrocardiogram, pulse oximeter, heart rate monitor sensor module. It includes internal LEDs, photodetector, and low-noise electronics with ambient light rejection. The MAX86150 helps ease design-in to mobile and wearable devices.

The MAX86150 operates on a 1.8V supply voltage with a separate power supply for the internal LEDs. Communication to and from the module is entirely through a standard I2C-compatible interface. The module can be shut down through software with near zero standby current, allowing the power rails to remain powered at all times.

Applications

  • Fitness Assistant Devices
  • Smartphones
  • Tablets
  • Wearable Devices

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
