Features and Benefits

  • Precision 4.65V Voltage Monitoring
  • 200ms Power-OK/Reset Time Delay
  • Independent Watchdog Timer-Preset or Adjustable
  • 1µA Standby Current
  • Power Switching
    • 250mA Output in VCC Mode
    • 25mA Output in Battery-Backup Mode
  • On-Board Gating of Chip-Enable Signals
    • Memory Write-Cycle Completion
    • 6ns CE Gate Propagation Delay
  • MaxCap™ or SuperCap™ Compatible
  • Voltage Monitor for Power-Fail or Low-Battery Warning
  • Backup-Battery Monitor
  • Guaranteed RESET-bar Valid to VCC = 1V

Product Details

The MAX791 microprocessor (µP) supervisory circuit reduces the complexity and number of components needed to monitor power-supply and battery-control functions in µP systems. The 50µA supply current makes the MAX791 ideal for use in portable equipment, while the 6ns chip-enable propagation delay and 250mA output capability (25mA in battery-backup mode) make it suitable for larger, higher-performance equipment.

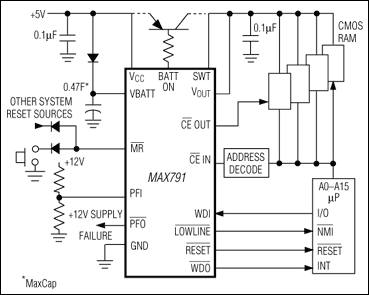

The MAX791 comes in 16-pin DIP and narrow SO packages and provides the following functions:

  1. µP reset-RESET-bar output is asserted during power-up, power-down, and brownout conditions, and is guaranteed to be in the correct state for VCC down to 1V, even with no battery in the circuit.
  2. Manual-reset input.
  3. A 1.25V threshold detector provides for power-fail warning and low-battery detection, or monitors a power supply other than +5V.
  4. Two-stage power-fail warning-a separate low-line comparator compares VCC to a threshold 150mV above the reset threshold.
  5. Backup-battery switchover for CMOS RAM, real-time clocks, µPs, or other low-power logic.
  6. Software monitoring of backup-battery voltage.
  7. A watchdog-fault output is asserted if the watchdog input has not been toggled within either a preset or an adjustable timeout period.
  8. Write protection of CMOS RAM or EEPROM.
  9. Pulsed watchdog output, to give advance warning of impending WDO-bar assertion caused by watchdog timeout.


  • Computers: Desktop, Workstation, Server
  • Controllers
  • Critical µP Monitoring
  • Intelligent Instruments
  • Portable Battery-Powered Equipment
