MAX77720

RECOMMENDED FOR NEW DESIGNS

Wide Output-Voltage Range, Dual-Polarity PMIC

Dual Polarity PMIC with Boost and Inverted Buck-Boost Regulator

Viewing:

Overview

  • 2.5V to 5.5V Input Voltage Range
  • Programmable Output-Voltage Range (Up to +20V and Down to -24V)
  • Flexible and Configurable
    • I2C Interface
    • Factory OTP Settings Available
    • Programmable Turn-On and -Off Delay Between Rails
  • 1.2V to 3.6V VIO-Compatible
  • True Shutdown™ for Boost
  • Programmable Peak Current Limit for Boost (Up to 1A and Down to 0.5A)
  • Thermal-Shutdown Protection
  • Fault-Condition Flag
  • Error Pin for External Sensor Fault Condition
  • Controlled Inrush Current During Soft-Start
  • -40°C to +125°C Operating Temperature Range
  • Small Size
    • 3.86mm2 Wafer-Level Package (WLP)
    • 20-Bump, 0.4mm-Pitch, 5 x 4 Array

The MAX77720 dual-output DC-DC converter generates two independently regulating positive and negative supply voltages. The positive output delivers up to 4W of power at the output while the negative output delivers up to 4.8W of power. The MAX77720 is ideal for powering time of flight (ToF) imaging sensors and OLED displays in smart internet of things (IoT) devices.

The MAX77720 generates an adjustable negative output down to -24V and a positive output voltage up to +20V. The negative output operates at a fixed 1.5MHz frequency while the positive output operates at a fixed 1MHz frequency to ease noise filtering in sensitive applications and to reduce external component size.

The nERR pin, when connected to an external device’s output pin, is used to disable the regulators to signal an external error. This error can be cleared through I2C from a host processor to re-enable the regulators. While in the error on state, there is an option for the active discharge to be enabled or disabled (for example, to set the regulator outputs to a high-Z floating).

A bidirectional I2C serial interface allows for configuring and checking the status of the devices. Numerous factory-programmable options allow the device to be tailored for many applications, enabling faster time to market.

APPLICATIONS

  • ToF Sensors
  • OLED Displays
  • Bipolar Amplifiers

MAX77720
Wide Output-Voltage Range, Dual-Polarity PMIC

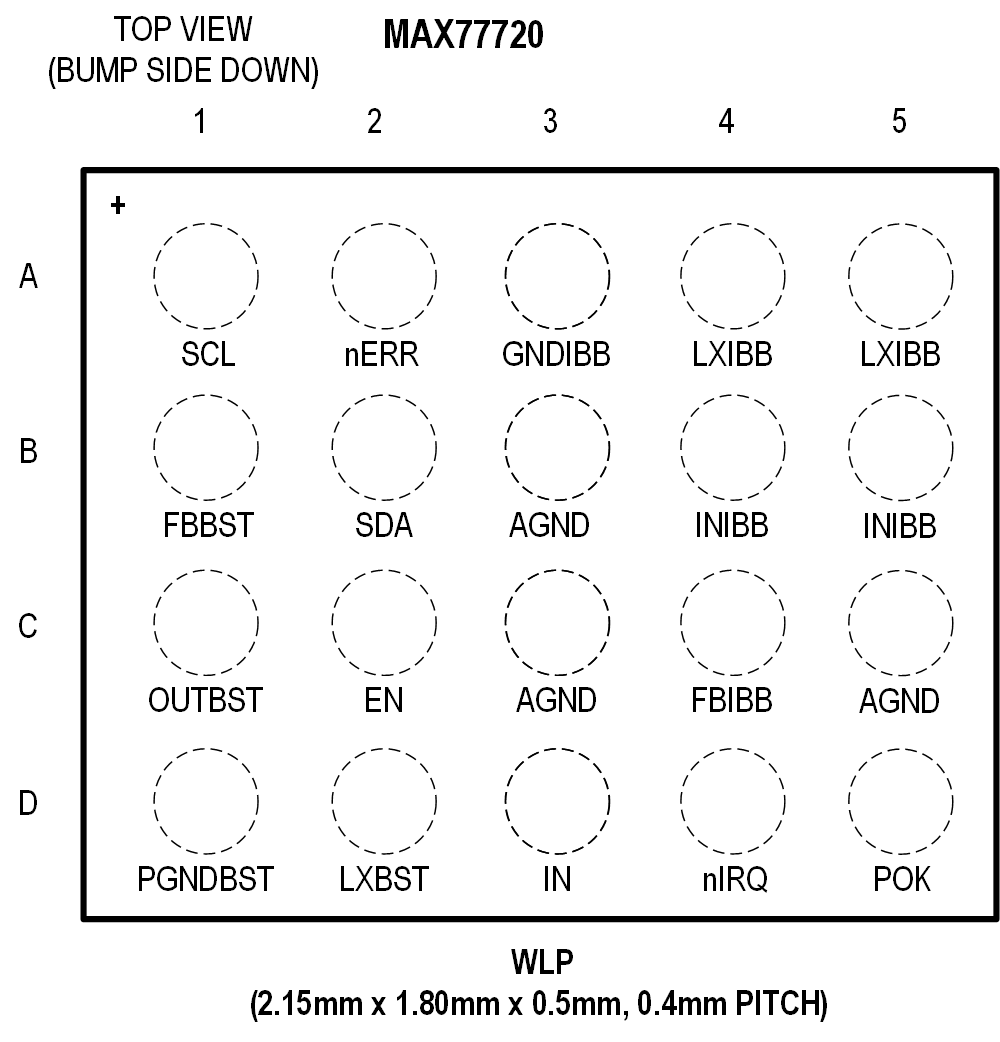

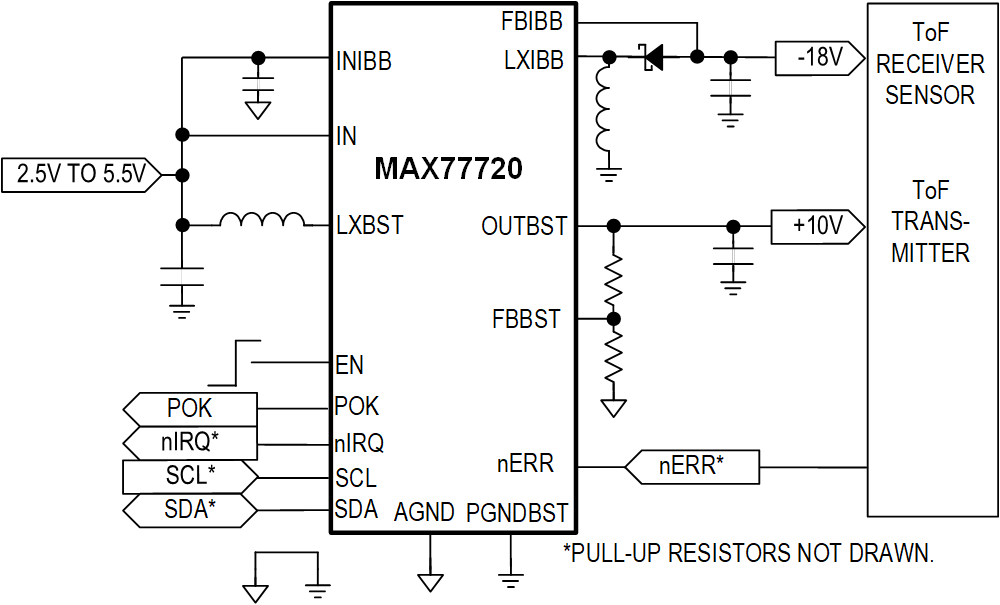

MAX77720 Simplified Application Diagram MAX77720 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

Software Development 1


Evaluation Kits

eval board
MAX77720EVKIT

Evaluation Kit for MAX77720

Features and Benefits

  • Easy to Use
  • GUI-Driven I2C Interface
  • Assembled and Fully Tested
  • 3.3V, 1.8V, 1.2VIO Compatible
  • On-Board Electronic Loads
    • Steady-State, Transient, and Random Modes

Product Details

The MAX77720 evaluation kit (EV kit) allows for easy experimentation with various MAX77720 features, including a dual output, DC-DC converter that generates an adjustable positive and an adjustable negative output, a nERR pin, and an I2C interface. Windows®-based software provides a user-friendly graphical interface as well as a detailed register-based interface to exercise the features of the MAX77720.

Windows-based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from the Analog Devices website at https://www.analog.com/max77720evkit. Windows 7 or newer Windows operating system is required to use the EV kit software.

MAX77720EVKIT
Evaluation Kit for MAX77720

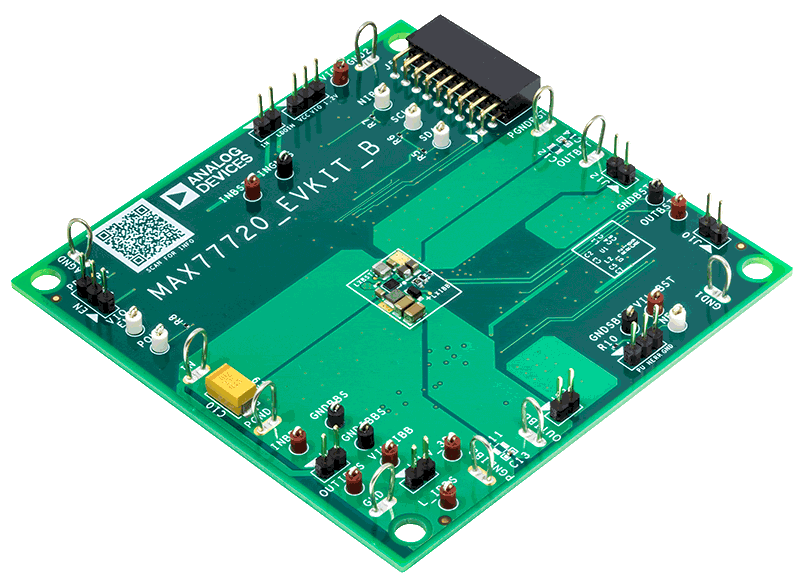

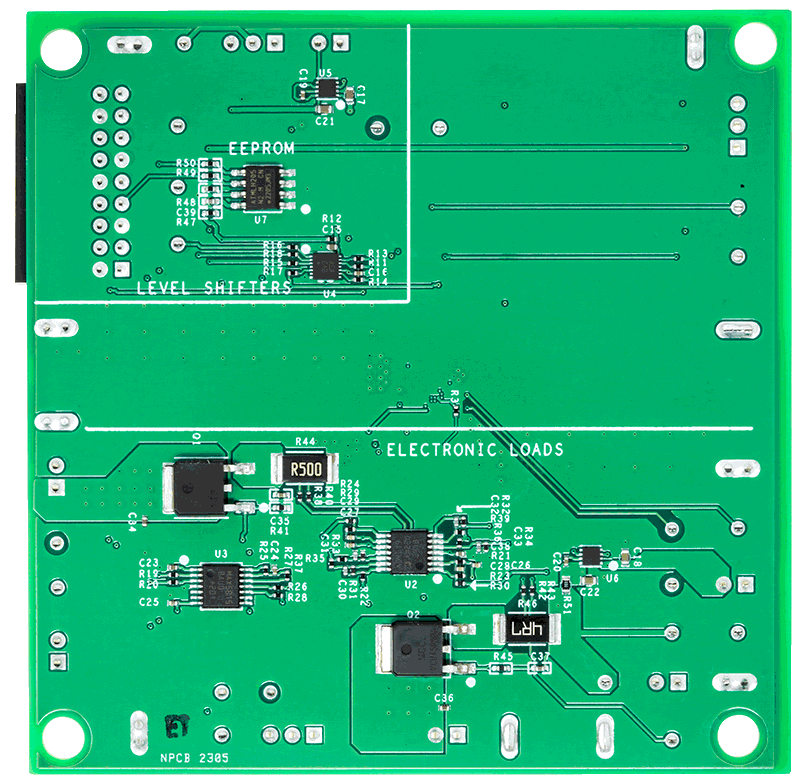

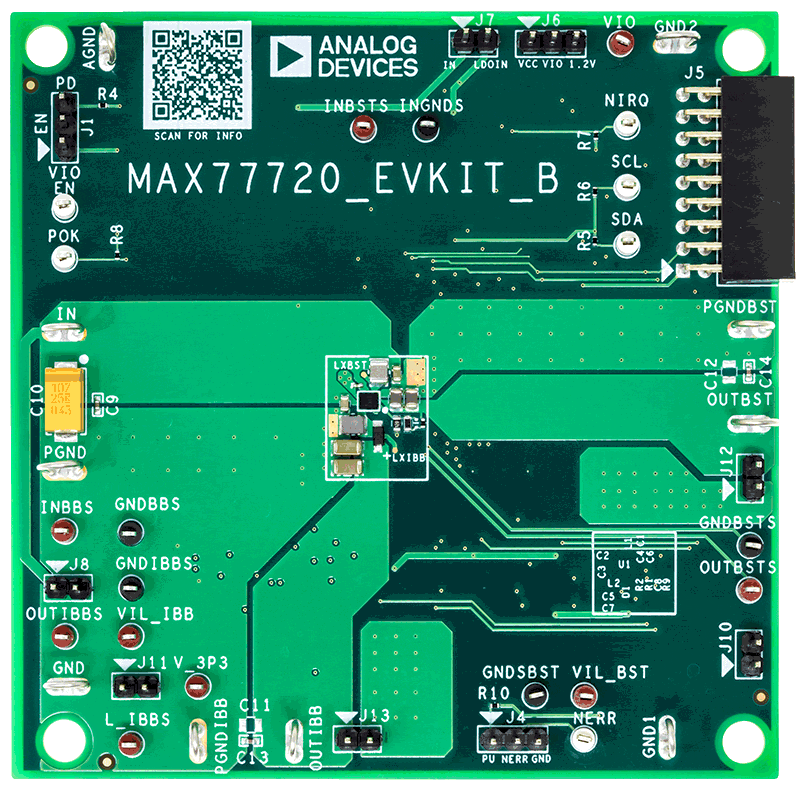

MAX77720EVKIT Simplified Block Diagram MAX77720EVKIT  Board Photo Angle MAX77720EVKIT Board Photo Top MAX77720EVKIT Board Photo Bottom
