MAX77291

High-Voltage Micropower Boost Converter with 50mA Input Current Limit

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $0.63
Features
  • 28μA Quiescent Supply Current from Input
  • Output Short Circuit Protection
  • Overtemperature Protection
  • True Shutdown Mode
    • 13nA Shutdown Current
    • No Reverse Current from OUT
  • 90% Peak Efficiency
  • 1.8V to 5.5 V Input Range
  • 5.5V to 20V Output Voltage Range
  • 100mA Peak Inductor Current Limit
  • 1.27mm x 0.87mm 6-Bump WLP (3 x 2, 0.4mm Pitch) Package
  • -40°C to +125°C Temperature Range
Additional Details
show more Icon

The MAX77291 is a low-quiescent-current boost (step-up) DC-DC converter with a 100mA peak inductor current limit and True Shutdown™. True Shutdown disconnects the output from the input with no forward or reverse current. The output voltage is set with an external resistor-divider. The output voltage can be widely varied between 5.5V and 20V.

The MAX77291 is available in a 6-bump, 0.4mm pitch, wafer-level package (WLP).

APPLICATIONS

  • Primary Cell Portable Systems
  • Battery-Powered Medical Equipment
  • Tiny, Low-Power Internet of Things (IoT) Sensors
  • Low-Power Wireless Communication Products
  • Secondary-Cell Portable Systems
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $0.63
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX77291

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 07/11/2024
English

MAX77291: High-Voltage Micropower Boost Converter with 50mA Input Current Limit Data Sheet (Rev.0)

Open PDF File

redirect
765.12 K
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX77291ANT+ 6-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX77291ANT+T 6-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 1

reference details image

MAX77291EVKIT

Evaluation Kit for the MAX77291

zoom

MAX77291EVKIT

Evaluation Kit for the MAX77291

download icon

Download

 print icon

Print

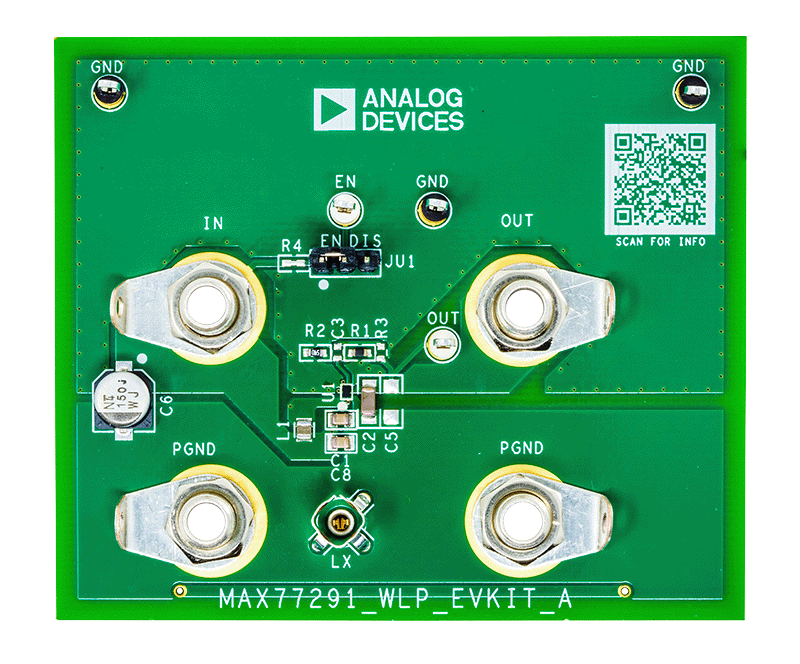

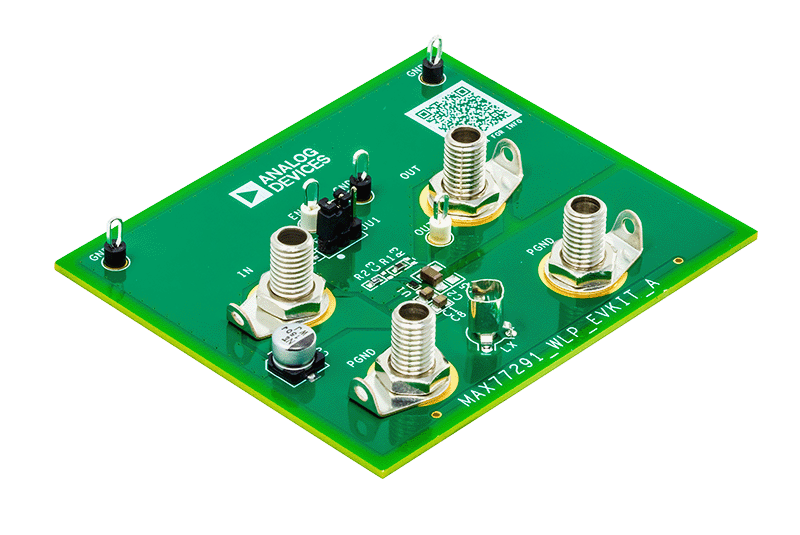

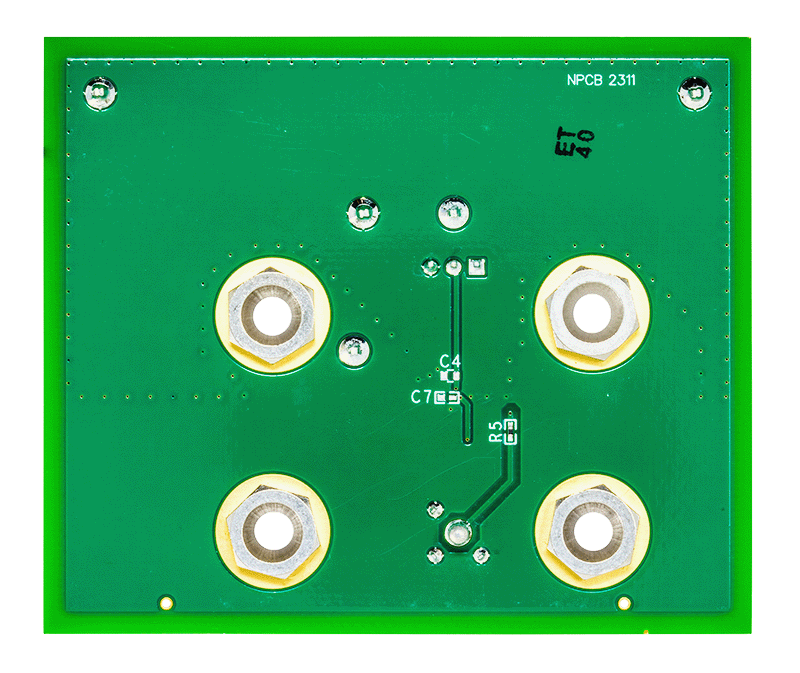

MAX77291EVKIT
Evaluation Kit for the MAX77291

Features and Benefits

  • Evaluates the MAX77291 IC
  • 1.27mm x 0.87mm 6-Bump WLP (3 x 2, 0.4mm Pitch)Package
  • 1.8V to 5.5V Input Range
  • 5.5V to 20V Configurable Output Voltage
  • Up to 100mA Input Peak Current
  • Proven 2-Layer, 1.5oz Copper Printed Circuit Board(PCB) Layout
  • Demonstrates Compact Solution Size
Buy Now View Details

Product Detail

The MAX77291 evaluation kit (EV kit) evaluates the MAX77291 IC packaged in a wafer-level package (WLP). The MAX77291 is a low quiescent-current boost (step-up) DC-DC converter with a 100mA peak inductor current limit,True Shutdown™, and short-circuit protection. The EV kitoperates over an input range of 1.8V to 5.5V and providesresistor-configurable output voltages from 5.5V to 20V.The EV kit comes with the MAX77291ANT+ installed.

Resources

pdf icon

ZIP

MAX77291EVKIT Gerber Files Download

770.26 K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

MAX77291EVKIT

Evaluation Kit for the MAX77291
