MAX7375

3-Pin Silicon Oscillator

Show More showmore-icon

Low-Cost, 3-Pin Silicon Oscillator Resistant to EMI, Vibration, and Humidity; Replaces Crystals and Ceramic Resonators

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 11
1ku List Price Starting From $0.95
Features
  • 2.7V to 5.5V Operation
  • Factory-Trimmed Oscillator (600kHz to 9.99MHz)
  • No External Components Required
  • ±10mA Output Drive Current
  • 2% Initial Accuracy
  • ±50ppm/°C Temp Drift
  • Fast Startup Time: 5µs
  • 40% to 60% Maximum Duty Cycle
  • 5ns Output Rise and Fall Time-Low EMI
  • Very Low EMI Susceptibility-No High-Impedance Nodes
  • Very Low Jitter: 160psP-P at 8MHz
  • Tiny Surface-Mount Package (SC70)
  • -40°C to +125°C Temperature Range
Additional Details
show more Icon

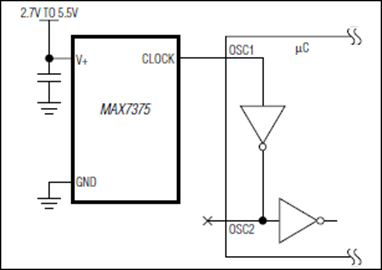

The MAX7375 is a silicon oscillator, intended as a low-cost improvement replacing ceramic resonators, crystals, and crystal oscillator modules used as the clock source for microcontrollers and UARTs in 3V, 3.3V, and 5V applications.

The MAX7375 is a fully integrated oscillator, supplied at specific factory-trimmed frequencies with a rail-to-rail 50% duty cycle square-wave output. The oscillator frequency is generated directly without the use of a phase-locked loop (PLL). No additional components are used to set or adjust the frequency.

Unlike typical crystal and ceramic resonator oscillator circuits, the MAX7375 is highly resistant to vibration and EMI. The high output drive current and absence of high-impedance nodes also makes the oscillator less susceptible to dirty or humid operating conditions. With a wide operating temperature range, the oscillator is a good choice for demanding home appliance environments.

Available in 3-pin space-saving SC70 package, the MAX7375 is offered in standard and nonstandard factory-set frequencies ranging from 600kHz to 9.99MHz. See the MAX7381 data sheet for frequencies ≥ 10MHz. The MAX7375’s standard operating temperature range is -40°C to +125°C. See the Applications Information section, in the full data sheet, for extended operating temperature range.

Applications

  • Appliances and Controls
  • Hand-Held Products
  • Microcontroller Systems
  • Portable Equipment
  • White Goods
Part Models 11
1ku List Price Starting From $0.95
