MAX6078A

RECOMMENDED FOR NEW DESIGNS

Low-Power, Low-Drift, Low-Noise Voltage Reference

High System Performance Reference in Tiny WLP Package with 15uA Iq for Small Space and Battery Critical Systems

Data Sheet (Rev. 3)
Product Selection Table
Viewing:

Overview

  • ±0.04% Initial Accuracy
  • 10ppm/°C (max) Temperature Drift
  • 12µVP-P Noise (0.1Hz to 10Hz) at 2.5V
  • 15µA Supply Current
  • Long-Term Drift: 16ppm (typ, 4000hrs)
  • 3mA Source/Sink Load Current
  • Filter Option Reduces High-Frequency Noise
  • 100mV Dropout Voltage
  • 1.5mm x 1.3mm (0.5mm pitch), 6-Bump WLP and 2mm x 3mm, 8-Pin TDFN-EP Packages
  • Voltage Output Options: 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V

The MAX6078 precision voltage reference family provides low drift and low noise at a maximum power supply current of only 15µA. Low-frequency noise is less than 12µVP-P (2.5V output voltage option) and the temperature coefficient of the output voltage is less than 10ppm/°C.

The reference output can sink and source up to 3mA of load current and the top grade provides an initial accuracy of 0.04%. The low-drift and low-noise specifications enable enhanced system accuracy, making these devices ideal for high-precision industrial applications. A noise reduction (NR) input pin allows connection of an external capacitor to reduce wideband noise. Available output voltages include 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V.

The tiny, 6-bump WLP and small, 8-pin TDFN-EP packages are suitable for systems where circuit board area is limited. The operating input voltage can range from 2.3V to 5.5V. Operation is specified over the extended industrial temperature range of -55°C to +125°C.

Applications

  • High-Accuracy Industrial and Process Control
  • High-Resolution ADCs and DACs
  • Portable and Handheld systems
  • Precision Instrumentation
MAX6078A
Low-Power, Low-Drift, Low-Noise Voltage Reference

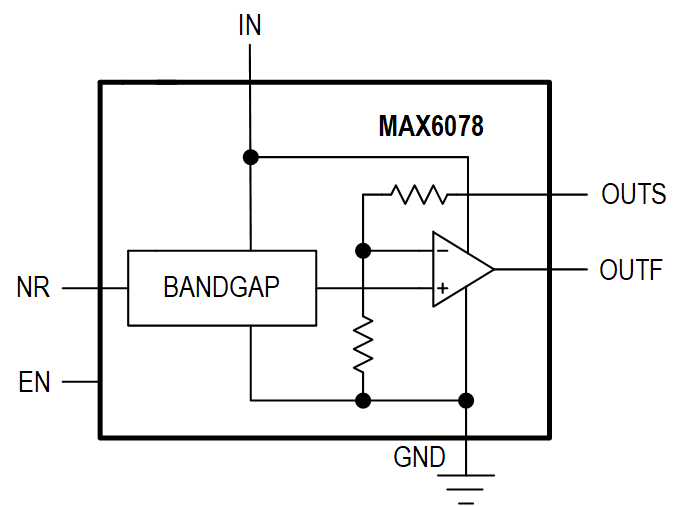

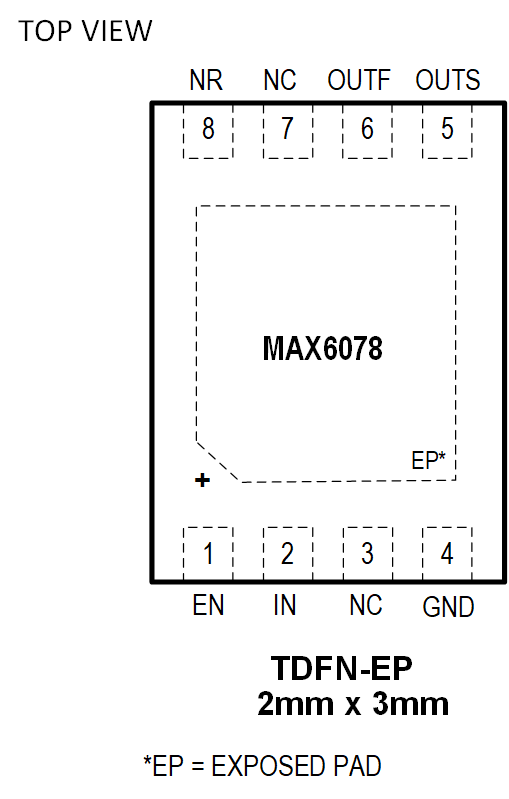

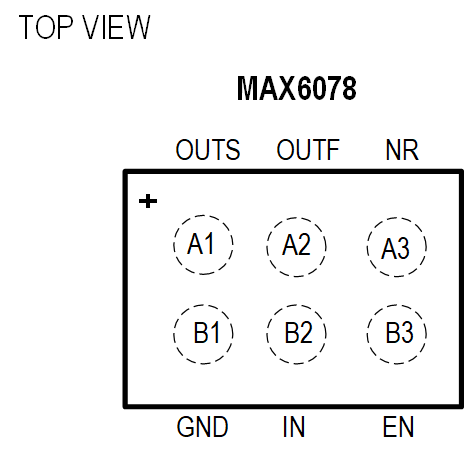

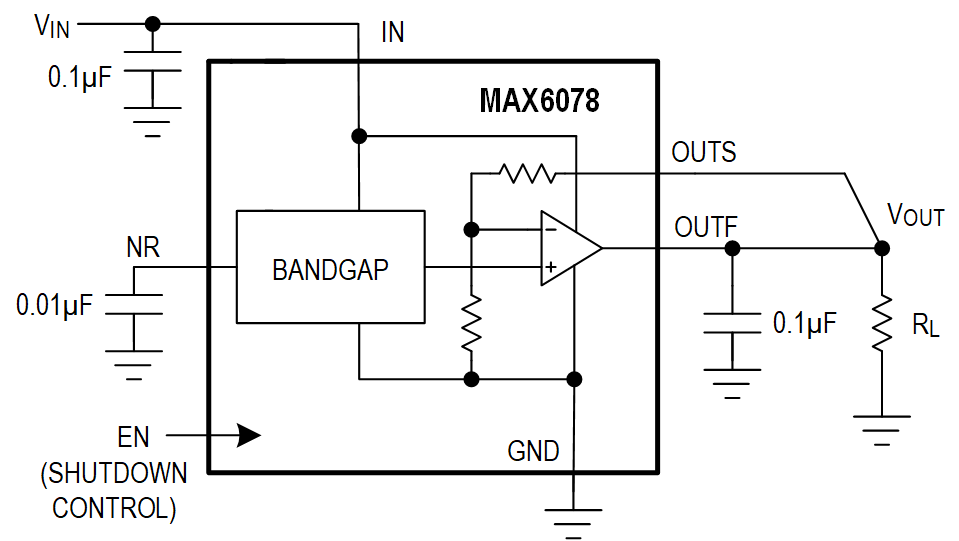

MAX6078A Simplified Block Diagram MAX6078A Typical Operating Circuit MAX6078A Pin Configuration WLP MAX6078A Pin Configuration TDFN EP
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Voltage References 2
MAX6012
PRODUCTION Precision, Low-Power, Low-Dropout, SOT23-3 Voltage References
MAX6070
PRODUCTION Low-Noise, High-Precision Series Voltage References
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

SPICE Model 1

Evaluation Kits

eval board
schematic 1
MAX6078EVKIT

Evaluation Kit for the MAX6078A

Buy Now View Details

Features and Benefits

  • 2.3V to 5.5V Input Supply Range
  • Output Options: 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V.
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Evaluate any Devices of the MAX6078 Family

Product Details

The MAX6078 evaluation kit (EV kit) is a fully assembled and tested circuit board for evaluating the MAX6078 family of low-power, low-noise, low-drift voltage references. The EV kit features footprints for both 6-bump WLP and 8-pin TDFN-EP surface-mount packages to evaluate any part in the reference family. These references operate from a single 2.3V to 5.5V supply and provide output options of 1.25V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V.

The EV kit comes with a 6-bump WLP, 2.5V output (MAX6078AMWT25+) installed on the U1 footprint, while the TDFN-EP U2 (MAX6078AMTA25+) is a future product. This EV kit can also be used to evaluate any devices in the MAX6078 family.

Applications

  • High-Accuracy Industrial and Process Control
  • High-Resolution ADCs and DACs
  • Portable and Handheld systems
  • Precision Instrumentation
MAX6078EVKIT
Evaluation Kit for the MAX6078A
MAX6078EVKIT: Board Photo
