MAX5992B

Multisource, High-Power, High-Performance Powered Device Controllers

Show More showmore-icon

Flexible, High-Power PD Devices Deliver Up to 200W

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 2
1ku List Price Starting From $1.89
Features
  • IEEE 802.3af/at Compliant
  • UPoE Compatible
  • High-Power 2x2P/Multi-PD Synchronization/Multi-PD Redundancy
  • Integrated Active FET Bridge Control and Back-Powering Protection
  • Selectable UVLO for Medical/Industrial Applications
  • 2-Level Inrush-Current Control
  • Intelligent MPS
  • Simplified Wall Adapter Interface for Seamless Power Transition
  • Ultra-Low-Power/Sleep Mode
  • 2-Event Classification or an External Wall Adapter Indicator Output
  • PoE Classification 0 to 5
  • Gate Driver for External Isolation MOSFET
  • Selectable Current Limit and Foldback
  • RJ45 12V Supply Input
  • 6.5s Sleep Mode Delay
Additional Details
show more Icon

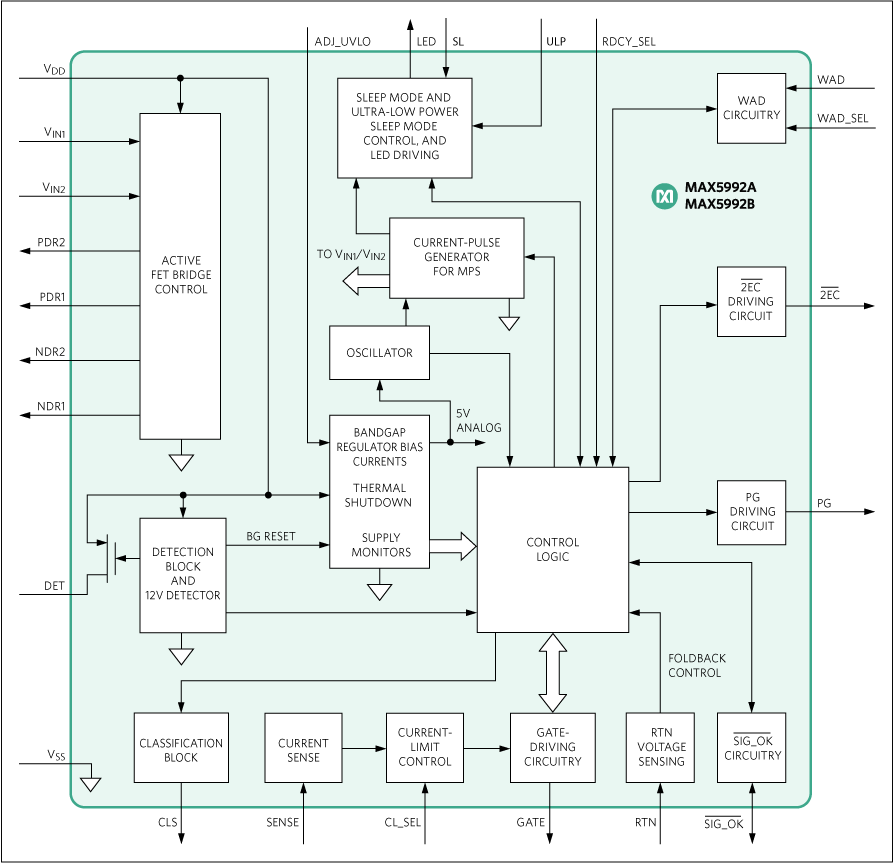

The MAX5992A/MAX5992B multisource, high-power, high-performance powered device (PD) controllers provide a complete interface control for PDs to comply with the IEEE® 802.3af/at standard in a Power-over-Ethernet (PoE) system. The devices provide the PD with a detection signature, classification signature, and an isolation MOSFET driver with current-limit control. In addition, the intelligent maintain power signature (MPS) and active FET bridge control make the PD more power efficient. The devices feature a active-low SIG_OK output signal for high-power Multi-2P PD applications. The selectable inrush-current modes allow Multi-PD, fiber-to-the-home/fiber-to-the-building (FTTH/FTTB) operation in redundancy applications. The devices feature an input UVLO, wide hysteresis, and long deglitch time to compensate for twisted-pair cable resistive drop to assure glitch-free transition during power-on/power-off conditions. The devices can operate from a 20.8V low-voltage supply by a selectable UVLO. The devices can withstand up to 100V at the input.

The devices support a 2-Event classification method as specified in the IEEE 802.3at standard and provide a signal to indicate when probed by Type 2 power-sourcing equipment (PSE). The devices detect the presence of a wall adapter power-source connection and allow a smooth switchover from the PoE power source to the wall power adapter. Moreover, the selectable WAD_SEL supports seamless power transition from a wall adapter to PoE if PoE is already enabled.

The devices also provide a power-good (PG) signal, 2-level current limit, foldback, and overtemperature protection. A sleep mode feature provides low-power consumption while supporting MPS. An ultra-low power sleep mode feature further reduces power consumption to comply with ultra-low power requirements while still supporting MPS. The devices also feature an LED driver that is automatically activated during sleep/ultra-low power sleep/MPS mode. The MAX5992A has 38.6V PoE UVLO and the MAX5992B has 35.4V PoE UVLO and feature a 6.5s sleep mode delay.

The MAX5992A/MAX5992B are available in a 24-pin, 4mm x 4mm, TQFN power package and are rated over the -40°C to +85°C extended temperature range.

Applications

  • Femtocell, Picocell, Microcell
  • Fiber-to-the-Home/Building (FTTH/FTTB)
  • High-Power 2x2P PD
  • IEEE 802.3af/at-Powered Devices (PD)
  • IP Phones
  • IP Security Cameras (IPC)
  • Multi-PD Redundancy
  • Universal Power-over-Ethernet (UPoE)
  • WiMAX® Base Stations
  • Wireless Access Nodes
Part Models 2
1ku List Price Starting From $1.89

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX5992BETG+
  • HTML
  • HTML
MAX5992BETG+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 16, 2020

- 1770

WAFER FAB

MAX5992BETG+

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 16, 2020

- 1770

arrow down

WAFER FAB

MAX5992BETG+

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

MAX5992AEVKIT

Evaluation Kit for the MAX5992A/MAX5992B

zoom

MAX5992AEVKIT

Evaluation Kit for the MAX5992A/MAX5992B

Evaluation Kit for the MAX5992A/MAX5992B

Features and Benefits

  • IEEE 802.3af/at-Compliant PD Interface Circuit
  • -39V to -57V Startup Input Voltage Range
  • Active FET Bridge
  • Demonstrates 2x2P PD and Multi-PD Redundancy Configurations
  • Demonstrates an Isolated 100W Active-Clamped, Synchronous-Rectified Forward DC-DC Converter
  • Isolated +12V Output at 8.4A
  • PD Detection and Configurable Classification Signatures
  • Internal UVLO at +38.6V
  • Evaluates End Span and Midspan Ethernet Systems
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

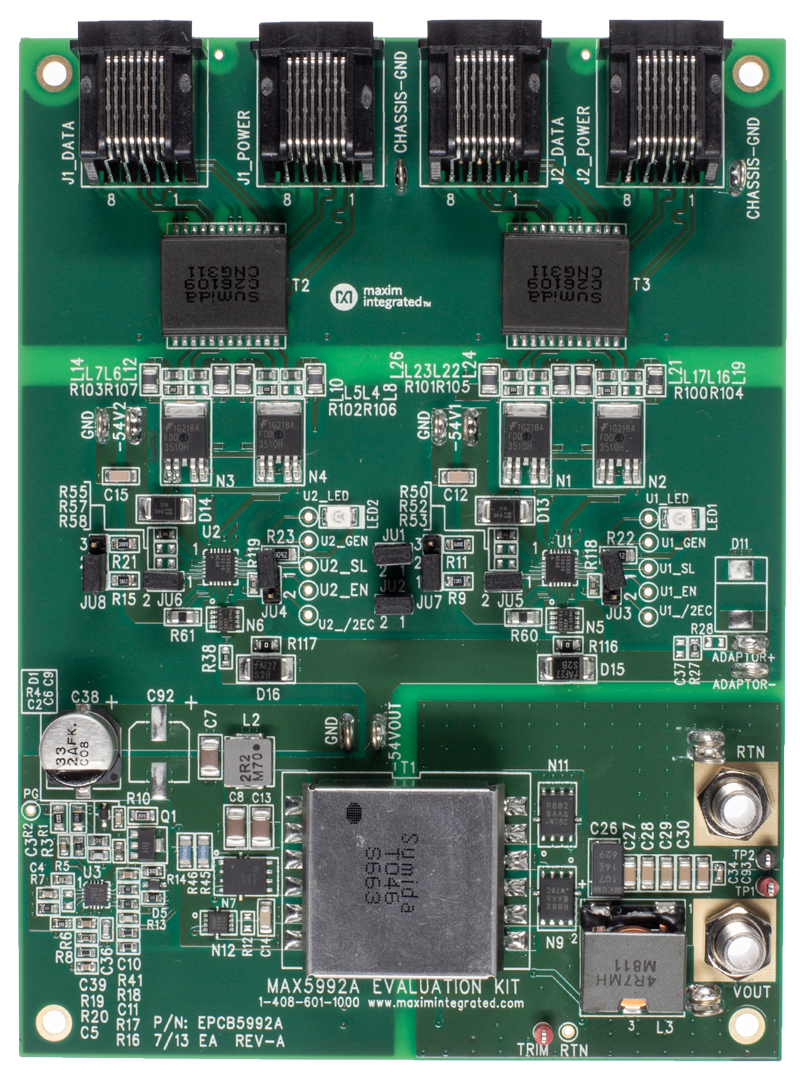

The MAX5992A/B evaluation kit (EV kit) is a fully assembled and tested surface-mount circuit board featuring the MAX5992A/B IEEE® 802.3af/at-compliant network powered device (PD) interface controller IC, which pro vides PD detection signature, PD classification signature, inrush current control, undervoltage lockout (UVLO), and active FET-bridge driver. The EV kit is a compact and low-cost design used in power-over-Ethernet (PoE) applications requiring DC power from an Ethernet network port for PDs, such as fiber-to-the-femotocell/ picocell/microcell, fiber-to-the-home/fiber-to-the-building (FTTH/FTTB), IP phones, wireless access nodes, and security cameras.

The EV kit features a 2x2P PD or multi-PD redundancy configuration using the ICs. The 2x2P powers a galvanically isolated 100W, 250kHz switching-frequency, activeclamped, synchronous-rectified forward DC-DC converter using the MAX5974D. The device circuit achieves high efficiency by using a forward DC-DC converter topology. The surface-mount transformer provides up to +1500V galvanic isolation for the output. The EV kit output voltage is configured for +12V and provides up to 8.4A load current.

Note: In the multi-PD redundancy mode, the total output power must be reduced to 50W, which is limited by the LAN transformer on board. Its port current must be limited to 1.2A per 2 pair.

The EV kit circuit receives its power from IEEE 802.3af/ at-compliant power-sourcing equipment (PSE). The PSE provides the required -44V to -57V DC power over a twisted-pair Ethernet network cable to the EV kit’s RJ45 connectors. The EV kit features an active FET bridge for separating the DC power provided by an end-span or mid-span Ethernet system
