MAX5854

PRODUCTION

Dual, 10-Bit, 165Msps, Current-Output DAC

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $11.34

Viewing:

Overview

10-Bit, 165Msps Dual DAC
Low Power
- 190mW with I_FS = 20mA at f_CLK = 165MHz
2.7V to 3.6V Single Supply
Full Output Swing and Dynamic Performance at 2.7V Supply
Superior Dynamic Performance
- 73dBc SFDR at f_OUT = 40MHz
- UMTS ACLR = 65.5dB at f_OUT = 30.7MHz
Programmable Channel Gain Matching
Integrated 1.24V Low-Noise Bandgap Reference
Single-Resistor Gain Control
Interleaved Data Mode
Single-Ended and Differential Clock Input Modes
Miniature 40-Pin TQFN Package, 6mm x 6mm
EV Kit Available—MAX5854 EV Kit

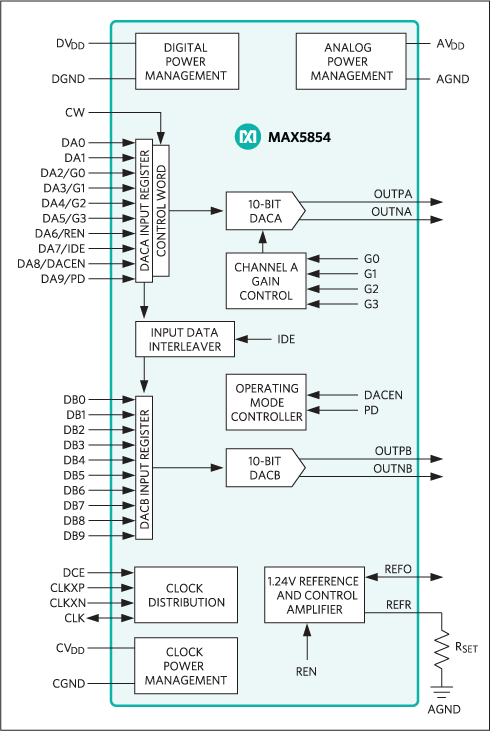

The MAX5854 dual, 10-bit, 165Msps digital-to-analog converter (DAC) provides superior dynamic performance in wideband communication systems. The device integrates two 10-bit DAC cores, and a 1.24V reference. The MAX5854 supports single-ended and differential modes of operation. The dynamic performance is maintained over the entire 2.7V to 3.6V power-supply operating range. The analog outputs support a -1.0V to +1.25V compliance voltage.

The MAX5854 can operate in interleaved data mode to reduce the I/O pin count. This allows the converter to be updated on a single, 10-bit bus.

The MAX5854 features digital control of channel gain matching to within ±0.4dB in sixteen 0.05dB steps. Channel matching improves sideband suppression in analog quadrature modulation applications. The on-chip 1.24V bandgap reference includes a control amplifier that allows external full-scale adjustments of both channels through a single resistor. The internal reference can be disabled and an external reference can be applied for high-accuracy applications.

The MAX5854 features full-scale current outputs of 2mA to 20mA and operates from a 2.7V to 3.6V single supply. The DAC supports three modes of power-control operation: normal, low-power standby, and complete power-down. In power-down mode, the operating current is reduced to 1µA.

The MAX5854 is packaged in a 40-pin TQFN with exposed paddle (EP) and is specified for the extended (-40°C to +85°C) temperature range.

Pin-compatible, lower speed, and lower resolution versions are also available. Refer to the MAX5853 (10-bit, 80Msps), the MAX5852 (8-bit, 165Msps), and the MAX5851 (8-bit, 80Msps) data sheets for more information. See Table 4 at the end of the data sheet.

Applications

Communications
Direct Digital Synthesis (DDS)
Instrumentation/ATE
Point-to-Point Microwave Links
Quadrature Modulation
SatCom, LMDS, MMDS, HFC, DSL, WLAN,
Wireless Base Stations

Part Models: 2
1ku List Price: Starting From $11.34

Documentation

Data Sheet 1

MAX5854: Dual, 10-Bit, 165Msps, Current-Output DAC Data Sheet (Rev.0) 02/17/2004

Reliability Data 1

MAX5854 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX5854ETL+	40-LFCSP-6X6X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX5854ETL+T	40-LFCSP-6X6X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX5854 and MAX5853

Buy Now View Details

Features and Benefits

Fast Evaluation and Performance Testing
CMOS Compatible
SMA Coaxial Connectors for Clock Inputs, Clock Output, and Analog Output
50Ω Matched Clock Input and Analog Output Signal Lines
Single-Ended to Differential Clock Signal-Conversion Circuitry
Differential Current Output to Single-Ended Voltage Signal Output Conversion Circuitry
Full-Scale Current Output Configured for 20mA
Fully Assembled and Tested
Also Evaluates the 80Msps MAX5853

Product Details

The MAX5854 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains all the components necessary to evaluate the performance of the MAX5854 digital-to-analog converter (DAC). The MAX5854 is a dual, 10-bit parallel, 165Msps DAC that integrates a 1.24V voltage reference and provides a differential current output. The EV kit operates with CMOS-compatible data inputs, a differential or single-ended clock input, and 3V power supplies for simple board operation.

The MAX5854 EV kit can also be used to evaluate the MAX5853 (80Msps) DAC.
