  5. MAX5853


Overview

Features and Benefits

  • 10-Bit, 80Msps Dual DAC
  • Low Power
    • 77mW with IFS = 5mA at fCLK = 80MHz
  • 2.7V to 3.6V Single Supply
  • Full Output Swing and Dynamic Performance at 2.7V Supply
  • Superior Dynamic Performance
    • 78dBc SFDR at fOUT = 20MHz
  • Programmable Channel Gain Matching
  • Integrated 1.24V Low-Noise Bandgap Reference
  • Single-Resistor Gain Control
  • Interleaved Data Mode
  • Single-Ended and Differential Clock Input Modes
  • Miniature 40-Pin Thin QFN Package, 6mm x 6mm
  • EV Kit Available MAX5854 EV Kit

Product Details

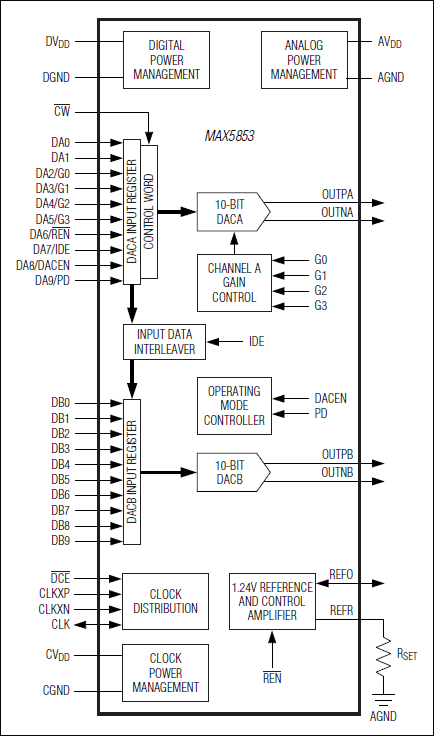

The MAX5853 dual, 10-bit, 80Msps digital-to-analog converter (DAC) provides superior dynamic performance in wideband communication systems. The device integrates two 10-bit DAC cores, and a 1.24V reference. The converter supports single-ended and differential modes of operation. The MAX5853 dynamic performance is maintained over the entire 2.7V to 3.6V power-supply operating range. The analog outputs support a -1.0V to +1.25V compliance voltage.

The MAX5853 can also operate in interleave data mode to reduce the I/O pin count. This allows the converter to be updated on a single, 10-bit bus.

The MAX5853 features digital control of channel gain matching to within ±0.4dB in sixteen 0.05dB steps. Channel matching improves sideband suppression in analog quadrature modulation applications. The on-chip 1.24V bandgap reference includes a control amplifier that allows external full-scale adjustments of both channels through a single resistor. The internal reference can be disabled and an external reference may be applied for high-accuracy applications.

The MAX5853 features full-scale current outputs of 2mA to 20mA and operates from a 2.7V to 3.6V single supply. The DAC supports three modes of power-control operation: normal, low-power standby, and complete power-down. In power-down mode, the operating current is reduced to 1µA.

The MAX5853 is packaged in a 40-pin thin QFN with exposed paddle (EP) and is specified for the extended (-40°C to +85°C) temperature range.

Pin-compatible, higher speed, and lower resolution versions are also available. Refer to the MAX5854 (10-bit, 165Msps), the MAX5852 (8-bit, 165Msps), and the MAX5851 (8-bit, 80Msps) data sheets for more information. See Table 4 at the end of the data sheet.

Applications

  • Communications SatCom, LMDS, MMDS, HFC, DSL, WLAN, Point-to-Point Microwave Links
  • Direct Digital Synthesis (DDS)
  • Instrumentation/ATE
  • Quadrature Modulation
  • Wireless Base Stations
