  6. MAX5812


Features and Benefits

  • Ultra-Low Supply Current
    • 100µA at VDD = 3.6V
    • 130µA at VDD= 5.5V
  • 300nA Low-Power Power-Down Mode
  • Single 2.7V to 5.5V Supply Voltage
  • Fast 400kHz I²C-Compatible 2-Wire Serial Interface
  • Schmitt-Trigger Inputs for Direct Interfacing to Optocouplers
  • Rail-to-Rail Output Buffer Amplifier
  • Three Software-Selectable Power-Down Output Impedances
    • 100kΩ, 1kΩ, and High Impedance
  • Read-Back Mode for Bus and Data Checking
  • Power-On Reset to Zero
  • Miniature 6-Pin SOT23 Package

Product Details

The MAX5812 is a single, 12-bit voltage-output, digital-to-analog converter (DAC) with an I²C-compatible 2-wire interface that operates at clock rates up to 400kHz. The device operates from a single 2.7V to 5.5V supply and draws only 100µA at VDD = 3.6V. A low-power power-down mode decreases current consumption to less than 1µA. The MAX5812 features three software-selectable power-down output impedances: 100kΩ, 1kΩ, and high impedance. Other features include an internal precision rail-to-rail output buffer and a power-on reset circuit that powers up the DAC in the 100kΩ power-down mode.

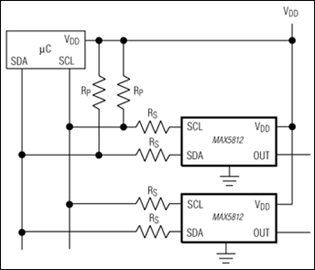

The MAX5812 features a double-buffered I²C-compatible serial interface that allows multiple devices to share a single bus. All logic inputs are CMOS-logic compatible and buffered with Schmitt triggers, allowing direct interfacing to optocoupled and transformer-isolated interfaces. The MAX5812 minimizes digital noise feedthrough by disconnecting the clock (SCL) signal from the rest of the device when an address mismatch is detected. The MAX5812 is specified over the extended temperature range of -40°C to +85°C and is available in a space-saving 6-pin SOT23 package. Refer to the MAX5811 for the 10-bit version.


  • Battery-Powered Applications
  • Digital Gain and Offset Control
  • Low-Cost Instrumentation
  • Programmable Attenuators
  • Programmable Voltage and Current Sources
  • VCO/Varactor Diode Control

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX5812LEUT+ Material Declaration Reliability Data 6-SOT_23-N/A
MAX5812LEUT+T Material Declaration Reliability Data 6-SOT_23-N/A
MAX5812MEUT+ Material Declaration Reliability Data 6-SOT_23-N/A
MAX5812MEUT+T Material Declaration Reliability Data 6-SOT_23-N/A
Wafer Fabrication Data MAX5812 Reliability Data
