MAX5811
10-Bit, Low-Power, 2-Wire Interface, Serial, Voltage-Output DAC
Ultra-Low Power, Tiny SOT23 I²C Interface 10- and 12-Bit DACs
Top
Overview
Features and Benefits
- Ultra-Low Supply Current
- 100µA at VDD = 3.6V
- 130µA at VDD = 5.5V
- 300nA Low-Power Power-Down Mode
- Single 2.7V to 5.5V Supply Voltage
- Fast 400kHz I²C-Compatible 2-Wire Serial Interface
- Schmitt-Trigger Inputs for Direct Interfacing to Optocouplers
- Rail-to-Rail Output Buffer Amplifier
- Three Software-Selectable Power-Down Output Impedances
- 100kΩ, 1kΩ, and High Impedance
- Read-Back Mode for Bus and Data Checking
- Power-On Reset to Zero
- Miniature 6-Pin SOT23 Package
Product Details
The MAX5811 is a single, 10-bit voltage-output digital-to-analog converter (DAC) with an I²C-compatible 2-wire interface that operates at clock rates up to 400kHz. The device operates from a single 2.7V to 5.5V supply and draws only 100µA at VDD = 3.6V. A low-power power-down mode decreases current consumption to less than 1µA. The MAX5811 features three software-selectable power-down output impedances: 100kΩ, 1kΩ, and high impedance. Other features include an internal precision Rail-to-Rail output buffer and a power-on reset (POR) circuit that powers up the DAC in the 100kΩ power-down mode.

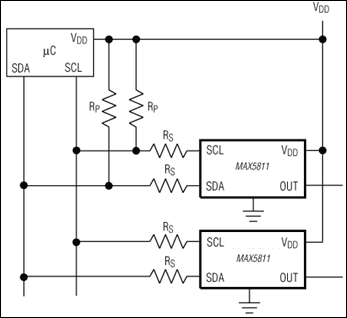

The MAX5811 features a double-buffered I²C-compatible serial interface that allows multiple devices to share a single bus. All logic inputs are CMOS-logic compatible and buffered with Schmitt triggers, allowing direct interfacing to optocoupled and transformer-isolated interfaces. The MAX5811 minimizes digital noise feedthrough by disconnecting the clock (SCL) signal from the rest of the device when an address mismatch is detected. The MAX5811 is specified over the extended temperature range of -40°C to +85°C and is available in a space-saving 6-pin SOT23 package. Refer to the MAX5812 data sheet for the 12-bit version.
Applications
- Battery-Powered Applications
- Digital Gain and Offset Control
- Low-Cost Instrumentation
- Programmable Attenuators
- Programmable Voltage and Current Sources
- VCO/Varactor Diode Control
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
