MAX5527

64-Tap, One-Time Programmable, Linear-Taper Digital Potentiometers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $1.02
Features
  • Wiper Position Stored After One-Time Fuse Programming
  • 64 Tap Positions
  • Wiper Position Programmed Through Simple 2-Wire Up/Down Interface
  • 35ppm/°C End-to-End Temperature Coefficient
  • 5ppm/°C Ratiometric Temperature Coefficient
  • Ultra-Low 1.5µA (max) Static Supply Current
  • +2.7V to +5.5V Single-Supply Operation
  • 10kΩ, 50kΩ, and 100kΩ End-to-End Resistances

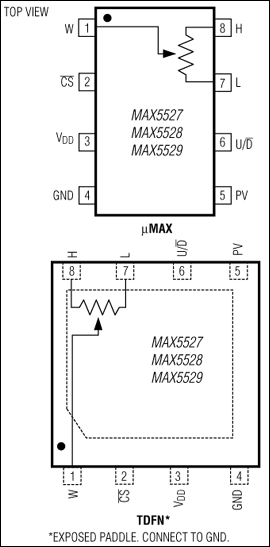

  • Tiny, 3mm x 3mm, 8-Pin TDFN and 5mm x 3mm, 8-Pin µMAX Packages
  • EV Kit Available
Additional Details
show more Icon

The MAX5527/MAX5528/MAX5529 linear-taper digital potentiometers perform the same function as mechanical potentiometers, replacing the mechanics with a simple 2-wire up/down digital interface. These digital potentiometers provide an optional one-time programmable feature that sets the power-on reset position of the wiper. Once the wiper position is programmed, the 2-wire interface can be disabled to prevent unwanted adjustment.

The MAX5527/MAX5528/MAX5529 provide an end-to-end resistance of 100kΩ, 50kΩ, and 10kΩ, respectively. The devices feature low temperature coefficients of 35ppm/°C end-to-end and 5ppm/°C ratiometric. All devices offer 64 wiper positions and operate from a single +2.7V to +5.5V supply. An ultra-low, 0.25µA (typ) standby supply current saves power in battery-operated applications.

The MAX5527/MAX5528/MAX5529 are available in 3mm x 3mm, 8-pin TDFN and 5mm x 3mm, 8-pin µMAX® packages. Each device is guaranteed over the -40°C to +105°C temperature range.

Applications

  • Mechanical Potentiometer Replacements
  • Products Using One-Time Factory Calibration
Part Models 4
1ku List Price Starting From $1.02

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX5527GTA+
  • HTML
  • HTML
MAX5527GTA+T
  • HTML
  • HTML
MAX5527GUA+
  • HTML
  • HTML
MAX5527GUA+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 20, 2016

- 1612

ASSEMBLY

MAX5527GTA+T

LAST TIME BUY

Sep 19, 2018

- 1753N

ASSEMBLY

MAX5527GUA+

PRODUCTION

MAX5527GUA+T

PRODUCTION

Jan 9, 2015

- 1481

WAFER FAB

MAX5527GUA+

PRODUCTION

MAX5527GUA+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 20, 2016

- 1612

arrow down

ASSEMBLY

MAX5527GTA+T

LAST TIME BUY

Sep 19, 2018

- 1753N

arrow down

ASSEMBLY

MAX5527GUA+

PRODUCTION

MAX5527GUA+T

PRODUCTION

Jan 9, 2015

- 1481

arrow down

WAFER FAB

MAX5527GUA+

PRODUCTION

MAX5527GUA+T

PRODUCTION

Evaluation Kit

Evaluation Kits 1

MAX5527EVKIT

Evaluation Kit for the MAX5527

zoom

MAX5527EVKIT

Evaluation Kit for the MAX5527

Evaluation Kit for the MAX5527

Features and Benefits

  • On-Board 8-Pin µMAX Socket
  • Windows 98/2000/XP Evaluation Software
  • Software Adjusts and Programs Wiper Position
  • Fully Assembled and Tested

Product Detail

The MAX5527 evaluation kit (EV kit) is a fully assembled and tested surface-mount circuit board that evaluates the digital potentiometer. Included software generates the required signals for one-time-programmable (OTP) operation and allows easy control of the wiper position. An on-board 8-pin µMAX® socket eases replacement of the device. The EV kit connects to a standard IBM-compatible PC parallel (printer) port.

Windows® 98/2000/XP-compatible software provides a user-friendly interface to exercise the MAX5527's features. The program is menu driven and offers a graphic user interface.

This EV kit can also be used to evaluate the MAX5528 and MAX5529 digital potentiometers.

Applications

  • Mechanical Potentiometer Replacements
  • Products Using One-Time Factory Calibration
