MAX5426

Precision Resistor Network for Programmable Instrumentation Amplifiers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $5.06
Features
  • Differential Gains: AV = 1, 2, 4, 8
  • Gain Accurate to 0.025%, 0.09%, or 0.5%
  • Dual Supply ±5V to ±15V Operation
  • Low 36µA Supply Current
  • Simple CMOS/TTL Logic Compatible 2-Wire Parallel Interface
  • Space-Saving 14-Pin TSSOP Package (6.4mm x 5mm)
  • OFFSET Pin Available to Offset the Output of the Differential Amplifier
Additional Details
show more Icon

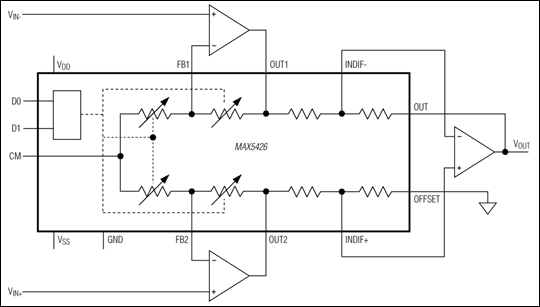

The MAX5426 is a precision resistor network optimized for use with programmable instrumentation amplifiers. The MAX5426 operates from dual ±5V to ±15V supplies and consumes less than 40µA of supply current. Designed to be used in the traditional three op amp instrumentation amplifier topology, this device provides noninverting gains of 1, 2, 4, and 8 that are accurate to 0.025% (A-grade), 0.09% (B-grade), or 0.5% (C-grade) over the extended temperature range (-40°C to +85°C). The MAX5426 is available in the 6.4mm x 5mm 14-pin TSSOP package.

Applications

  • Gain Control in RF Power Amplifiers
  • General-Purpose Programmable Instrumentation Amplifiers
  • Precision Dual Attenuator
Part Models 5
1ku List Price Starting From $5.06

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX5426AEUD+
  • HTML
  • HTML
MAX5426BEUD+
  • HTML
  • HTML
MAX5426BEUD+T
  • HTML
  • HTML
MAX5426CEUD+
  • HTML
  • HTML
MAX5426CEUD+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 30, 2023

- 2358N

WAFER FAB

MAX5426AEUD+

LAST TIME BUY

MAX5426BEUD+

PRODUCTION

MAX5426CEUD+

PRODUCTION

MAX5426CEUD+T

PRODUCTION

Dec 11, 2018

- 1754N

ASSEMBLY

MAX5426BEUD+

PRODUCTION

MAX5426CEUD+

PRODUCTION

MAX5426CEUD+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 30, 2023

- 2358N

arrow down

WAFER FAB

MAX5426AEUD+

LAST TIME BUY

MAX5426BEUD+

PRODUCTION

MAX5426CEUD+

PRODUCTION

MAX5426CEUD+T

PRODUCTION

Dec 11, 2018

- 1754N

arrow down

ASSEMBLY

MAX5426BEUD+

PRODUCTION

MAX5426CEUD+

PRODUCTION

MAX5426CEUD+T

PRODUCTION
