  6. MAX5304


Features and Benefits

  • 10-Bit DAC with Configurable Output Amplifier
  • +5V Single-Supply Operation
  • Low Supply Current
    • 0.28mA Normal Operation
    • 2µA Shutdown Mode
  • Available in 8-Pin µMAX
  • Power-On Reset Clears DAC Output to Zero
  • Schmitt-Trigger Digital Inputs for Direct Optocoupler Interface

Product Details

The MAX5304 combines a low-power, voltage-output, 10-bit digital-to-analog converter (DAC) and a precision output amplifier in an 8-pin µMAX package. It operates from a single +5V supply, drawing less than 280µA of supply current.

The output amplifier's inverting input is available to the user, allowing specific gain configurations, remote sensing, and high output-current capability. This makes the MAX5304 ideal for a wide range of applications, including industrial process control. Other features include a software shutdown and power-on reset.

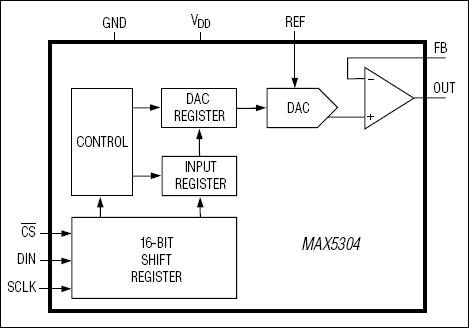

The serial interface is SPI™/QSPI™/MICROWIRE™ compatible. The DAC has a double-buffered input, organized as an input register followed by a DAC register. A 16-bit serial word loads data into the input register. The DAC register can be updated independently or simultaneously with the input register. All logic inputs are TTL/CMOS-logic compatible and buffered with Schmitt triggers to allow direct interfacing to optocouplers.


  • Digital Gain and Offset Control
  • Industrial Process Controls
  • Microprocessor-Controlled Systems
  • Portable Test Instruments
  • Remote Industrial Controls
