MAX5217

PRODUCTION

14-/16-Bit, Low-Power, Buffered Rail-to-Rail DACs with I²C Interface

Save Power and Board Space with Less than 80µA I_Q and a 3mm x 5mm, 8-Pin µMAX Package

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: Starting From $3.69

Viewing:

Overview

Low-Power Consumption (80µA, max)
18µs Settling Time
16-/14-Bit Resolution in a 3mm x 5mm, 8-Pin µMAX Package
Relative Accuracy
- ±0.4 LSB INL (MAX5215, 14 Bit) typ, 1 LSB (max)
- ±1.2 LSB INL (MAX5217, 16 Bit) typ, 4 LSB (max)
Guaranteed Monotonic Over All Operating Range
Low Gain and Offset Error
Wide 2.7V to 5.5V Supply Range
Rail-to-Rail Buffered Output Operation
Safe Power-Up-Reset to Zero DAC Output
I²C-Compatible 400kHz Serial Interface
User-Programmable Active-Low AUX Input Functions
- Active-Low CLR, Clear to 0, Midscale, or Full Scale
- Active-Low LDAC, Asynchronous Load DAC
256kΩ Reference Input Resistance for Low Power Operation
Buffered Voltage Output Directly Drives 10kΩ Loads
Output Power-Down Terminated with 1kΩ or 100kΩ to Ground or Left High-Impedance

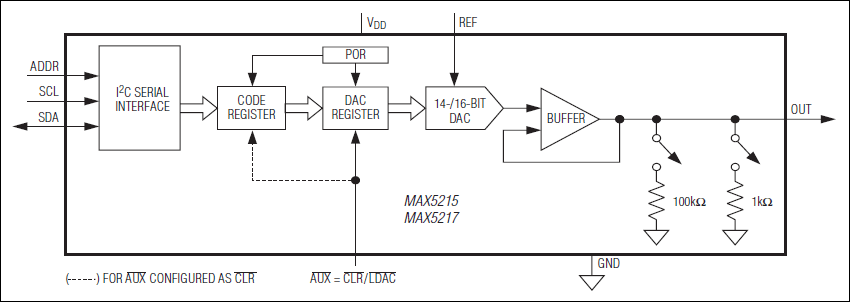

The MAX5215/MAX5217 are pin-compatible 14-bit and 16-bit digital-to-analog converters (DACs). The MAX5215/MAX5217 are single-channel, low-powered, buffered voltage-output DACs. The devices use a precision external reference applied through the high resistance input for rail-to-rail operation and low system power consumption. The MAX5215/MAX5217 accept a wide 2.7V to 5.5V supply voltage range. Power consumption is extremely low to accommodate most low-power and low-voltage applications.

The MAX5215/MAX5217 have an I²C-compatible, 2-wire serial interface that operates at clock rates up to 400kHz. On power-up, the MAX5215/MAX5217 reset the DAC output to zero, providing additional safety for applications that drive valves or other transducers that need to be off on power-up. The DAC output is buffered resulting in a low supply current of 80µA (max) and a low offset error of ±0.25mV. An asynchronous active-low input, AUX, is provided. This input can be programmed to support clear or load DAC operations, independent of the serial interface. The MAX5215/MAX5217 are available in an ultra-small (3mm x 5mm), 8-pin µMAX^® package and are specified over the -40°C to +105°C extended industrial temperature range.

Applications

Automatic Test Equipment
Automatic Tuning
Communication Systems
Data Acquisition
Gain and Offset Adjustment
Portable Instrumentation
Power Amplifier Control
Process Control and Servo Loops
Programmable Voltage and Current Sources
Remote Sensing

Part Models: 3
1ku List Price: Starting From $3.69

Documentation

Data Sheet 1

MAX5215-MAX5217: 14-/16-Bit, Low-Power, Buffered Rail-to-Rail DACs with I²C Interface Data Sheet (Rev.0) 11/30/2012

Technical Articles 1

Analog ICs for Low Voltage Systems 03/23/2006

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX5217BGUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX5217GUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX5217GUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 19, 2018 - 1753N ASSEMBLY
		pcn_1753n
MAX5217BGUA+	PRODUCTION
MAX5217GUA+	PRODUCTION
MAX5217GUA+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Digital to Analog Converters (DACs) 3
MAX5216	PRODUCTION	14-/16-Bit, Low-Power, Buffered Output, Rail-to-Rail DACs with SPI Interface
MAX5214	PRODUCTION	14-/16-Bit, Low-Power, Buffered Output, Rail-to-Rail DACs with SPI Interface
MAX5318	PRODUCTION	18-Bit, High-Accuracy Voltage Output DAC with Digital Gain, Offset Control, and SPI Interface

Tools & Simulations

Software Development 1

MAX5217 16-bit DAC EV Kit Software, 1.0.0

IBIS Model 1

MAX5215/7 IBIS Model

Evaluation Kits

Evaluation Kit for the MAX5215, MAX5217, and MAX5217B

Buy Now View Details

Features and Benefits

Wide Input Supply Range: 2.7V to 5.5V
Low-Power Consumption (80µA max)
Rail-to-Rail Buffered Output
Configurable Active-Low AUX Pin for Asynchronous CLR or LDAC Operation
Selectable Output Termination: 1kΩ, 100kΩ, or High Impedance
Supports 14-Bit and 16-Bit DACs
Windows XP-, Windows Vista-, and Windows 7-Compatible Software
USB Powered (Cable Included)
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX5217 evaluation kit (EV kit) demonstrates the MAX5217, 16-bit, single-channel, low-power, buffered voltage-output DAC. The IC comes in an 8-pin µMAX® package. The EV kit provides controls to change the DAC output and power operations.

The DAC IC is controlled by an on-board MAXQ® microcontroller that provides an I²C interface. The EV kit features Windows XP®-, Windows Vista®-, and Windows® 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the device.

The EV kit comes with the MAX5217GUA+ (16-bit, ±4 LSB INL (max)) installed. Contact the factory for samples of the pin-compatible MAX5215GUA+ (14-bit, ±1 LSB INL (max)) and MAX5217BGUA+ (16-bit, ±8 LSB INL (max)) versions.
